Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Properly route the steering column anchor cable.

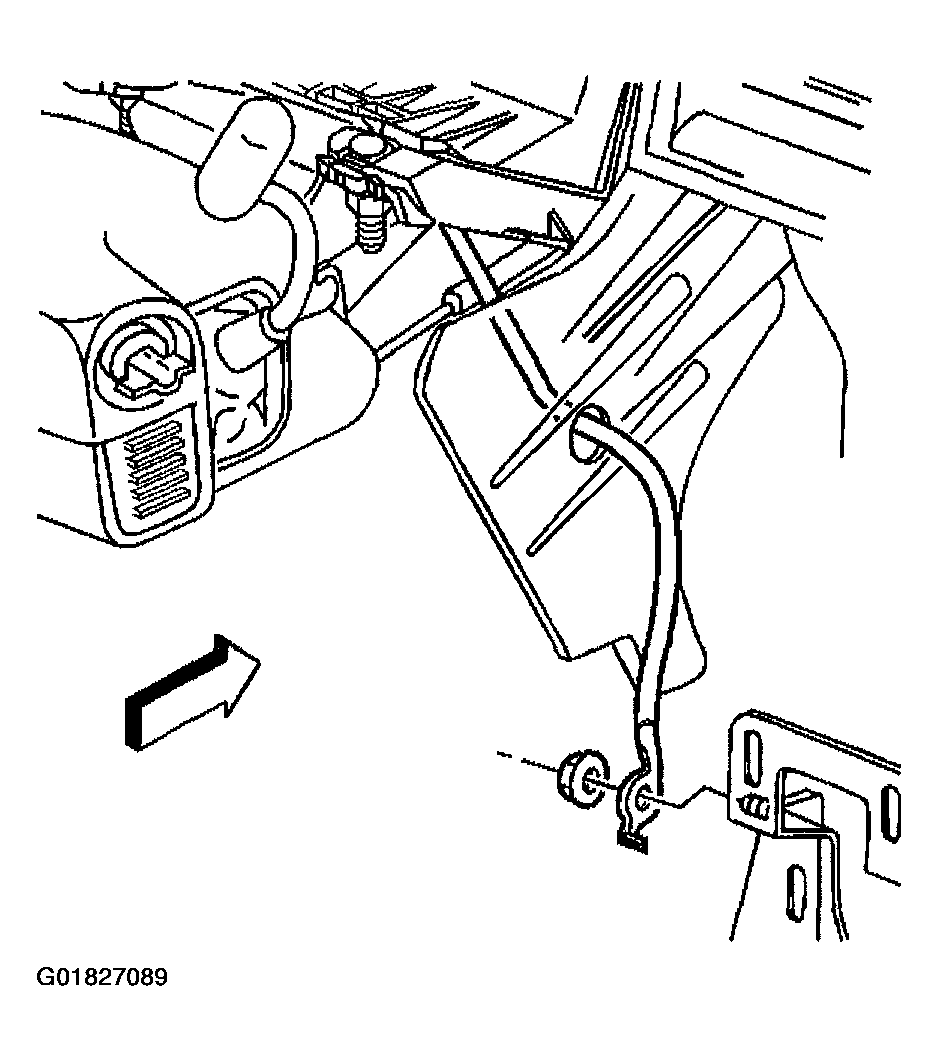

    2. Fig 1: Installing Anchor Cable To Center Console Bracket Stud
    G01827089Courtesy of GENERAL MOTORS CORP.
  2. Install the anchor cable to the center console bracket stud.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the anchor cable nut to the center console bracket stud.

    Tighten

    Tighten the nut to 10 N.m (14 lb ft).

  4. Install the steering column anchor cable end to the steering column stud.

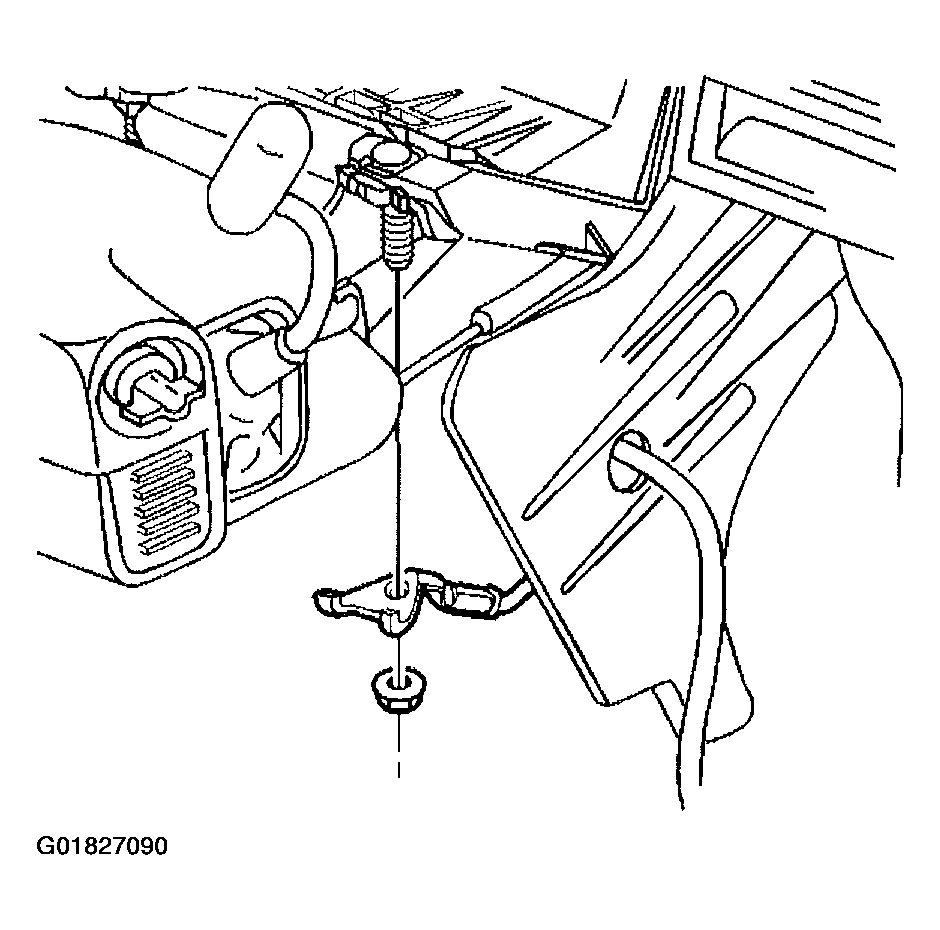

    5. Fig 2: Installing Steering Column Anchor Cable End To The Steering Column Stud
    G01827090Courtesy of GENERAL MOTORS CORP.
  5. Install the steering column nut. Refer to Steering Column Replacement .
  6. Install the center console. Refer to CONSOLE REPLACEMENT - FRONT FLOOR .
  7. Install the knee bolster. Refer to KNEE BOLSTER REPLACEMENT .
