Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the automatic transmission range selector lever.

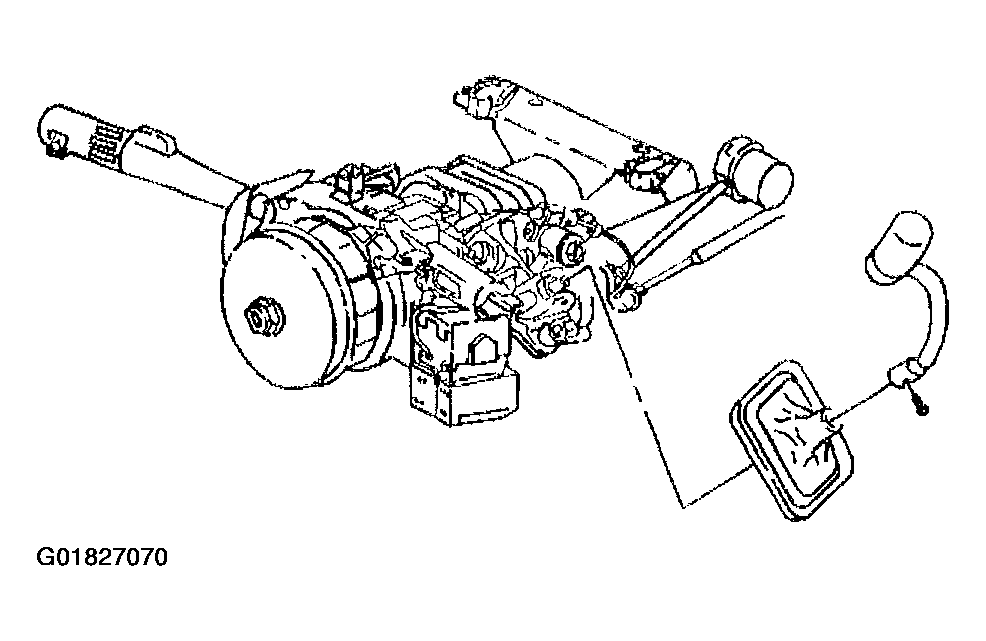

    Fig 1: Automatic Transmission Range Selector Lever
    G01827070Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the automatic transmission range selector lever screw.

    Tighten

    Tighten the automatic transmission range selector lever screw to 20 N.m (27 lb ft).

  3. Install the automatic transmission range selector lever seal.
  4. Verify that there is a positive shift gate feel in all positions.
