Linear Shift Assembly - Disassemble - Off Vehicle

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to SIR CAUTION .
  1. Disable the inflatable restraint steering wheel module. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
  2. Remove the upper and lower trim covers. Refer to STEERING COLUMN TRIM COVERS - DISASSEMBLE - Off Vehicle .
  3. Remove the shift lever assembly. Refer to SHIFT LEVER REPLACEMENT - On Vehicle .
  4. With a screwdriver carefully pry the automatic transmission shift lock control away from the steering column jacket.
    Fig 1: Automatic Transmission Shift Lock Control
    G01827130Courtesy of GENERAL MOTORS CORP.
  5. The lock cylinder should be in the OFF-LOCK position.
  6. Insert a small screwdriver into the slot on the electronic lock module assembly and push against the locking tab to remove the park lock cable assembly (1).

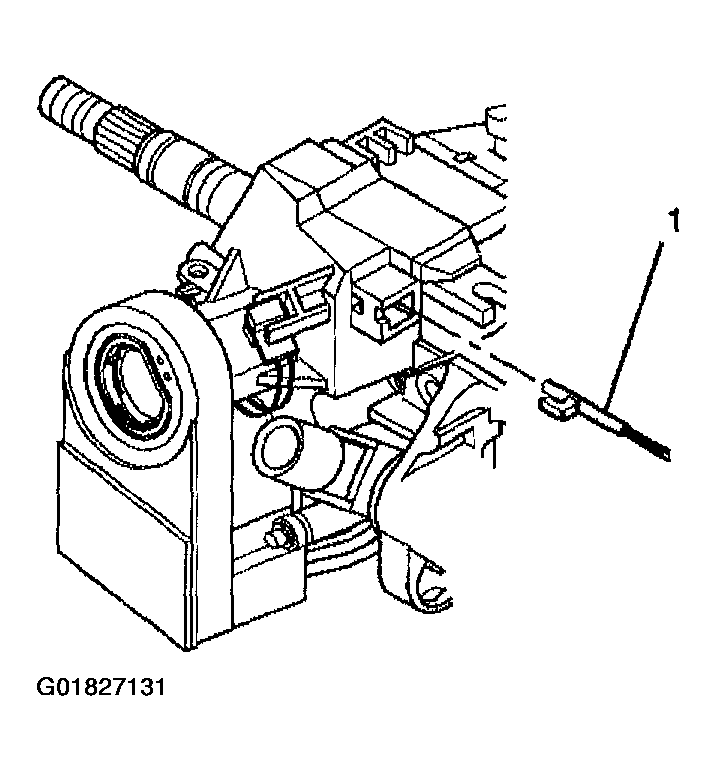

    Fig 2: Park Lock Cable Assembly
    G01827131Courtesy of GENERAL MOTORS CORP.
  7. Remove the 3 flat head 6-lobed socket tap screws from the linear shift assembly.

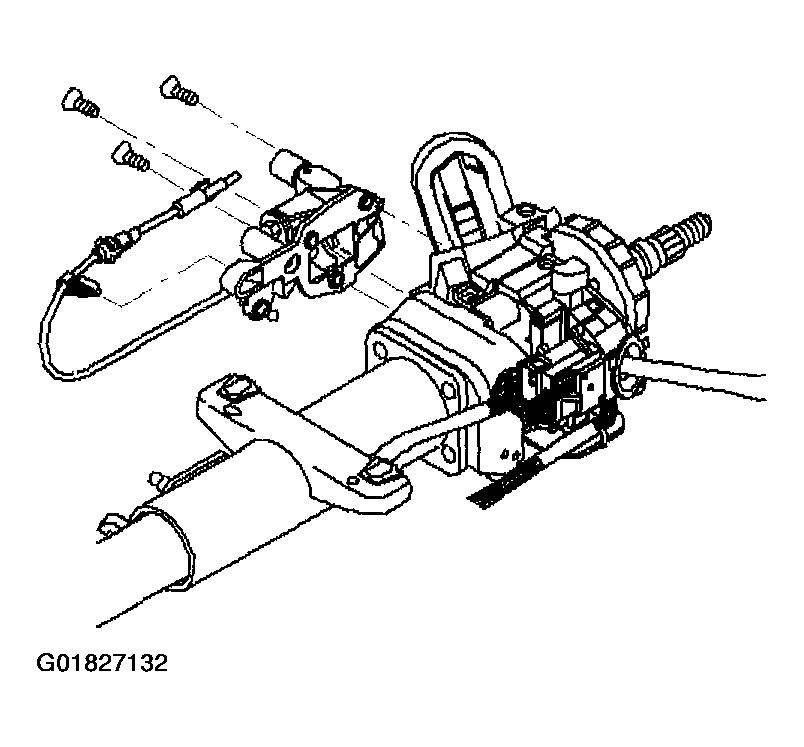

  8. Fig 3: Linear Shift Assembly
    G01827132Courtesy of GENERAL MOTORS CORP.
  9. Remove the linear shift assembly.
  10. Continue with the following steps if disassembling the linear shift assembly.
  11. Remove the hexagon flanged head bolt.
  12. Remove the ball and actuator assembly (2).
  13. Remove the shift lever clevis (1).
    Fig 4: Ball & Actuator Assembly & Shift Lever Clevis
    G01827133Courtesy of GENERAL MOTORS CORP.
  14. Remove the 2 oval head 6-lobed socket tap screws from the shift gate.

    Remove the park lock cable assembly.

    Fig 5: Park Lock Cable Assembly At Shift Gate
    G01827134Courtesy of GENERAL MOTORS CORP.
  15. Remove the hexagon flange head bolt.
  16. Remove the cable shift cam assembly (1).
  17. Remove the cam bushing (2) from the cable shift cam assembly (1).

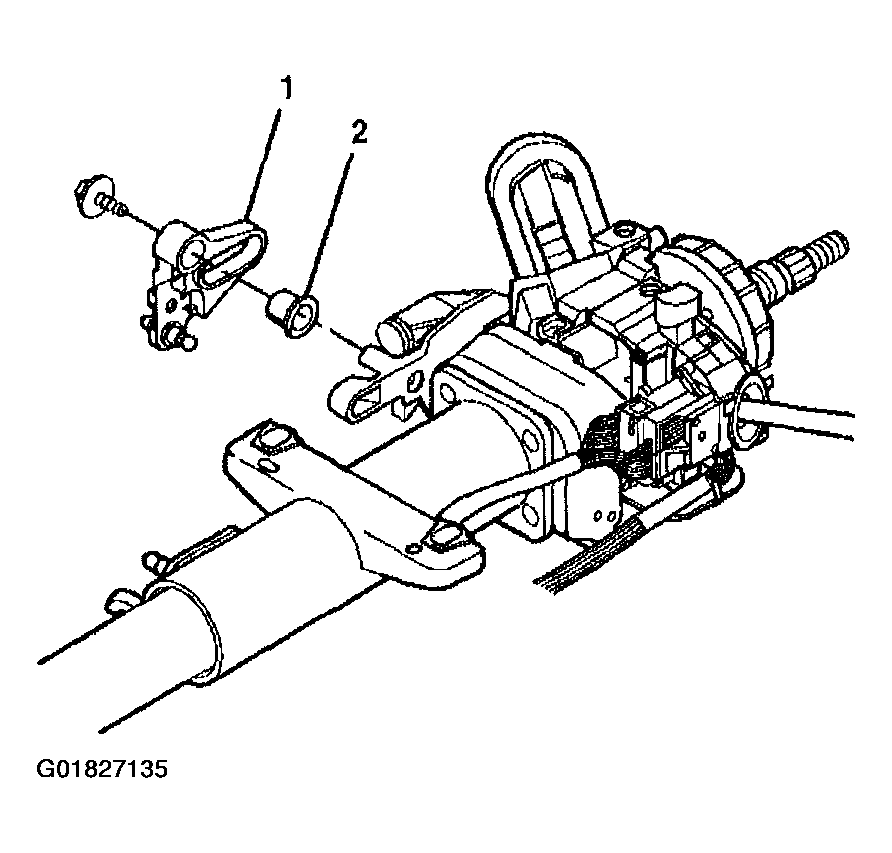

    Fig 6: Cable Shift Cam Assembly
    G01827135Courtesy of GENERAL MOTORS CORP.
  18. Remove the 3 flat head 6-lobed socket tap screws.
  19. Remove the linear shift bracket assembly.
    Fig 7: Linear Shift Bracket Assembly
    G01827136Courtesy of GENERAL MOTORS CORP.
