Inflatable Restraint Steering Wheel Module Coil - Disassemble - Off Vehicle

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to SIR CAUTION .
  1. Disable the inflatable restraint steering wheel module. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
  2. Remove the upper and lower trim covers. Refer to STEERING COLUMN TRIM COVERS - DISASSEMBLE - Off Vehicle .

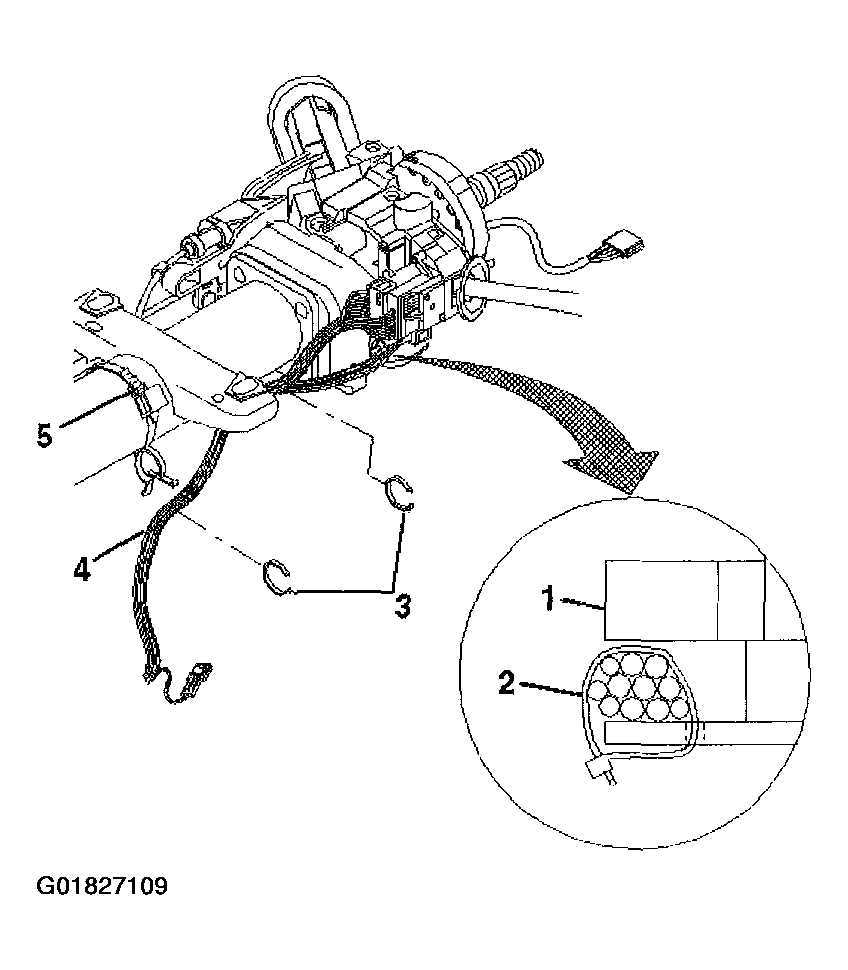

    3. Fig 1: Upper Tilt Head Components
    G01827109Courtesy of GENERAL MOTORS CORP.
  3. Remove the wire harness assembly (4) from the wire harness strap (5).
  4. Remove the wire harness straps (3) from the wire harness assembly (4).
  5. Remove the wire harness strap (2) from the upper tilt head assembly (1).

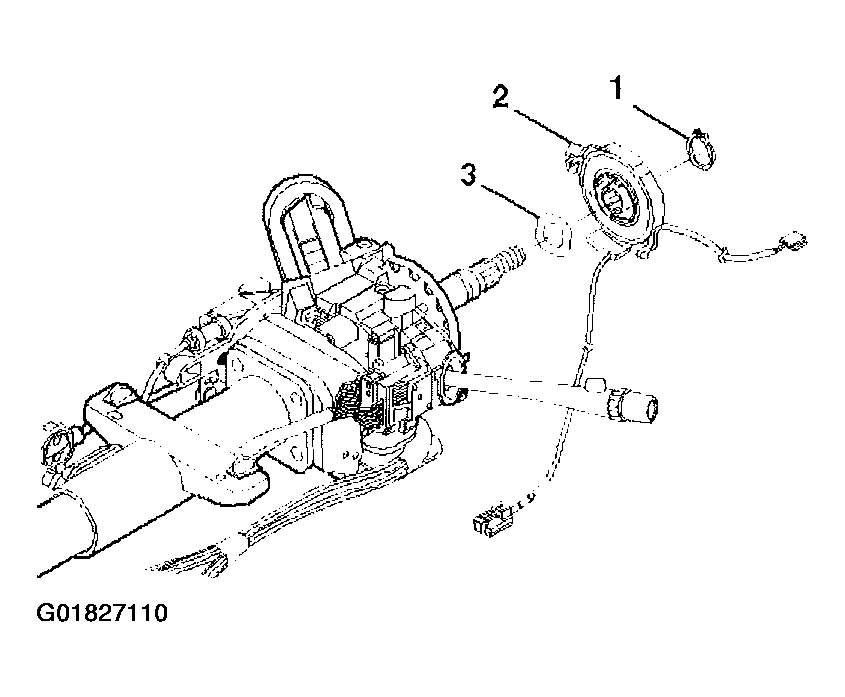

    6. Fig 2: Inflatable Restraint Steering Wheel Module Coil Components
    G01827110Courtesy of GENERAL MOTORS CORP.
  6. Remove the retaining ring (1).
  7. Remove the inflatable restraint steering wheel module coil (2).
  8. Remove the wave washer (3).
