Ignition and Key Alarm Switch Assembly - Disassemble - Off Vehicle

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to SIR CAUTION .
  1. Disable the inflatable restraint steering wheel module. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
  2. Remove the upper and lower trim covers. Refer to STEERING COLUMN TRIM COVERS - DISASSEMBLE - Off Vehicle .

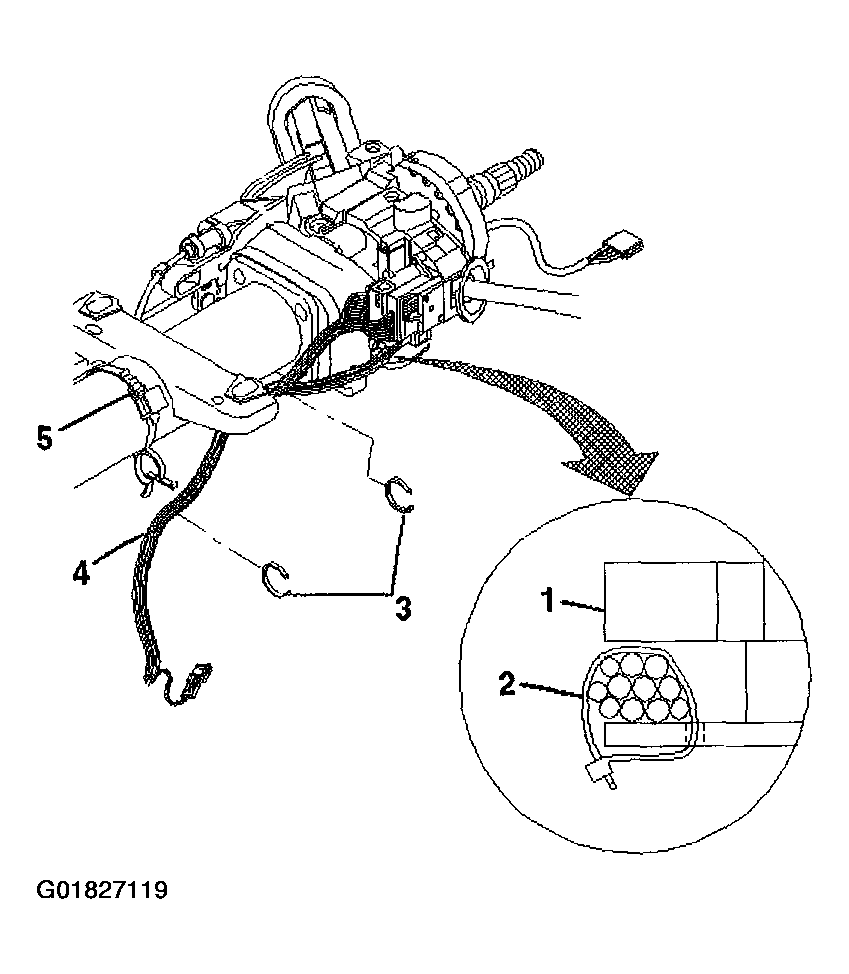

    3. Fig 1: Upper Tilt Head Assembly
    G01827119Courtesy of GENERAL MOTORS CORP.
  3. Remove the wire harness assembly (4) from the wire harness strap (5).
  4. Remove the wire harness straps (3) from the wire harness assembly (4).
  5. Remove the wire harness strap (2) from the upper tilt head assembly (1).
  6. Slide the turn signal switch assembly connectors (2) out from the bulkhead connector (1).

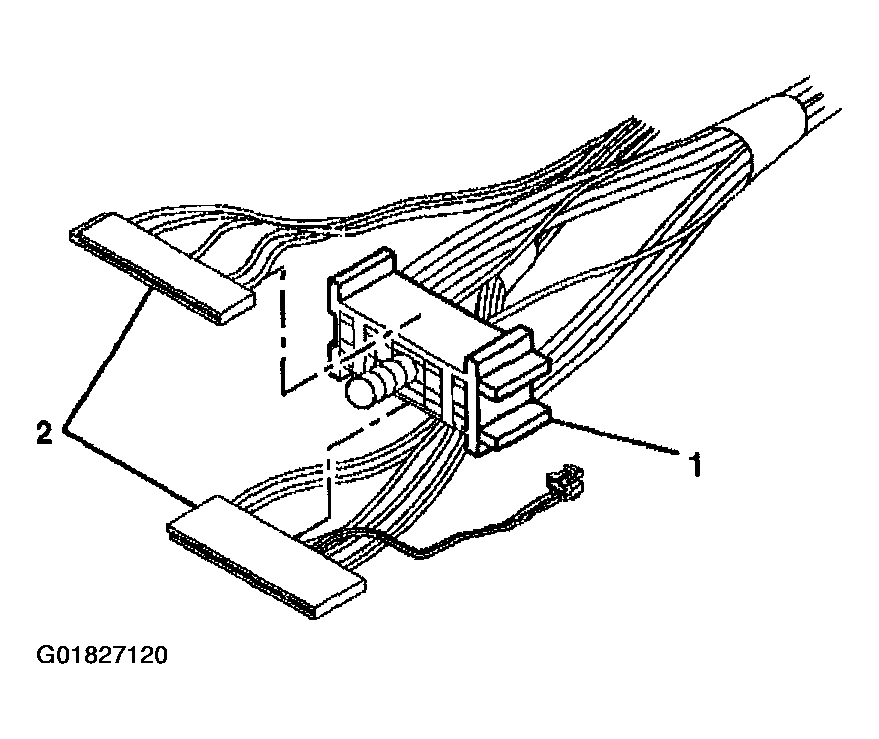

    Fig 2: Bulkhead Connector
    G01827120Courtesy of GENERAL MOTORS CORP.
  7. Pull the PASSKEY® Mil (2) off of the electronic lock module assembly (1).

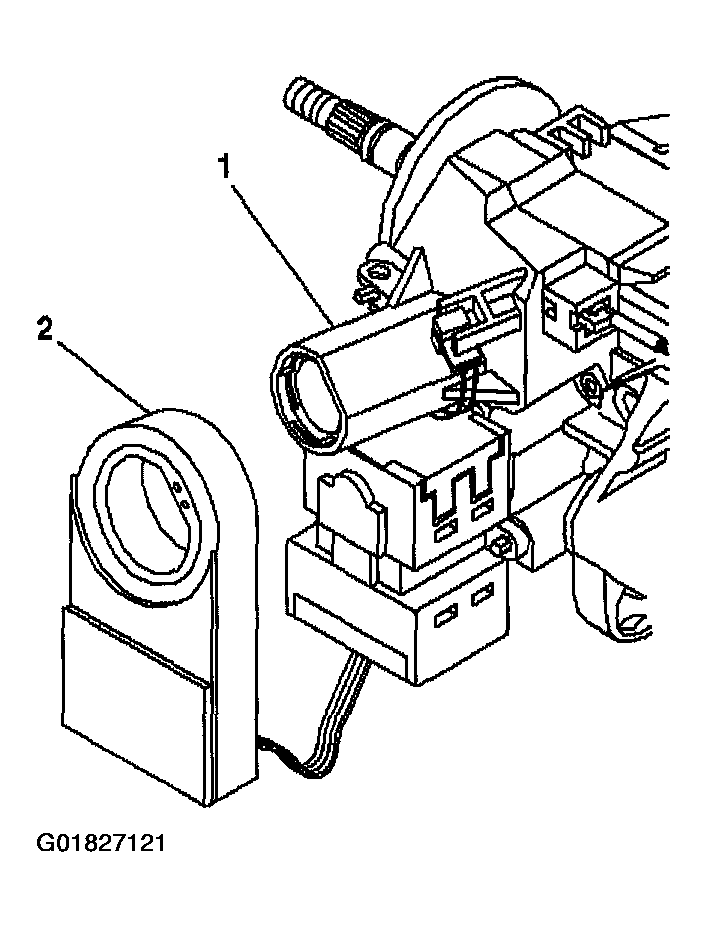

    Fig 3: Electronic Lock Module Assembly
    G01827121Courtesy of GENERAL MOTORS CORP.
  8. Remove the key alarm connector (1) from the electronic lock module assembly (2).
  9. Remove the 2 tapping screws from the ignition key alarm switch assembly (3).

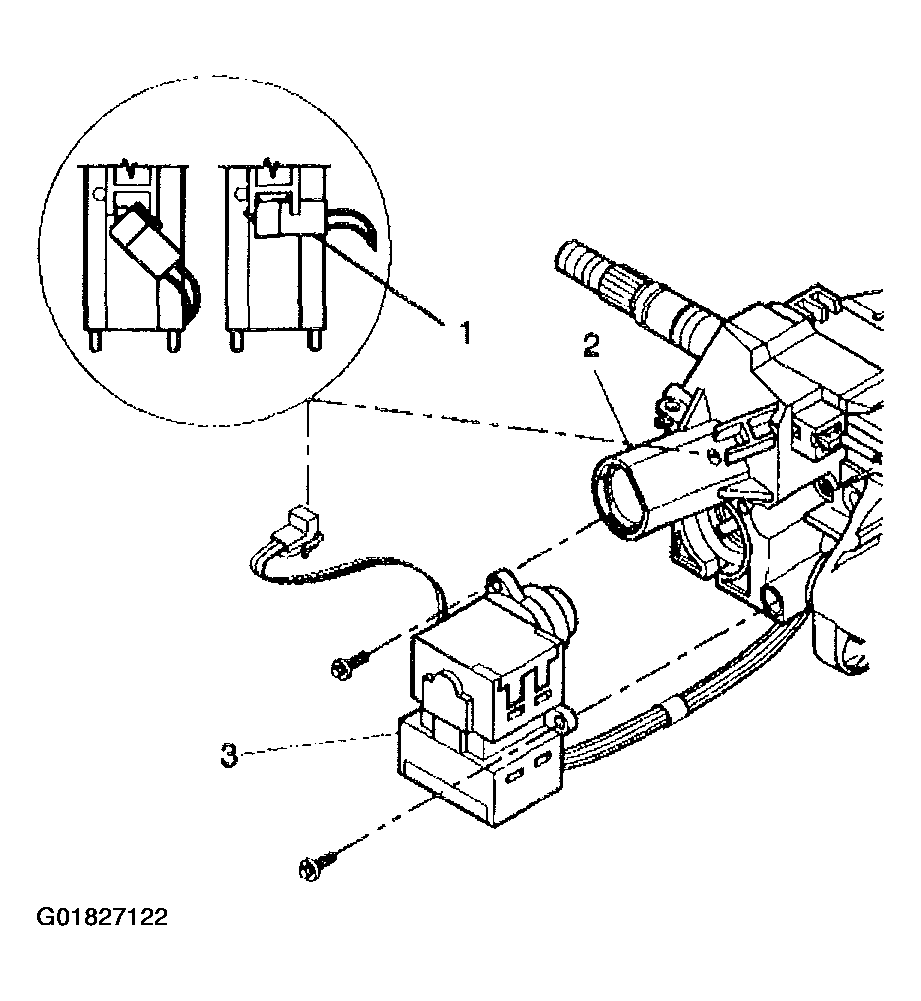

    Fig 4: Ignition Key Alarm Switch Assembly
    G01827122Courtesy of GENERAL MOTORS CORP.
