Ignition and Key Alarm Switch Assembly - Assemble - Off Vehicle

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to FASTENER NOTICE .

Install the ignition and key alarm switch assembly (3) onto the electronic lock module assembly (2) and secure by using the 2 tapping screws.
Tighten

Tighten the screws to 4.7 N.m (42 lb in).
Install the key alarm connector (1) into the electronic lock module assembly (2).

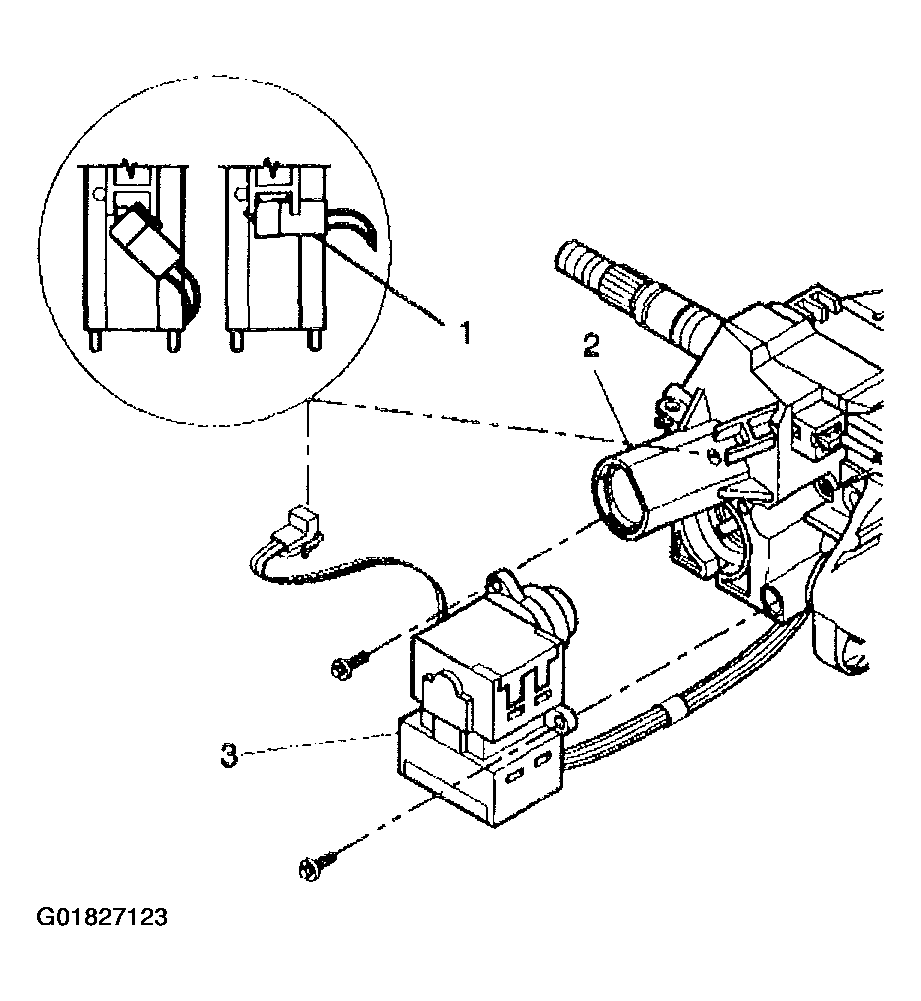

Fig 1: Ignition Key Alarm Switch Assembly
Courtesy of GENERAL MOTORS CORP.
Slide the PASSKEY® III (2) onto the electronic lock module assembly (1).

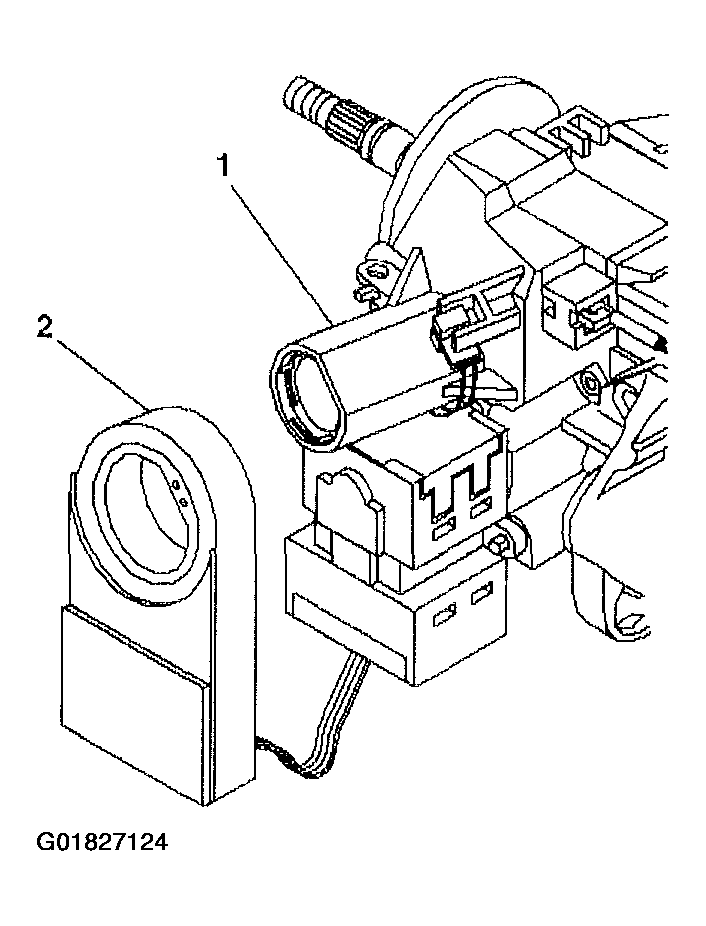

Fig 2: Electronic Lock Module Assembly
Courtesy of GENERAL MOTORS CORP.
Slide the turn signal switch assembly connectors (2) to the bulkhead connector (1).

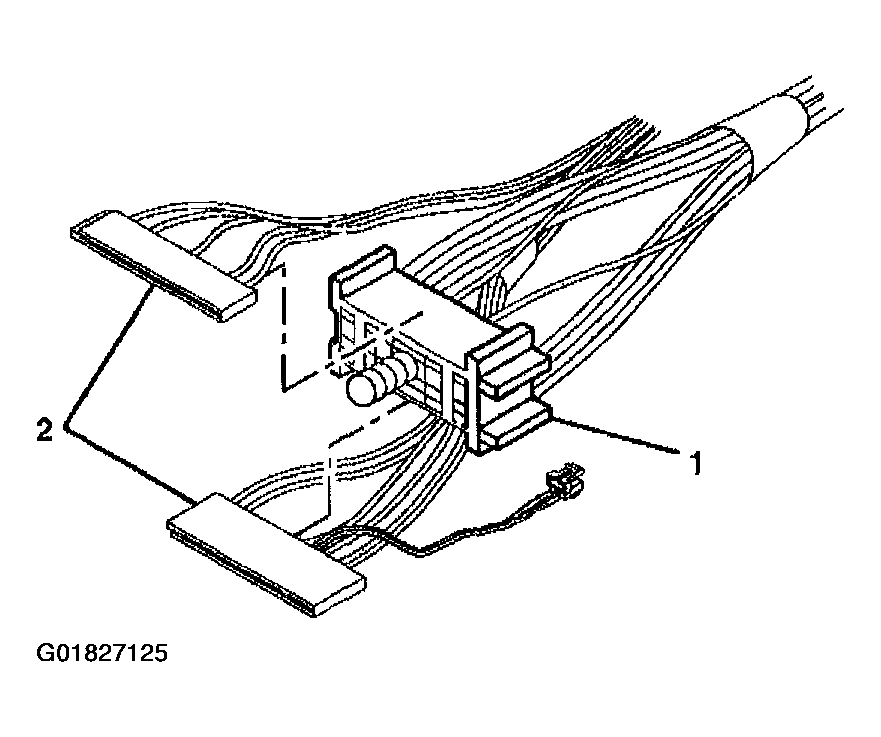

Fig 3: Bulkhead Connector
Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to SIR INFLATOR MODULE COIL CAUTION .

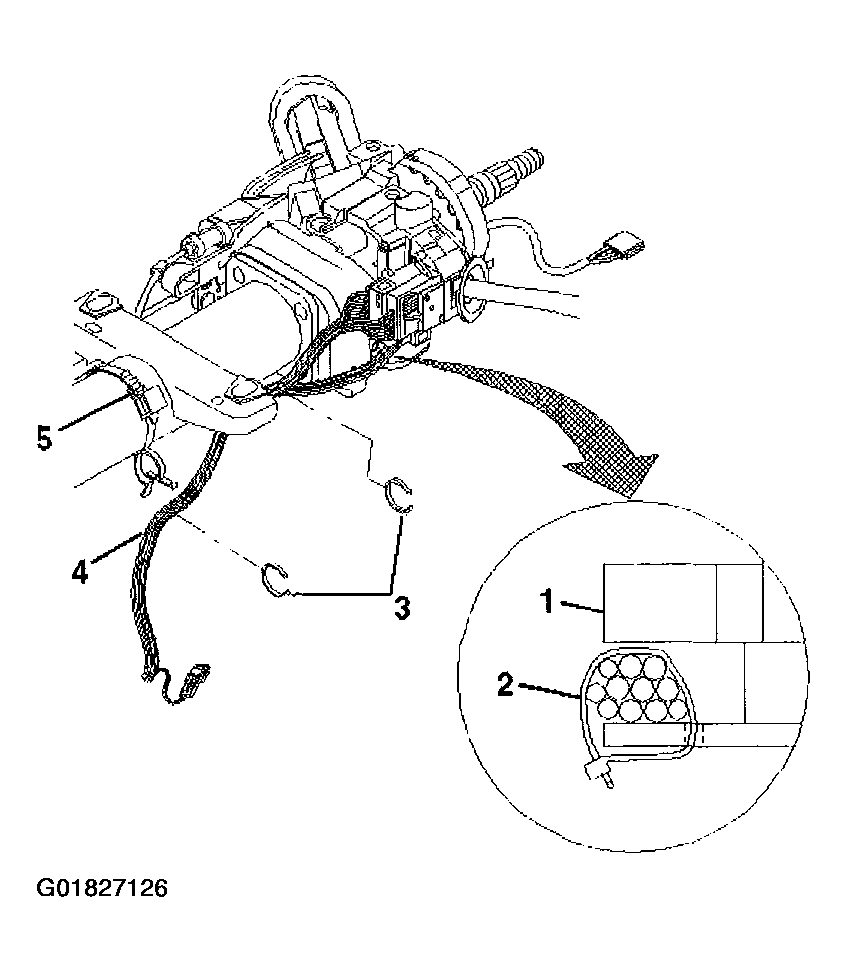

Fig 4: Upper Tilt Head Assembly

Courtesy of GENERAL MOTORS CORP.

Install the wire harness assembly (4) into the wire harness strap (5).
Install the wire harness strap (2) into the steering column tilt head assembly (1).
Install the wire harness straps (3) onto the wire harness assembly (4).
Install the upper and lower trim covers. Refer to STEERING COLUMN TRIM COVERS - Assemble - Off Vehicle .
Enable the inflatable restraint steering wheel module. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
