Installation Procedure
WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

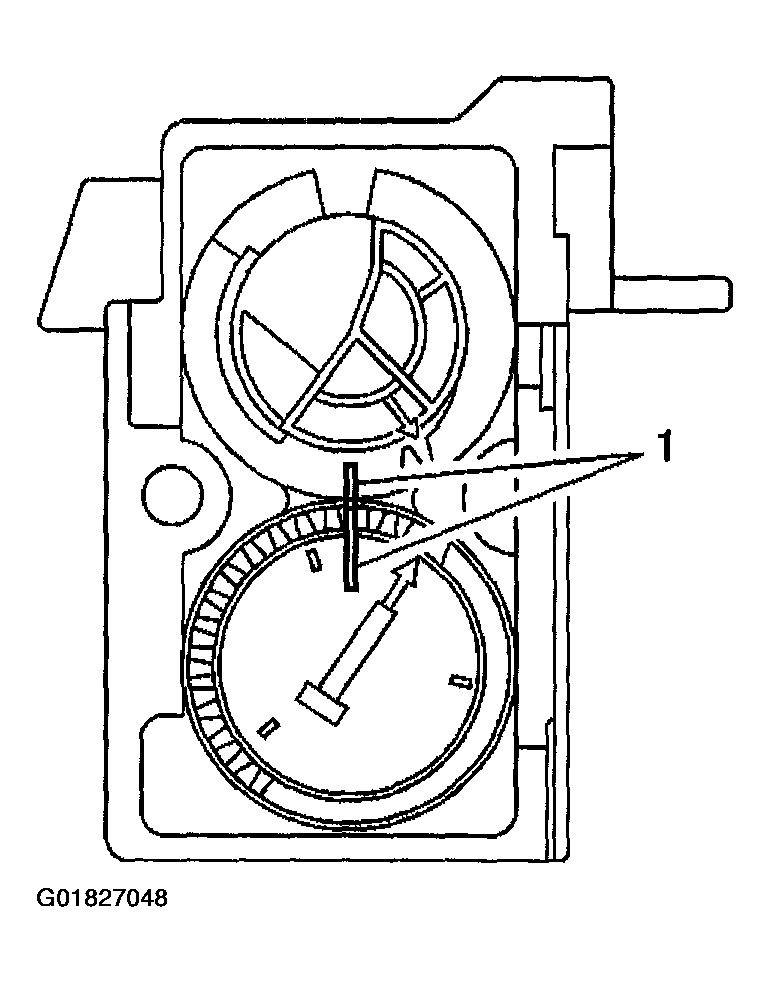

- Align the marks (1) on the lock module sector gears and install the sector gears.
- Ensure that the lock module is in the OFF/LOCK position.
- Insert the ignition key into the NEW ignition lock cylinder.
- Align the lock cylinder retaining tab and the position tab with the slots in the lock housing.
- Push the lock cylinder into the lock housing completely.
- Rotate the lock cylinder to ACC.
- Ensure that the sector gear arrows point toward each other. If the sector gear arrows do not point toward each other, remove the sector gears and install the sector gears properly.
- Install lock module rear cover.
- Push the lock bolt completely into the into the tilt head and hold the lock bolt.
- Install the lock module with the ignition switch, the theft deterrent module and the steering column upper trim cover. Refer to STEERING COLUMN TRIM COVERS REPLACEMENT - On Vehicle .
- Install the park lock cable to the lock module.
- Adjust the park lock cable.
- Install the steering column lower trim cover. Refer to STEERING COLUMN TRIM COVERS REPLACEMENT - On Vehicle .
- Install the turn signal cancel cam and the shaft lock shield. Refer to TURN SIGNAL CANCEL CAM AND STEERING SHAFT UPPER BEARING SPRING REPLACEMENT - On Vehicle .
- Install the SIR coil. Refer to SIR COIL ASSEMBLY .
- Install the steering wheel. Refer to Steering Wheel Replacement .
- Install the inflator module. Refer to REMOVAL & INSTALLATION (DRIVER-SIDE) .
- Enable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
- Connect the battery negative cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE .
