Symptoms List

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Refer to a symptom diagnostic procedure from the following list in order to diagnose the symptom:

Lock System Does Not Unlock. See Fig 1.
Lock System Does Not Lock. See Fig 2.
Lock System Sticks in Start. See Fig 3.
Key Cannot Be Removed in the Off Lock Position. See Fig 4.
High Lock Effort. See Fig 5.
Noise in Steering Column. See Fig 6.
High Shift Effort. See Fig 7.
Looseness in Steering Column. See Fig 8.
Steering Column Tilt Function Inoperative. See Fig 9.

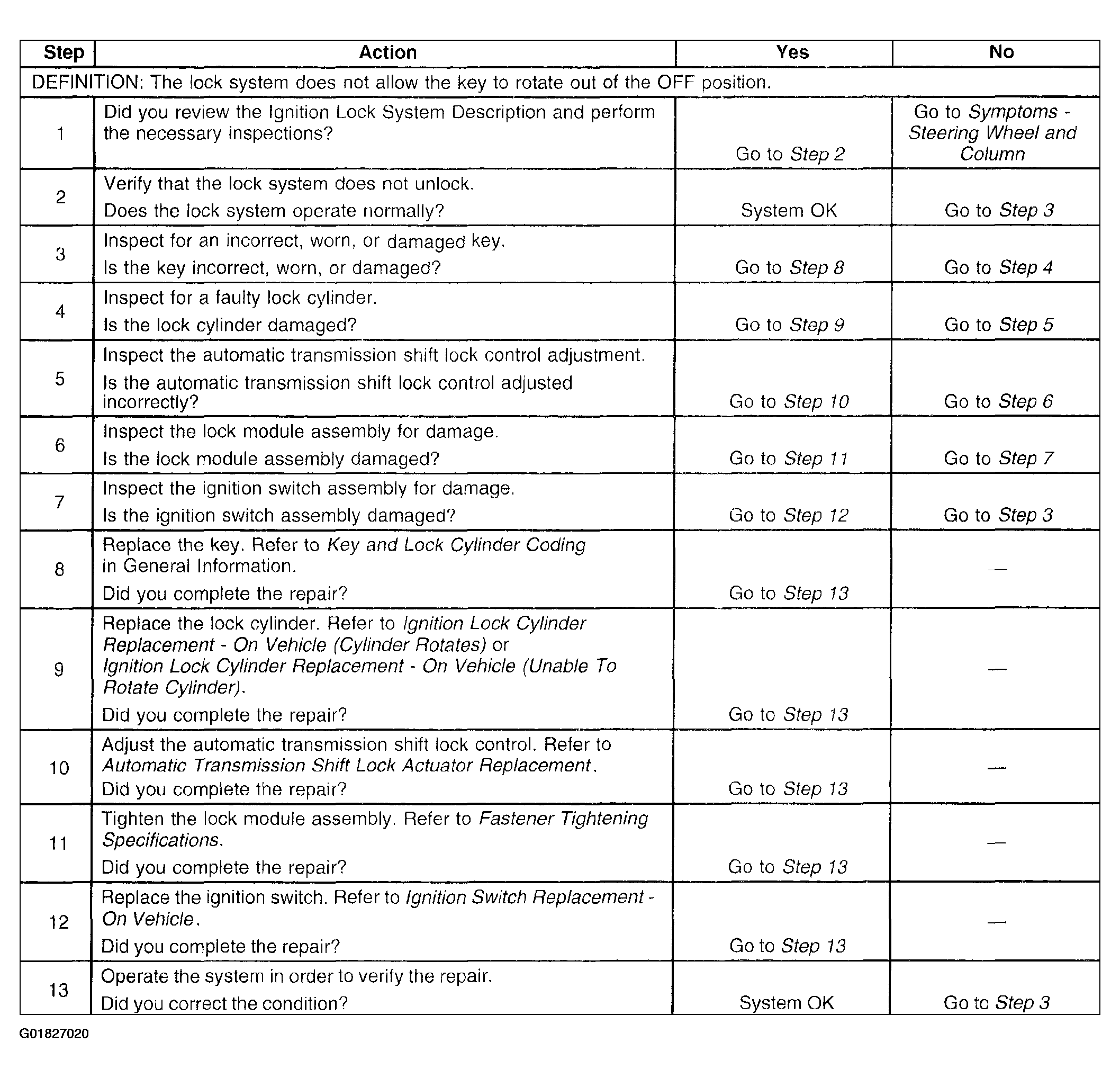

Fig 1: Lock System Does Not Unlock
Courtesy of GENERAL MOTORS CORP.

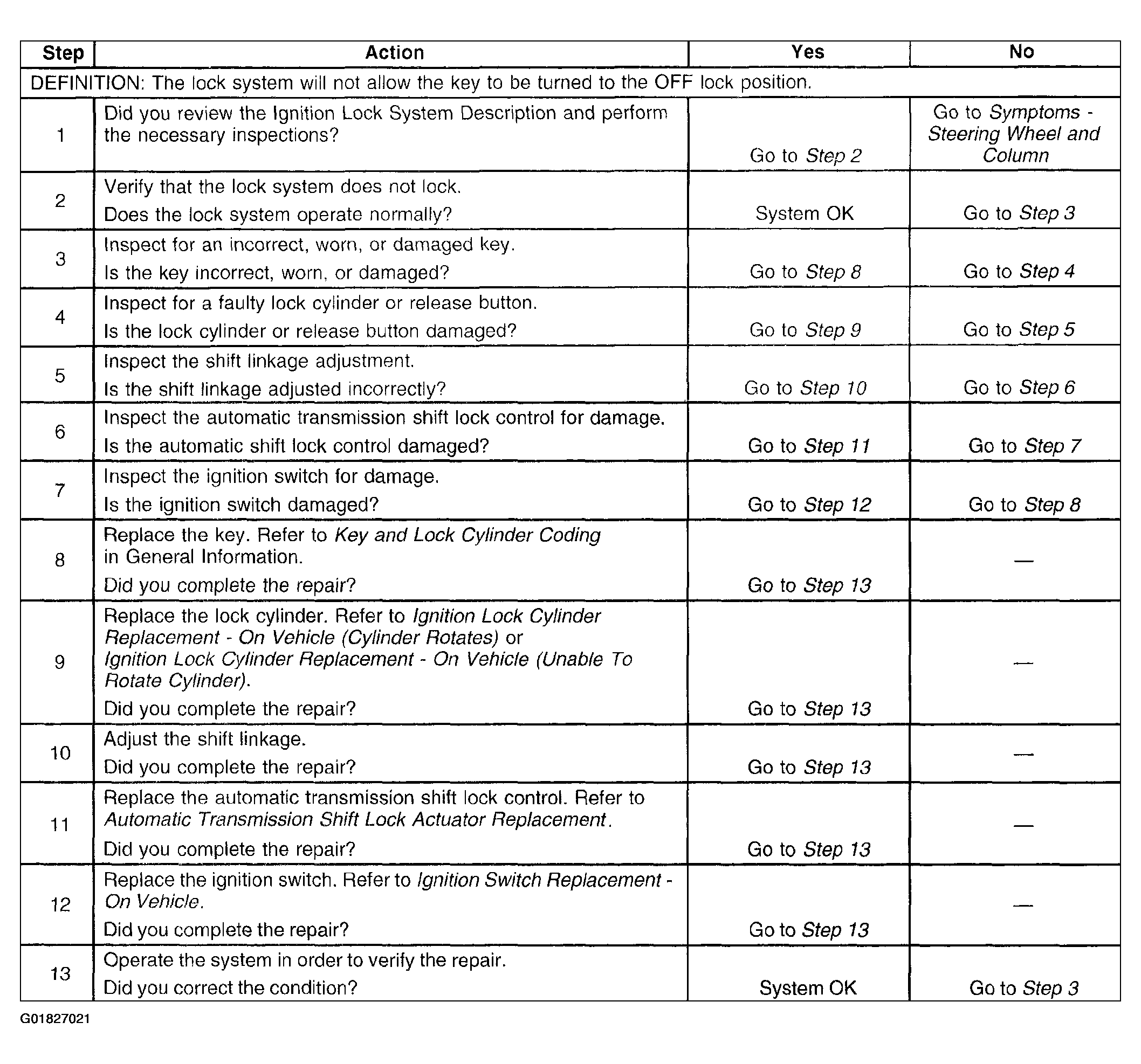

Fig 2: Lock System Does Not Lock
Courtesy of GENERAL MOTORS CORP.

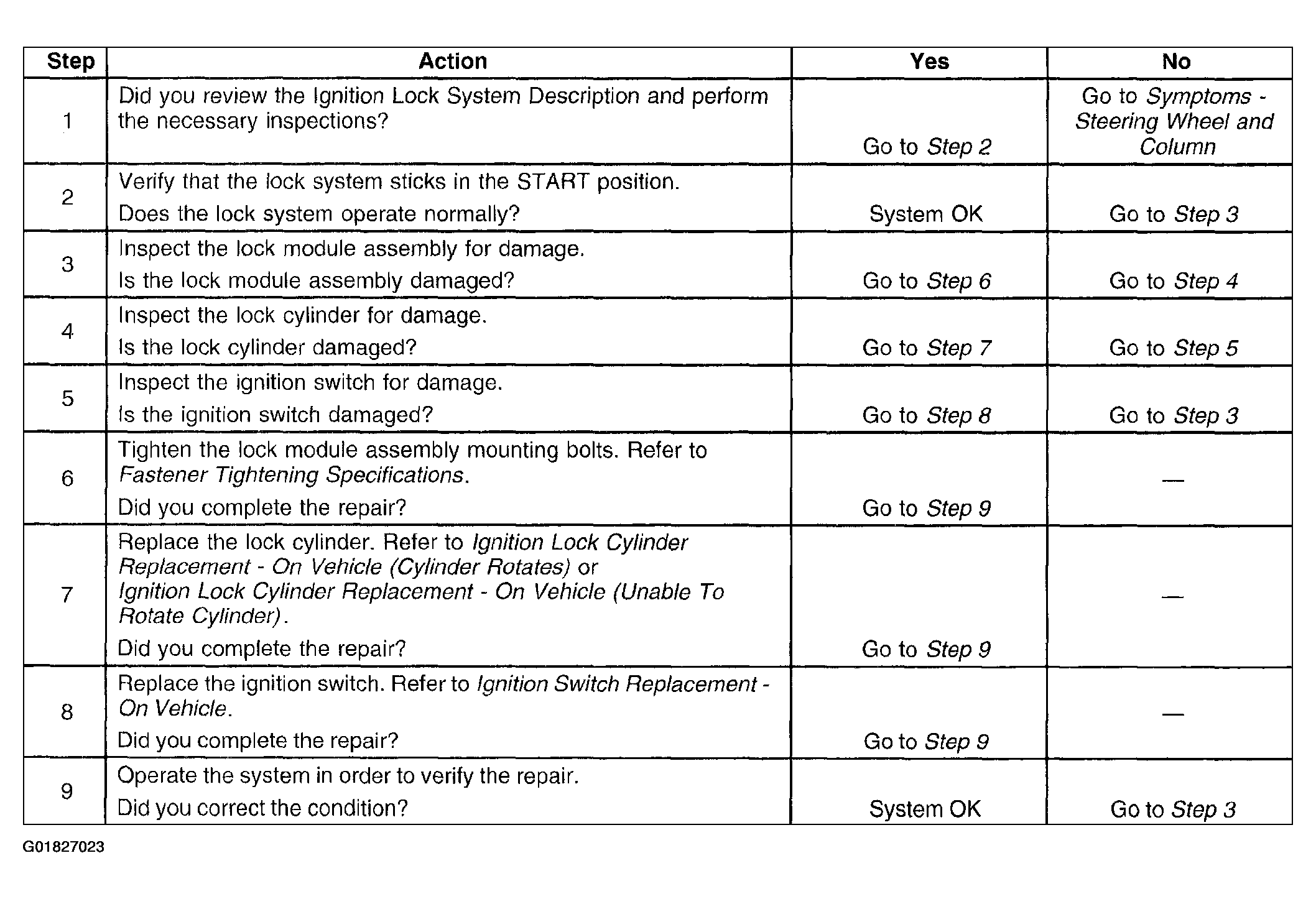

Fig 3: Lock System Sticks in Start
Courtesy of GENERAL MOTORS CORP.

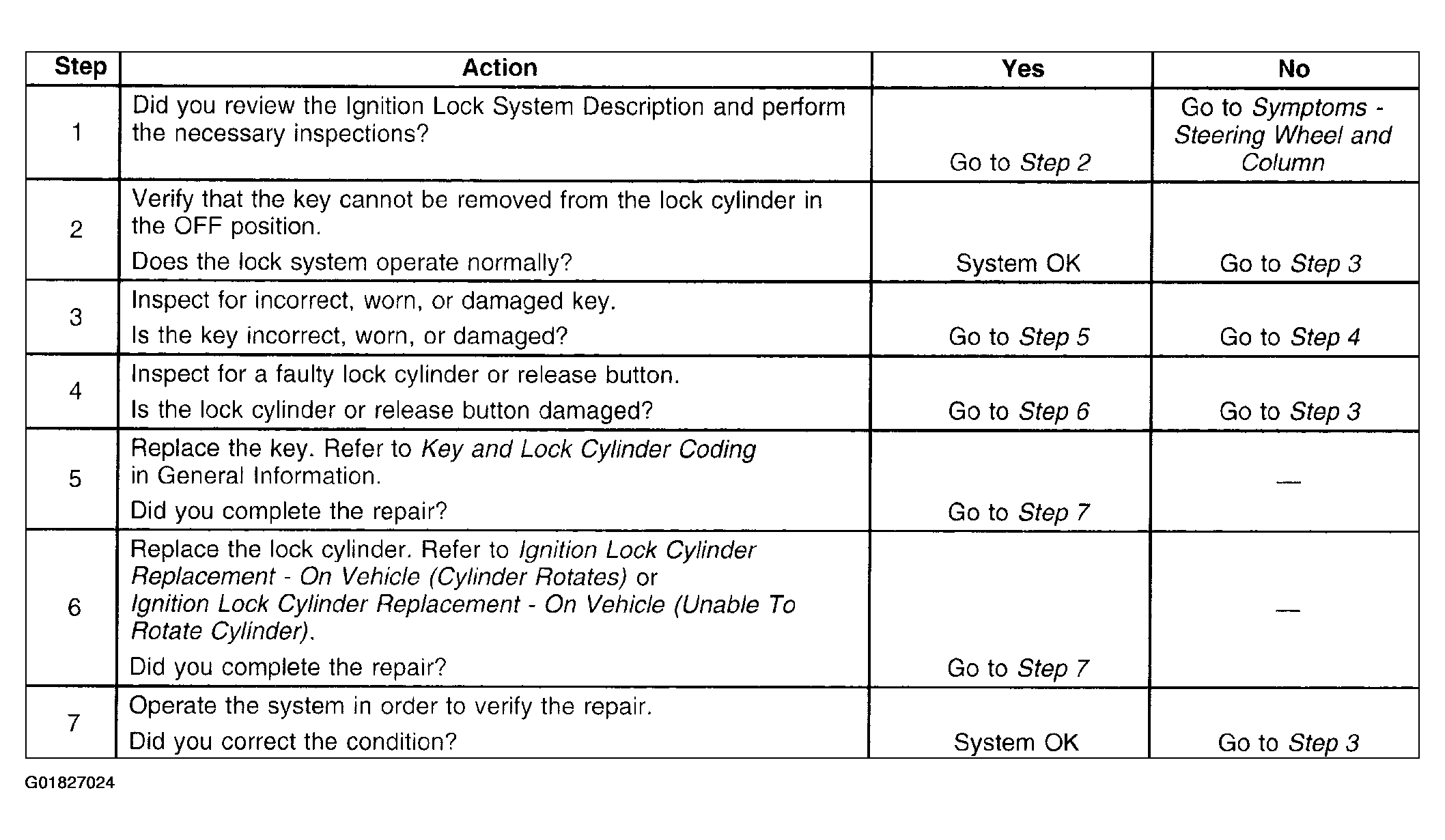

Fig 4: Key Cannot Be Removed in the Off Lock Position
Courtesy of GENERAL MOTORS CORP.

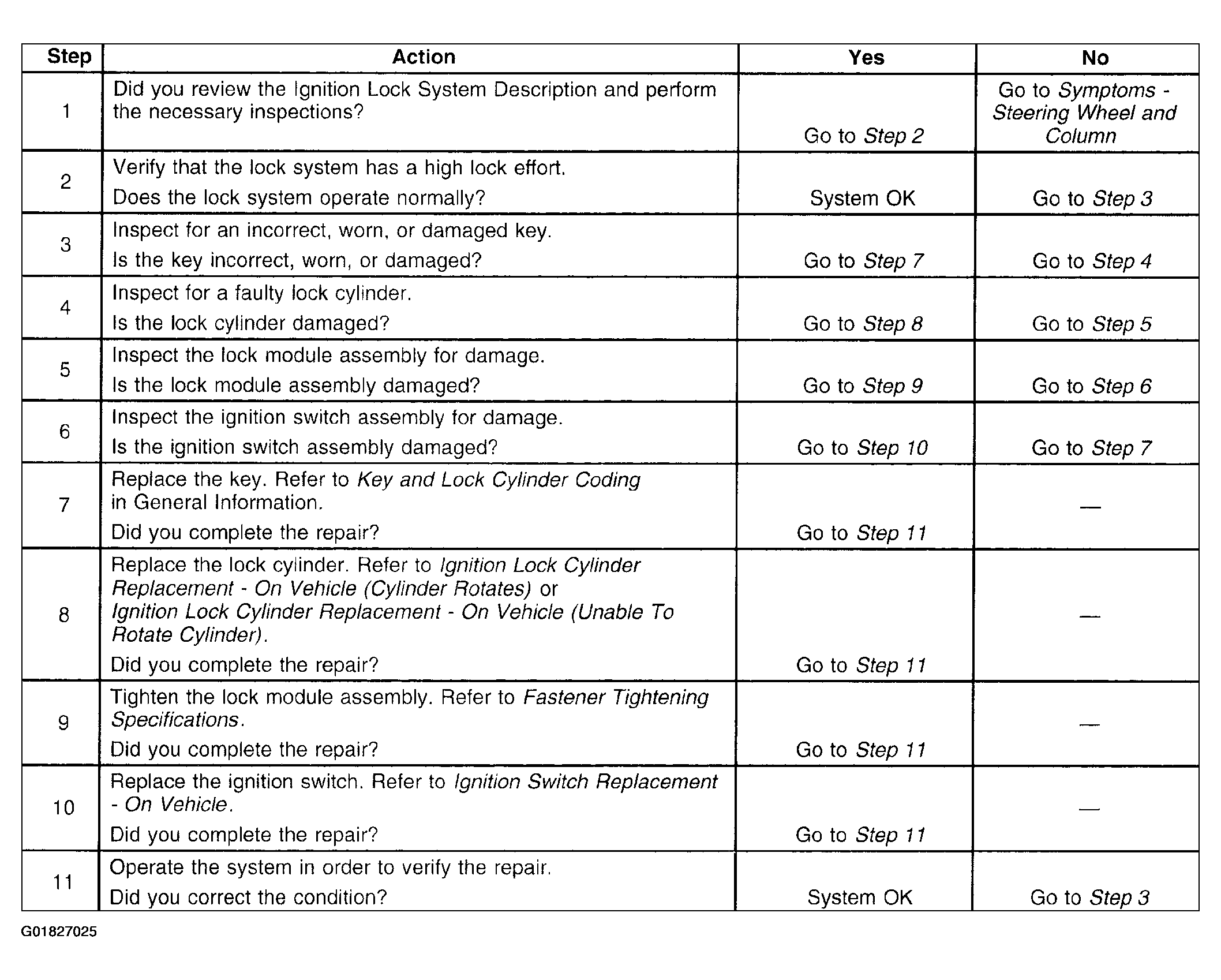

Fig 5: High Lock Effort
Courtesy of GENERAL MOTORS CORP.

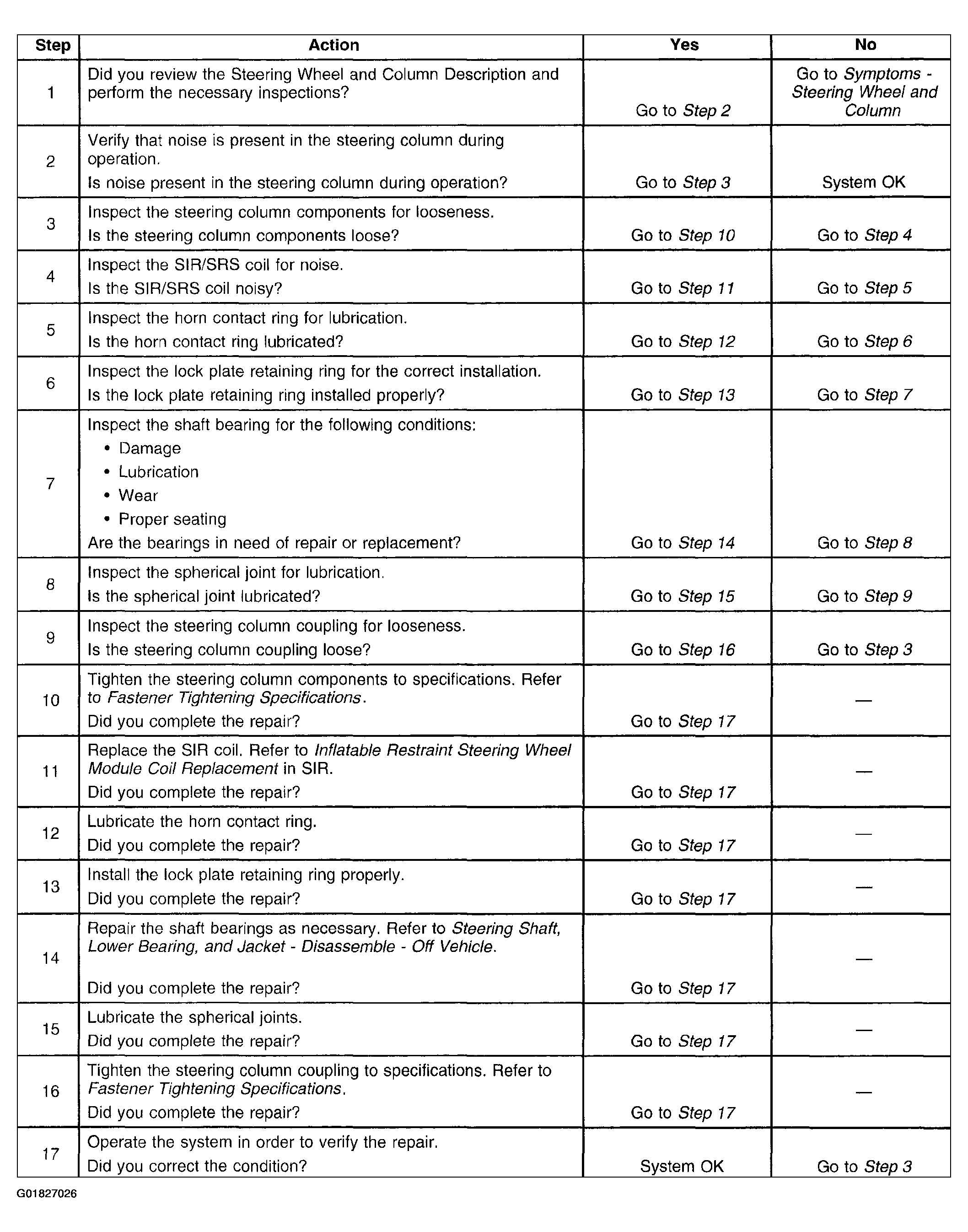

Fig 6: Noise in Steering Column
Courtesy of GENERAL MOTORS CORP.

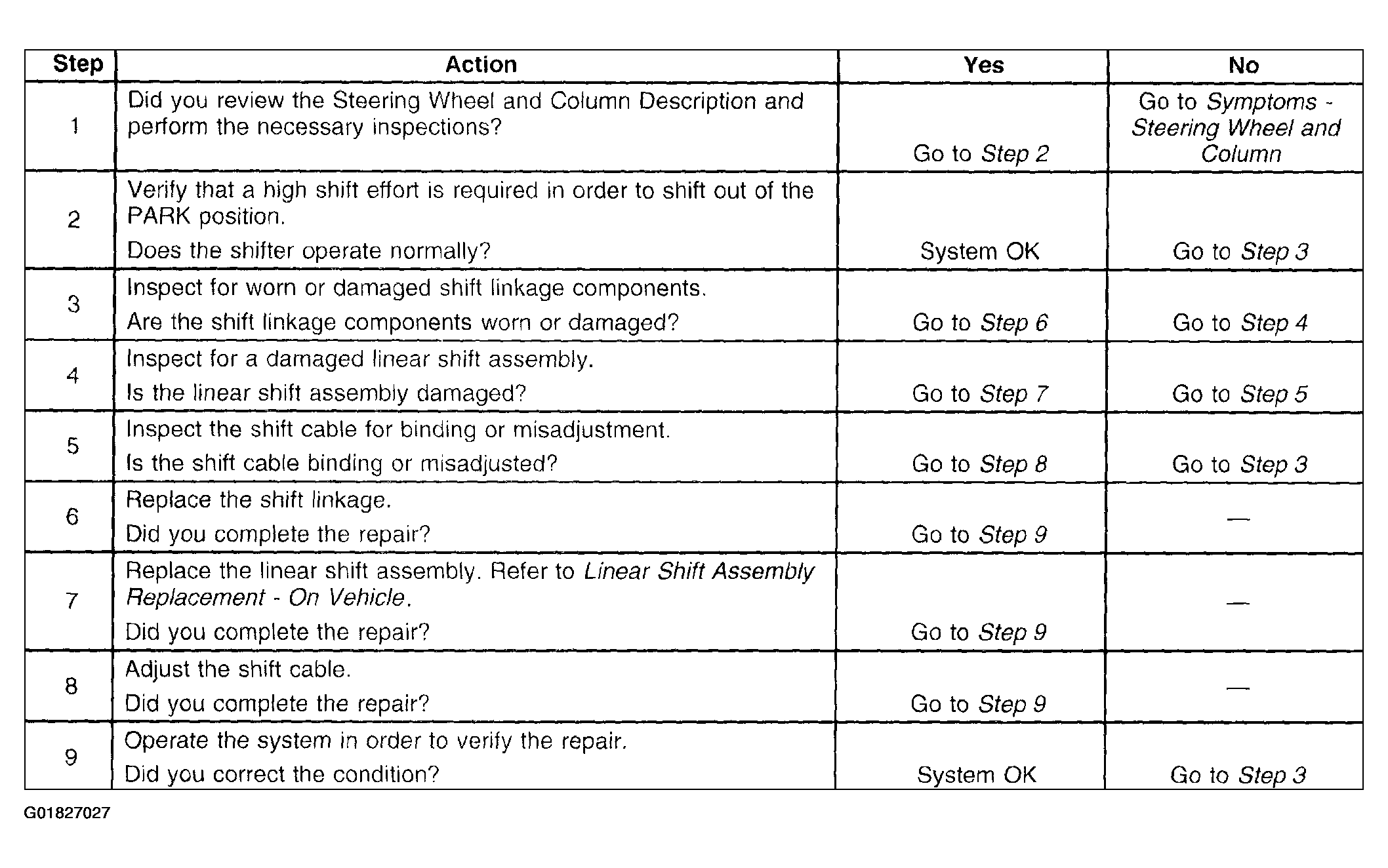

Fig 7: High Shift Effort
Courtesy of GENERAL MOTORS CORP.

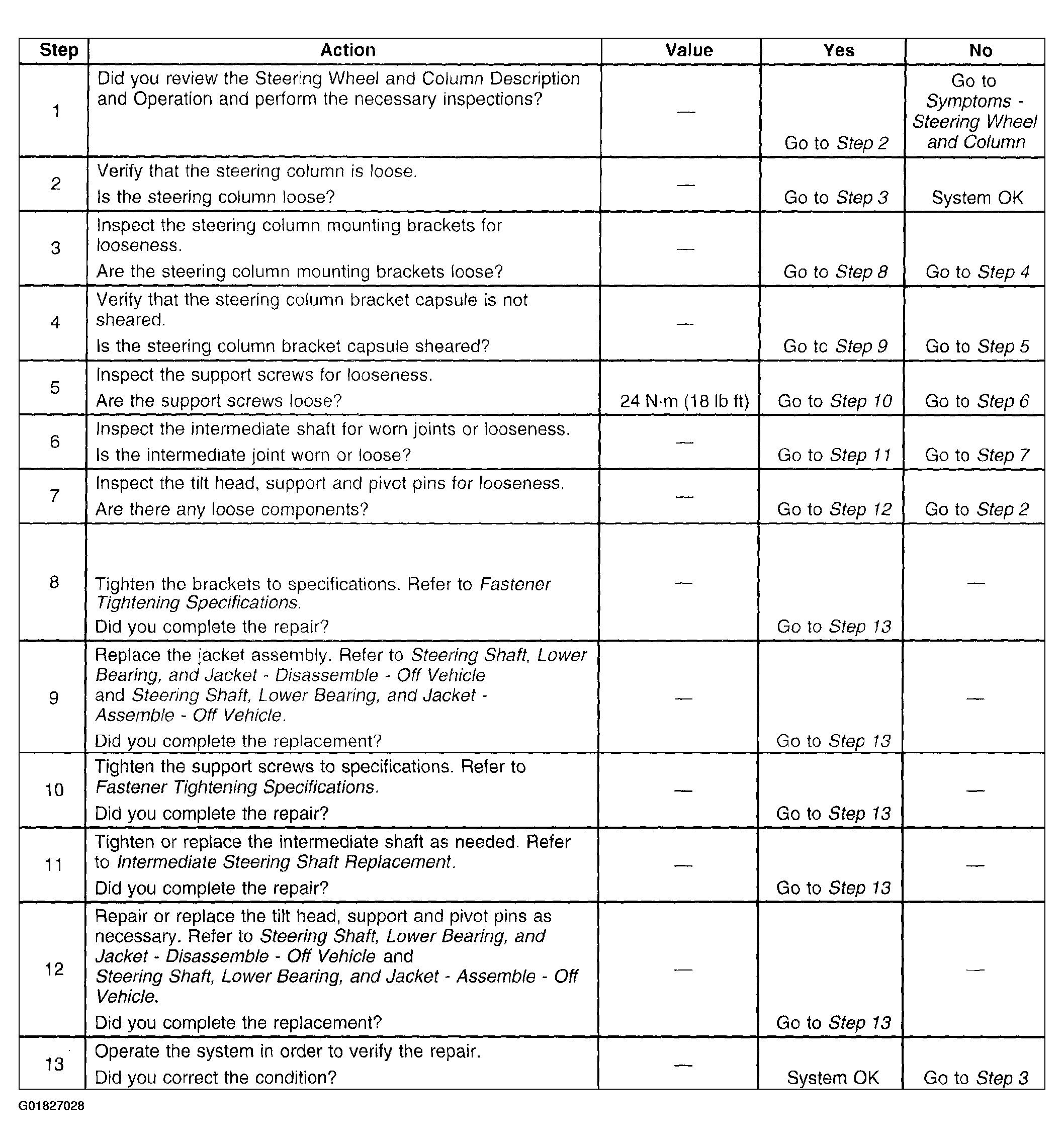

Fig 8: Looseness in Steering Column
Courtesy of GENERAL MOTORS CORP.

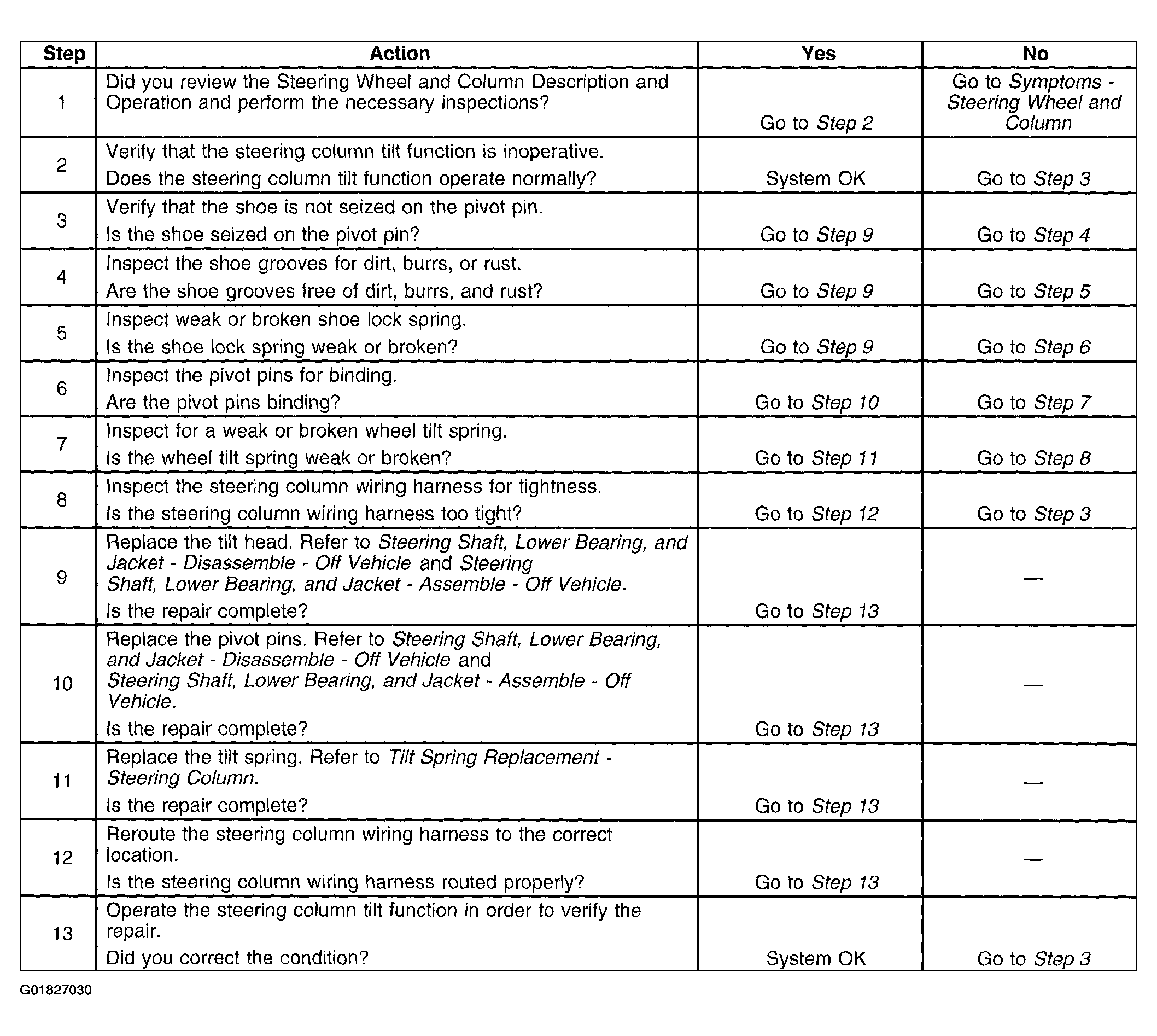

Fig 9: Steering Column Tilt Function Inoperative
Courtesy of GENERAL MOTORS CORP.
