Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the exhaust manifold pipe gasket.

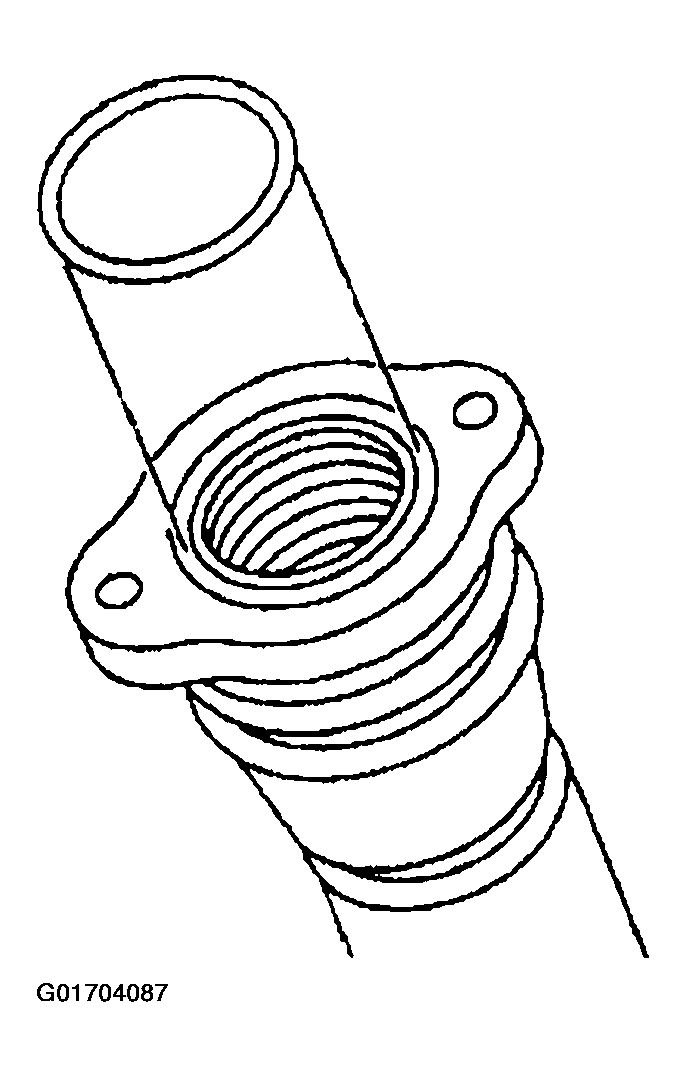

    Fig 1: Exhaust Manifold Pipe Gasket
    G01704087Courtesy of GENERAL MOTORS CORP.
  2. Install the exhaust system to the exhaust manifold.
  3. Install the hangers that were removed.
  4. Remove the exhaust system support.
    NOTE: Refer to FASTENER NOTICE .
  5. Install the exhaust manifold pipe nuts to the exhaust manifold pipe studs.

    Tighten

    Tighten the exhaust manifold stud nuts to 35 N.m (26 lb ft).

  6. Inspect the exhaust system for leaks and underbody contact.
  7. Lower the vehicle.

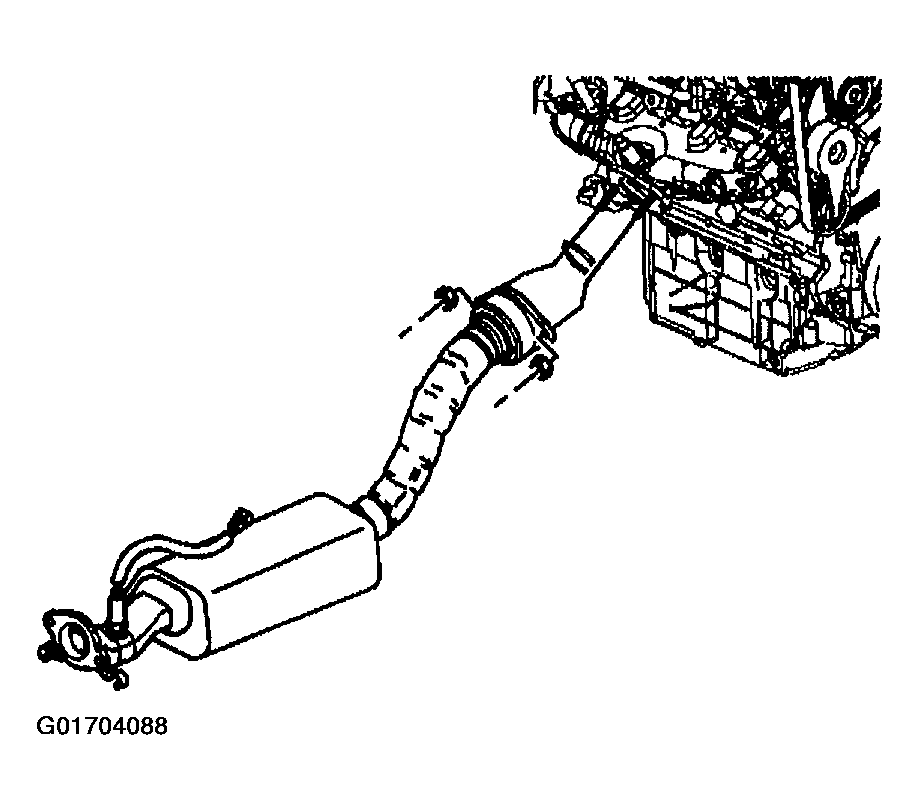

    Fig 2: Exhaust Manifold Pipe Nuts
    G01704088Courtesy of GENERAL MOTORS CORP.
