Schematic and Routing Diagrams

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

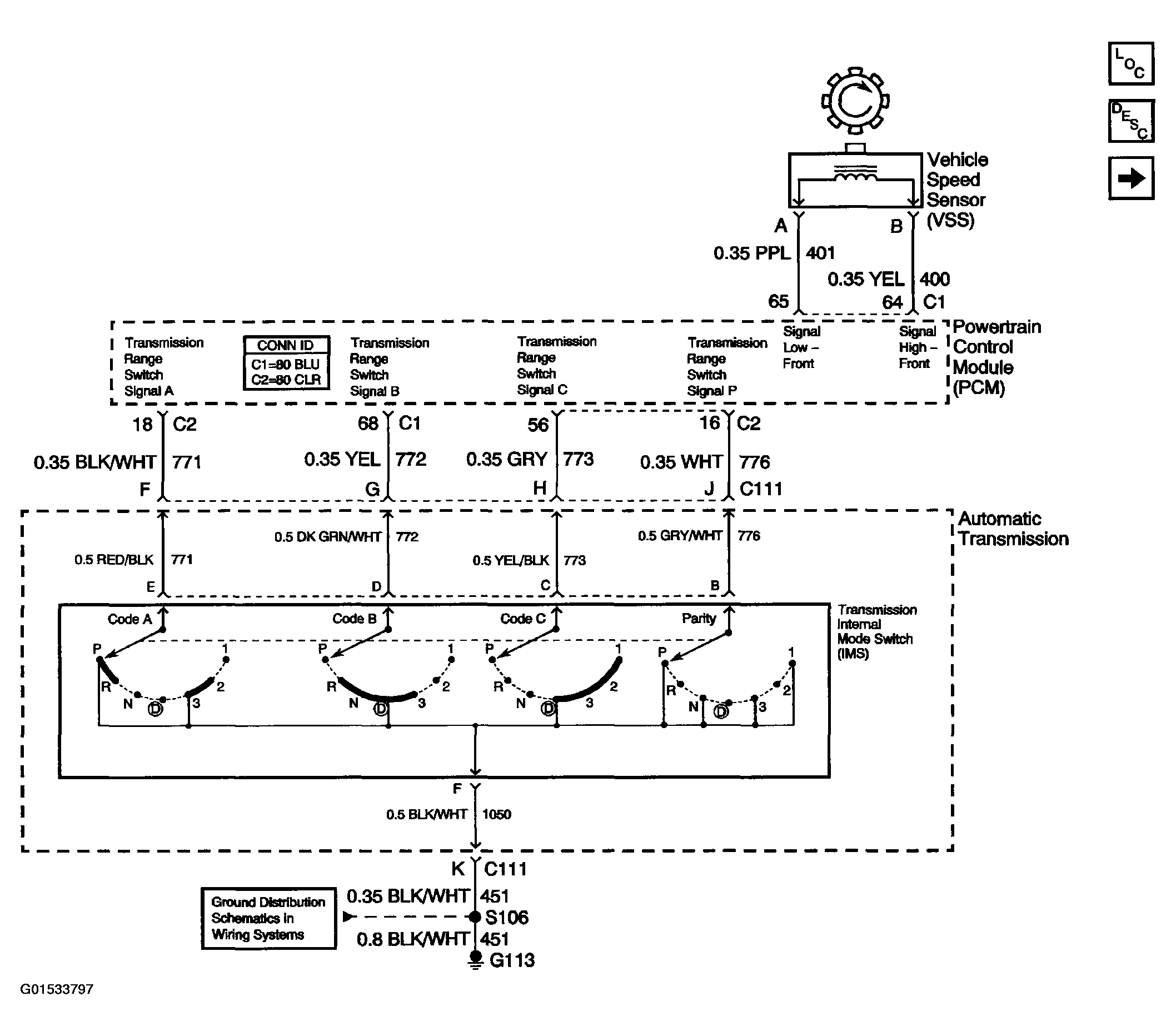

Fig 1: Automatic Transmission Controls Schematics (Internal Mode Switch (IMS) And VSS)

Courtesy of GENERAL MOTORS CORP.

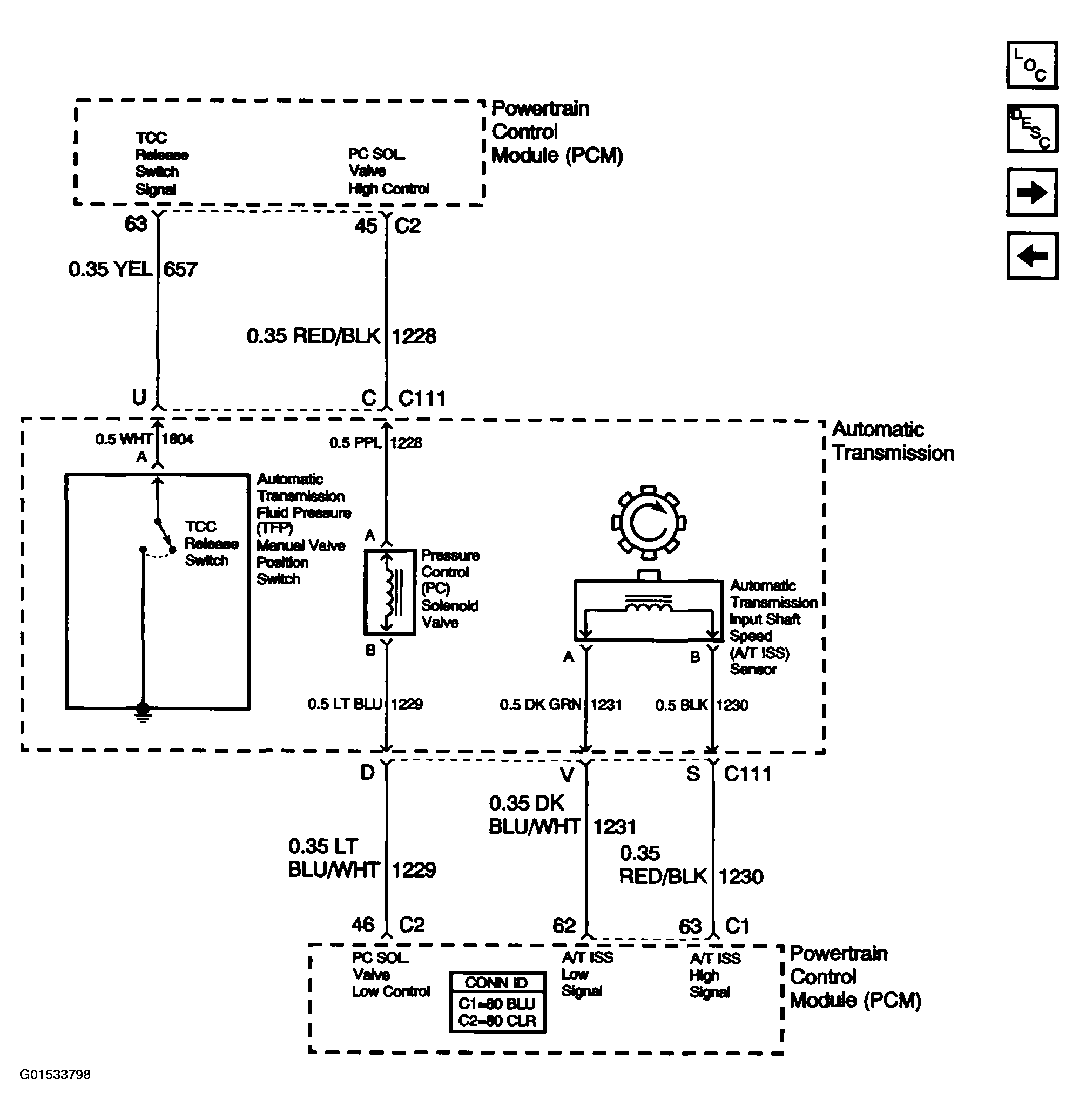

Fig 2: Automatic Transmission Controls Schematics (Automatic Transmission)

Courtesy of GENERAL MOTORS CORP.

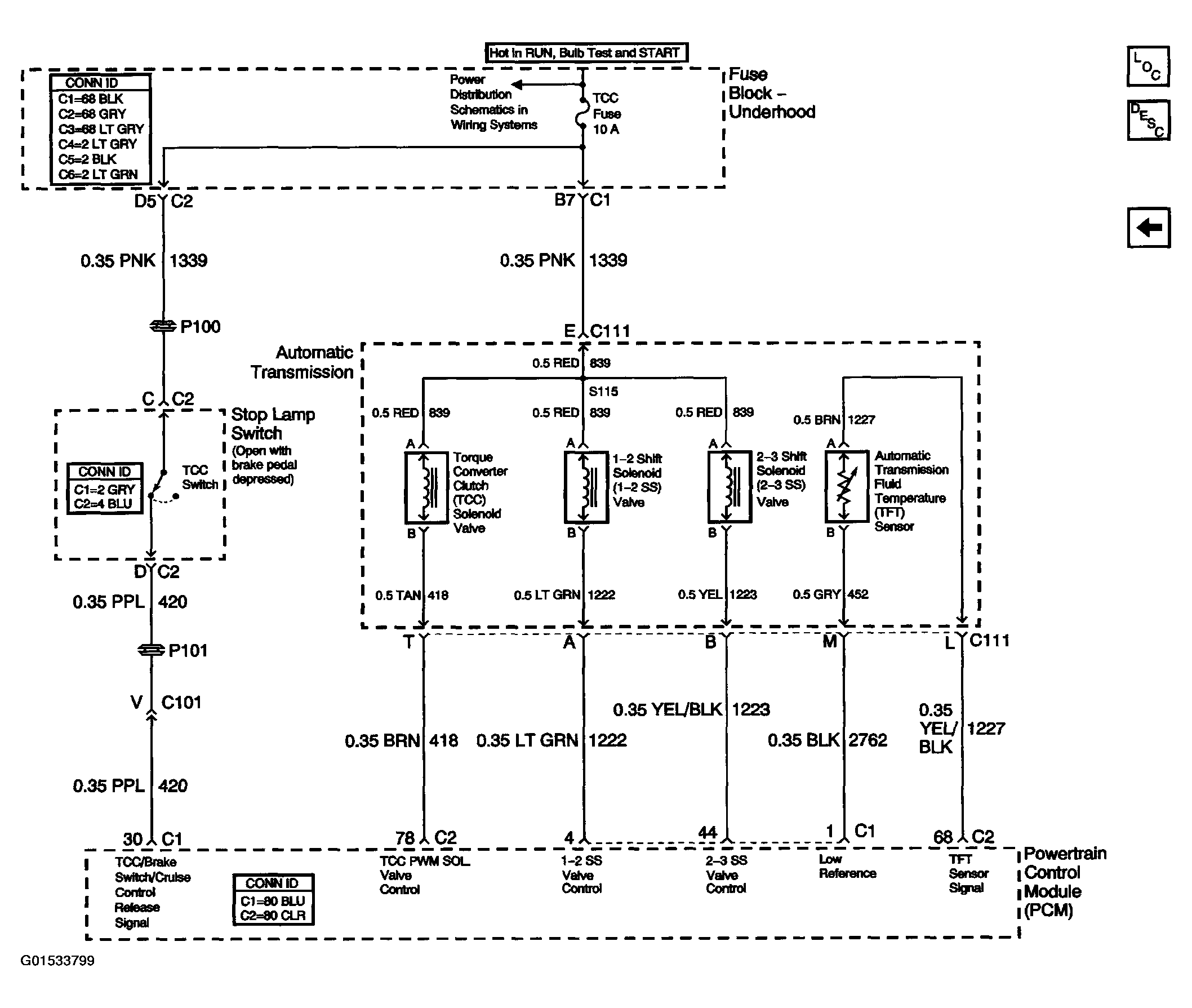

Fig 3: Automatic Transmission Controls Schematics (Automatic Transmission TCC Switch)

Courtesy of GENERAL MOTORS CORP.
