Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the case side cover. Refer to CASE SIDE COVER REPLACEMENT  .
  2. Use a small flat-bladed tool in order to remove the wiring harness from the solenoid valve(s) (315A, 315B, 322, 334 and/or 440), TFP manual valve position switch (395) and/or the temperature sensor (391).

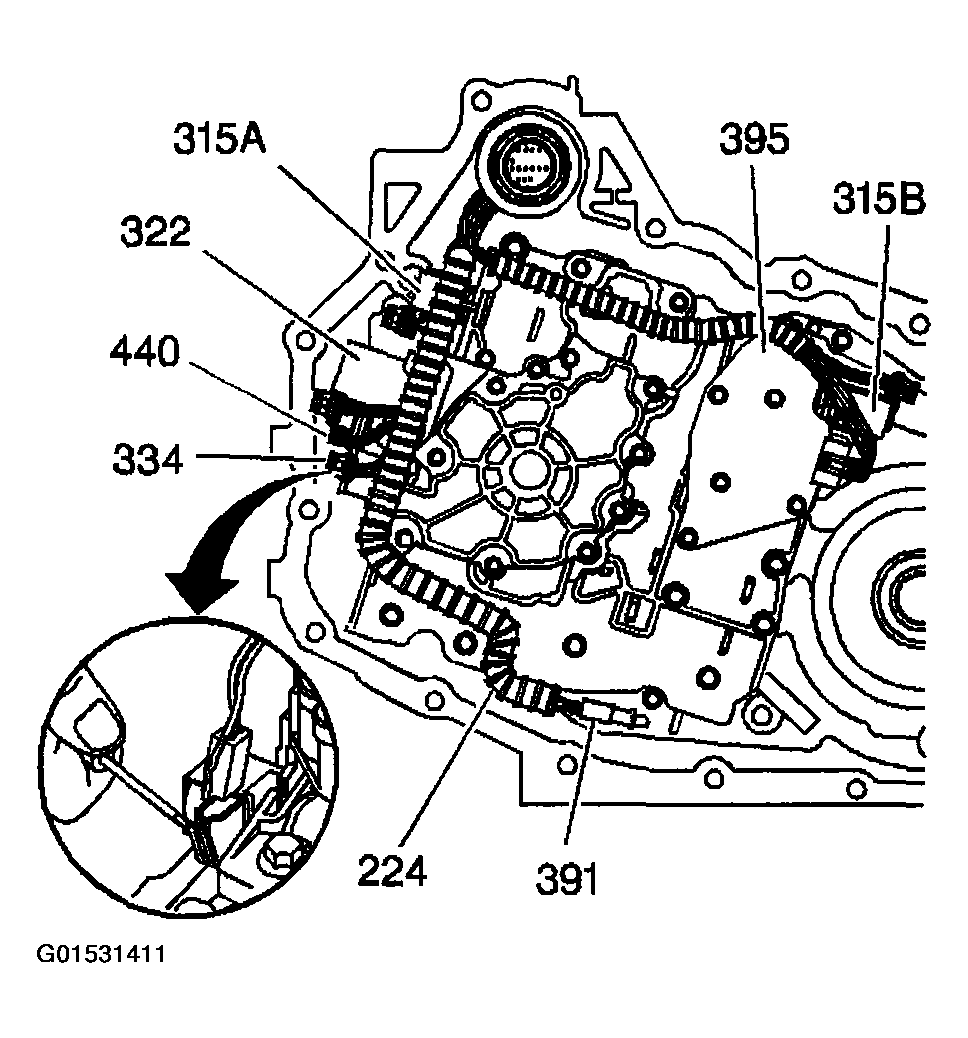

    Fig 1: Removing Wiring Harness From Solenoid Valve(s), TFP Manual Valve Position Switch And/Or Temperature Sensor
    G01531411Courtesy of GENERAL MOTORS CORP.
  3. Remove the wiring harness (224).
  4. Remove the clips retaining the solenoid(s).

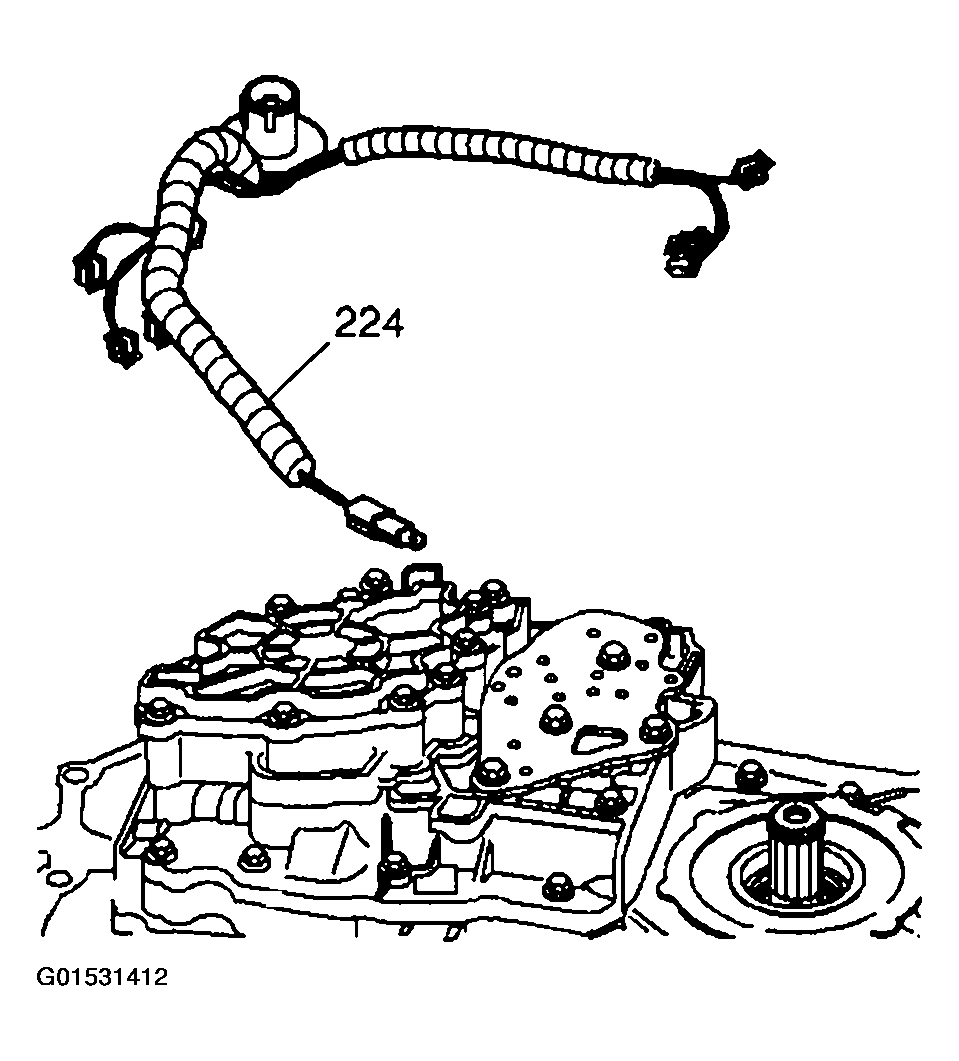

    Fig 2: Removing Wiring Harness
    G01531412Courtesy of GENERAL MOTORS CORP.
