Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the wiring harness (224).

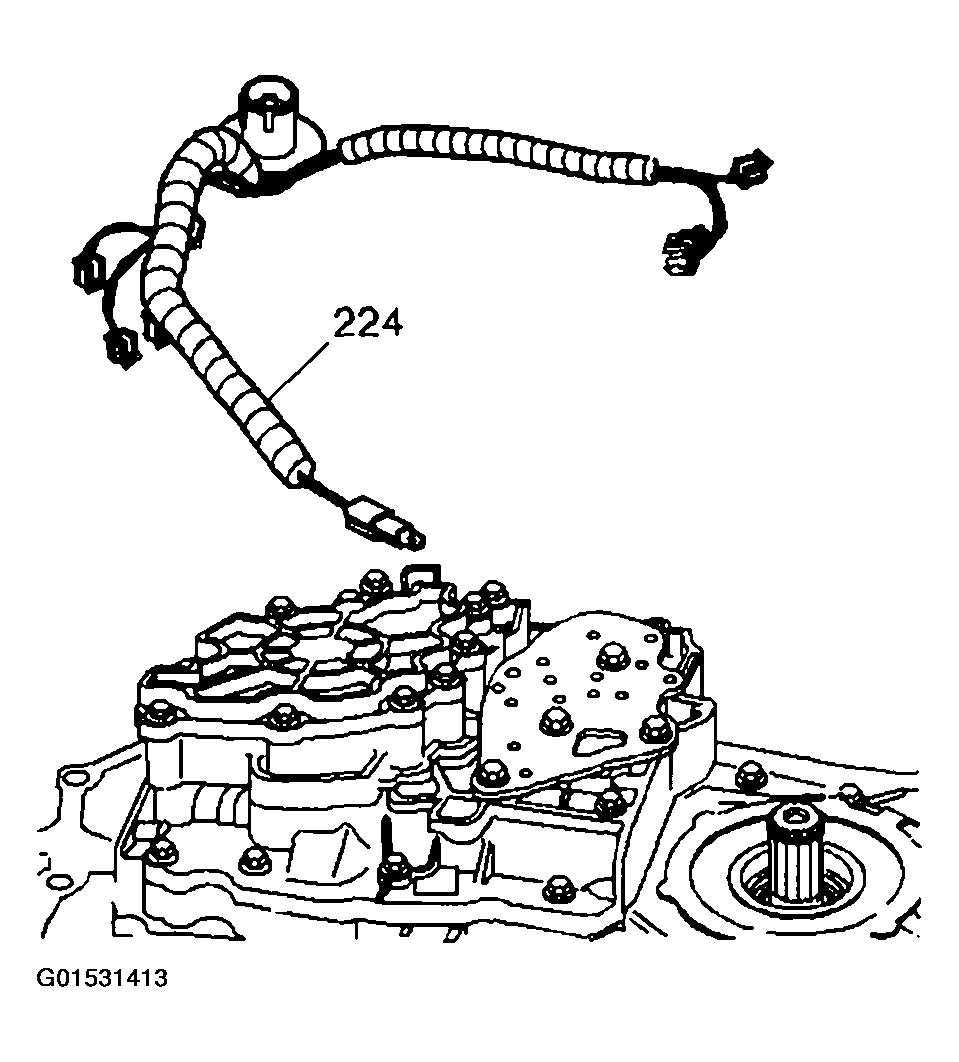

    Fig 1: Connecting Wiring Harness
    G01531413Courtesy of GENERAL MOTORS CORP.
  2. Install the wiring harness to the solenoid valve(s) (315A, 315B, 322, 334 and/or 440), TFP manual valve position switch (395) and/or the temperature sensor (391).
  3. Install the case side cover. Refer to CASE SIDE COVER REPLACEMENT   .

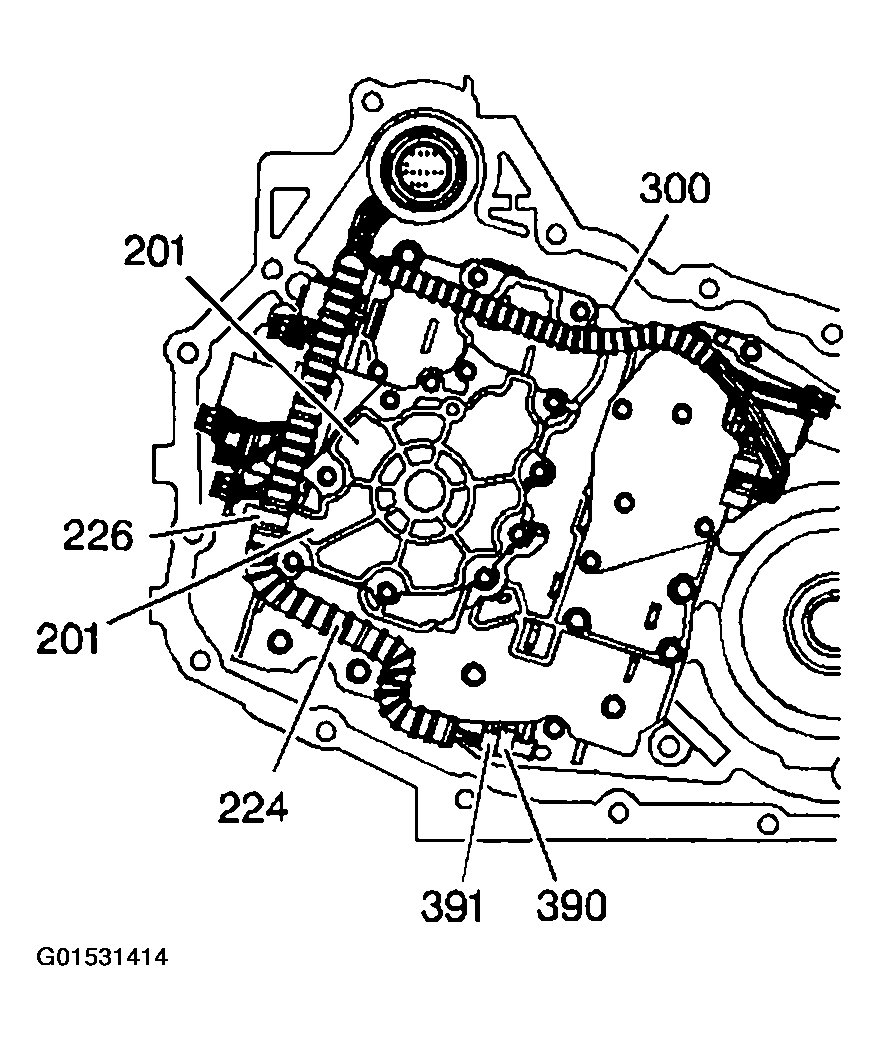

    Fig 2: Installing Wiring Harness To Solenoid Valve(s), TFP Manual Valve Position Switch And/Or Temperature Sensor
    G01531414Courtesy of GENERAL MOTORS CORP.
