Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the O-ring seal (11) to the vehicle speed sensor (10).
  2. Install the vehicle speed sensor to the extension case.

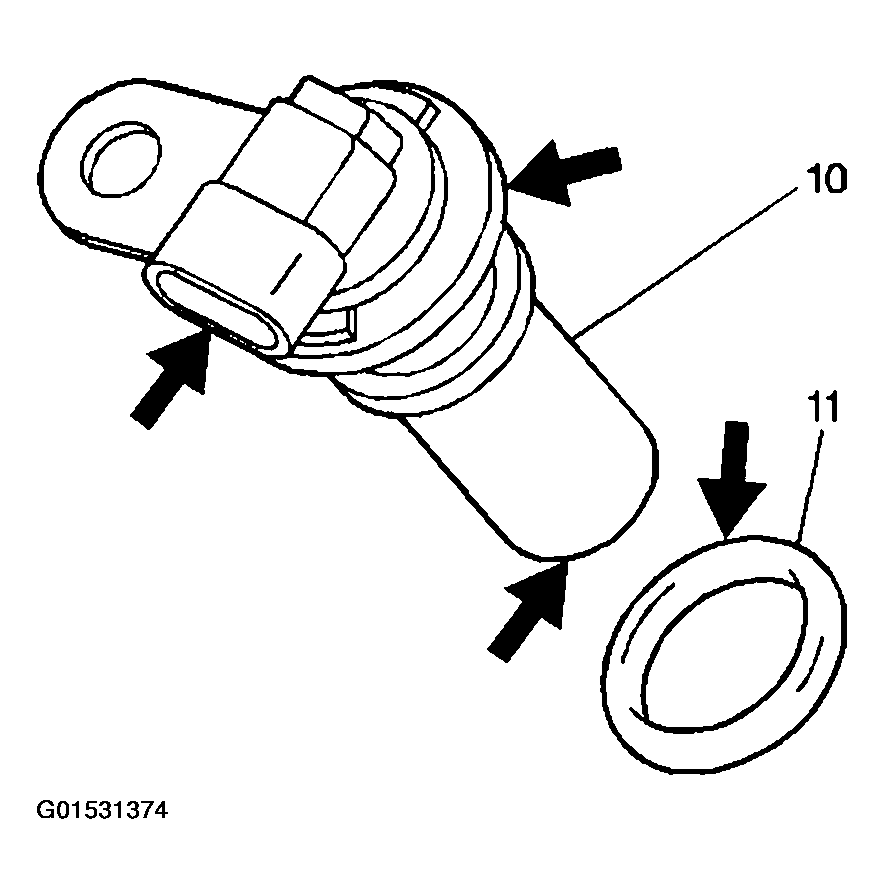

    Fig 1: Installing O-Ring Seal To Vehicle Speed Sensor
    G01531374Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the vehicle speed sensor bolt (9).

    Tighten

    Tighten the bolt to 12 N.m (106 lb in).

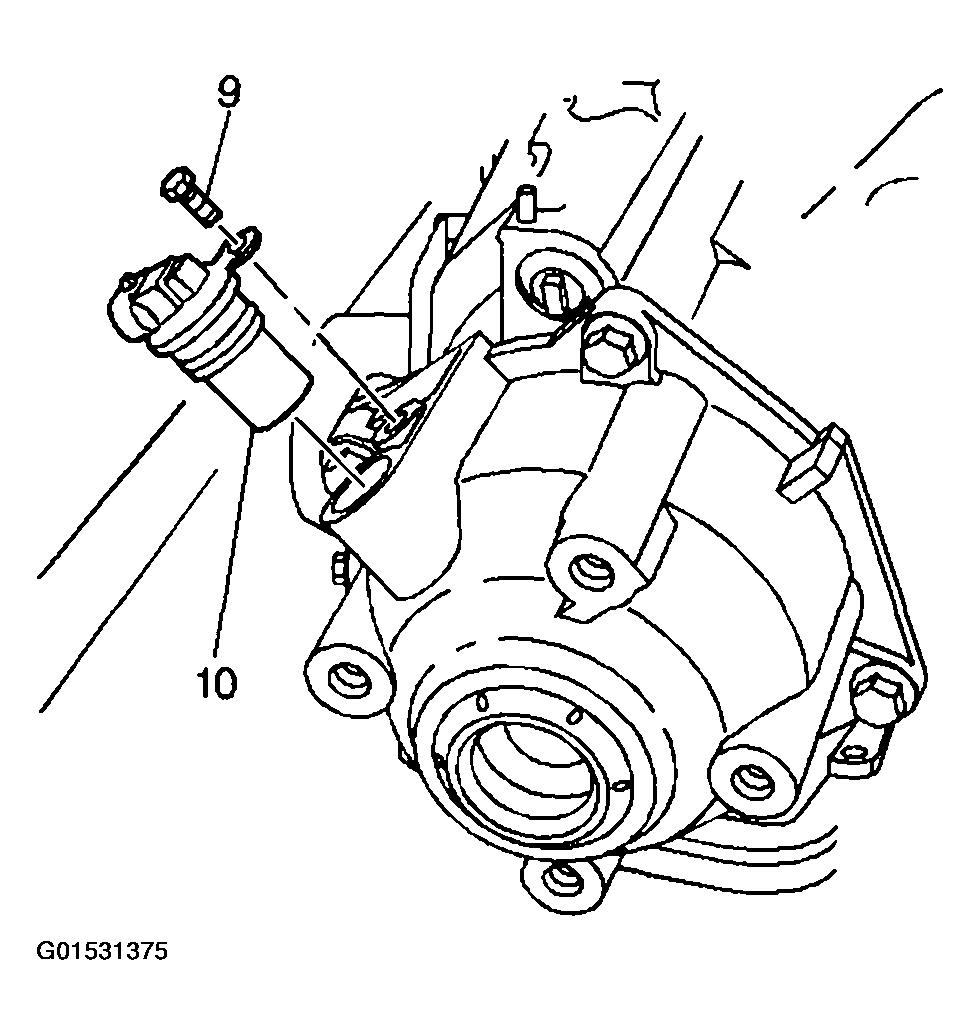

    Fig 2: Installing Vehicle Speed Sensor Bolt
    G01531375Courtesy of GENERAL MOTORS CORP.
  4. Install the vehicle speed sensor wiring harness connector.
  5. Install the right engine splash shield. Refer to SPLASH SHIELD REPLACEMENT - ENGINE  in Body Front End.
  6. Install the right front tire and wheel. TIRE AND WHEEL REMOVAL AND INSTALLATION  in Tires and Wheels.
  7. Lower the vehicle.

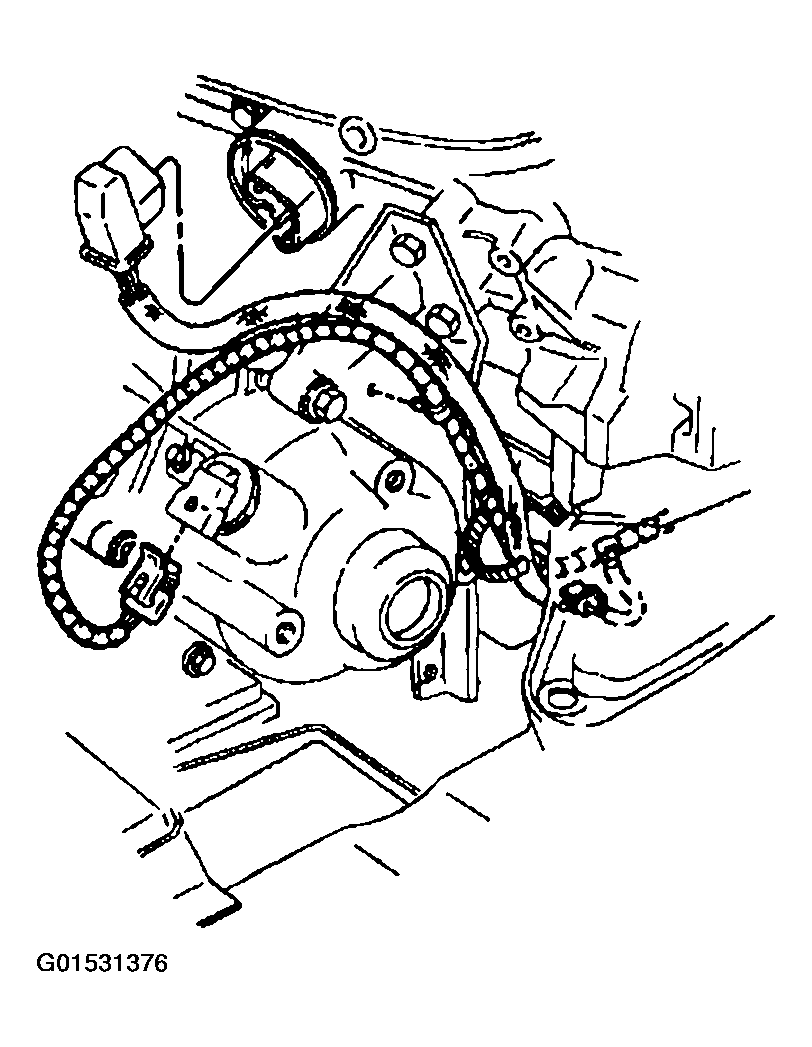

    Fig 3: Installing Vehicle Speed Sensor Wiring Harness Connector
    G01531376Courtesy of GENERAL MOTORS CORP.
