Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the air cleaner intake duct. Refer to ENGINE CONTROLS - REMOVAL & INSTALLATION & OVERHAUL in Removal and Installation in Engine Performance.
  2. Use a hammer and a chisel in order to raise the transaxle vent seat off of the transaxle.
  3. Use a flat-bladed tool in order to pry the transaxle vent (37) out of the transaxle.

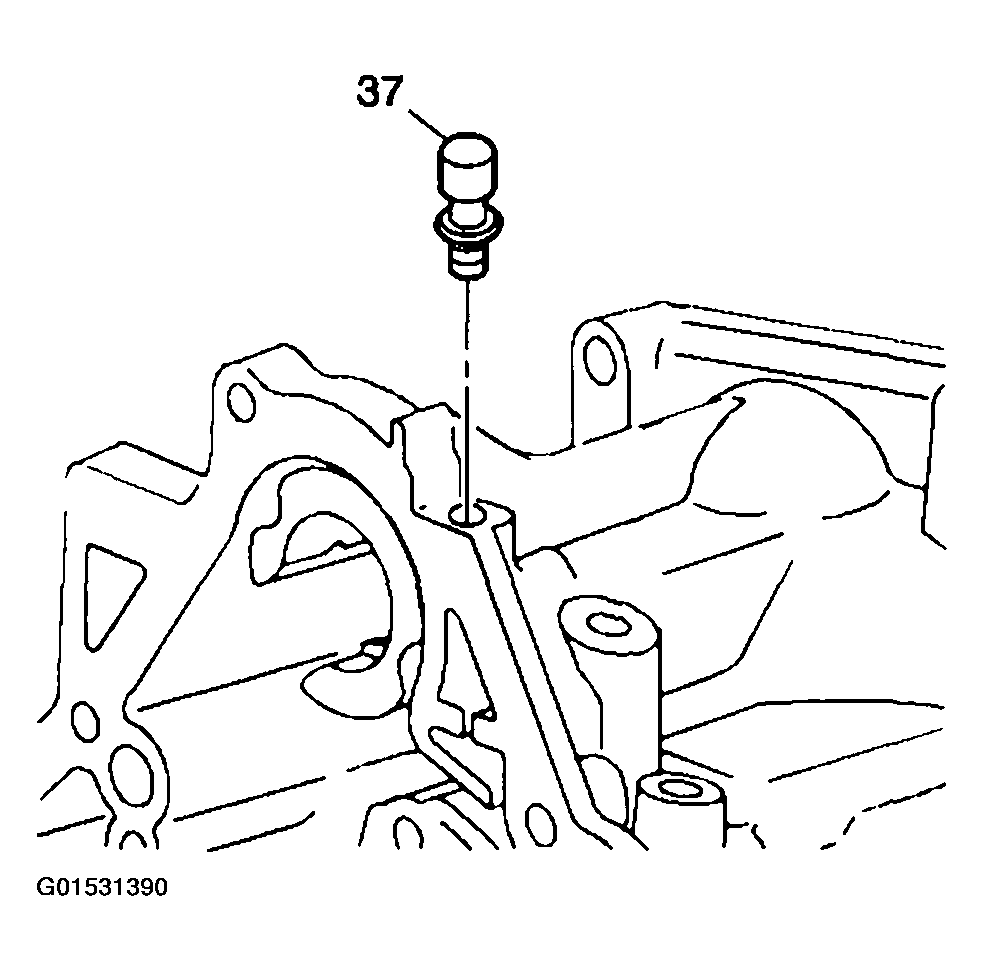

    Fig 1: Removing Transaxle Vent Out Of Transaxle
    G01531390Courtesy of GENERAL MOTORS CORP.
