Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use a small hammer and a flat-bladed tool and tap down on the transaxle vent seat in order to install the transaxle vent (37).
  2. Install the air cleaner intake duct. Refer to ENGINE CONTROLS - REMOVAL & INSTALLATION & OVERHAUL  in Removal and Installation in Engine Performance.

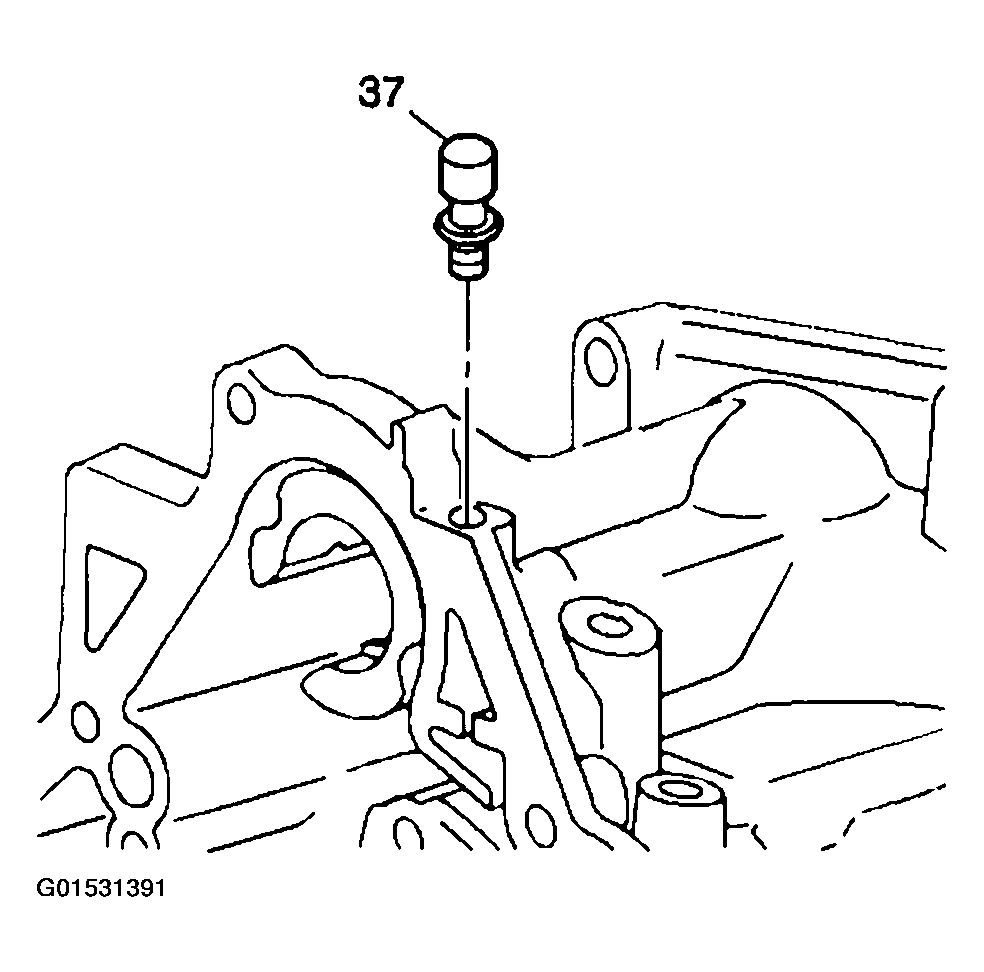

    Fig 1: Installing Transaxle Vent
    G01531391Courtesy of GENERAL MOTORS CORP.
