Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disengage the plastic cap from the quick connect fitting. Pull the plastic cap back along the pipe.
  2. Hold one leg of the retaining clip.
  3. Using a small pick-type tool or bent screwdriver, gently disengage the other end of the retaining clip from the quick connect fitting.
  4. Rotate the retaining clip out of the quick connect fitting. Remove the retaining clip completely.

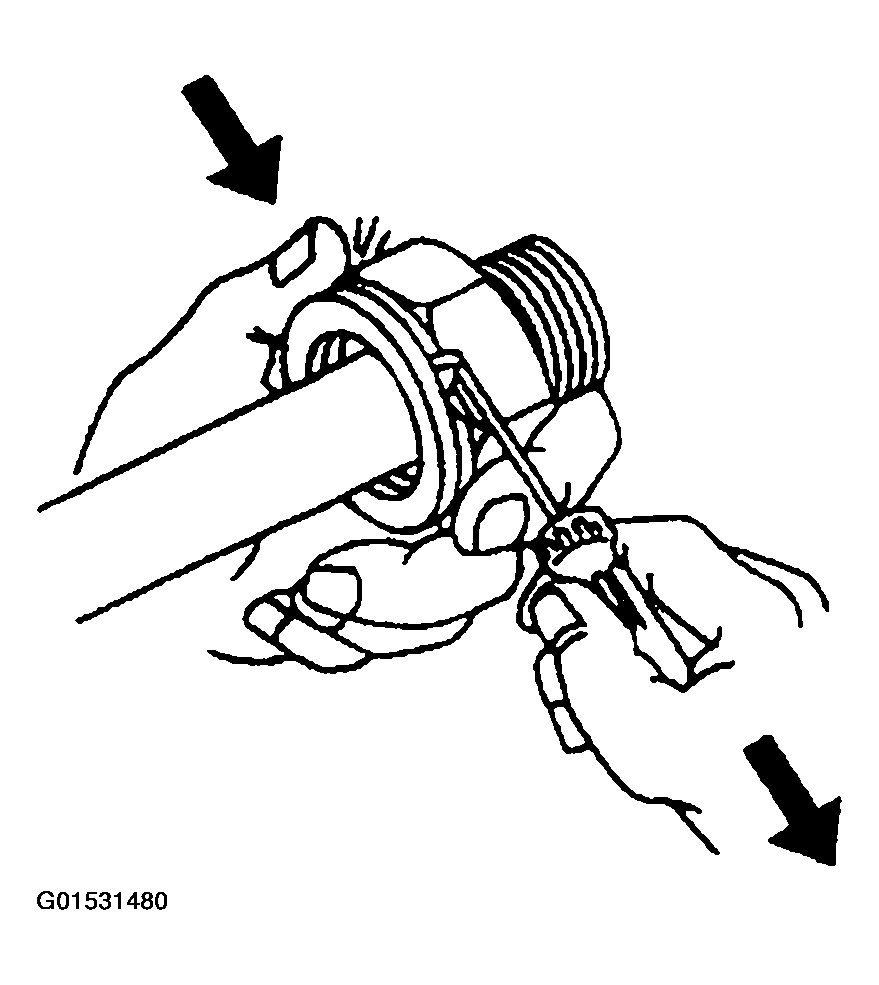

    Fig 1: Disengaging Other End Of Retaining Clip From Quick Connect Fitting
    G01531480Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the cooler line from the quick connect fitting.
    Fig 2: Disconnecting Cooler Line From Quick Connect Fitting
    G01531481Courtesy of GENERAL MOTORS CORP.
