Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Carefully install the fluid pressure manual valve position switch. Handle the switch carefully, the fluid pressure manual valve position switch is very delicate.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the control valve body bolts (375, 379 and 381) that mount the fluid pressure manual valve position switch to the control valve body (300).

    Tighten

    • Tighten the control valve body bolt (375) to 12 N.m (106 lb in).
    • Tighten the control valve body bolt (379) to 16 N.m (12 lb ft).
    • Tighten the control valve body bolt (381) to 8 N.m (70 lb in).
  3. Connect the transaxle wiring harness.
  4. Install the case side cover. Refer to CASE SIDE COVER REPLACEMENT   .

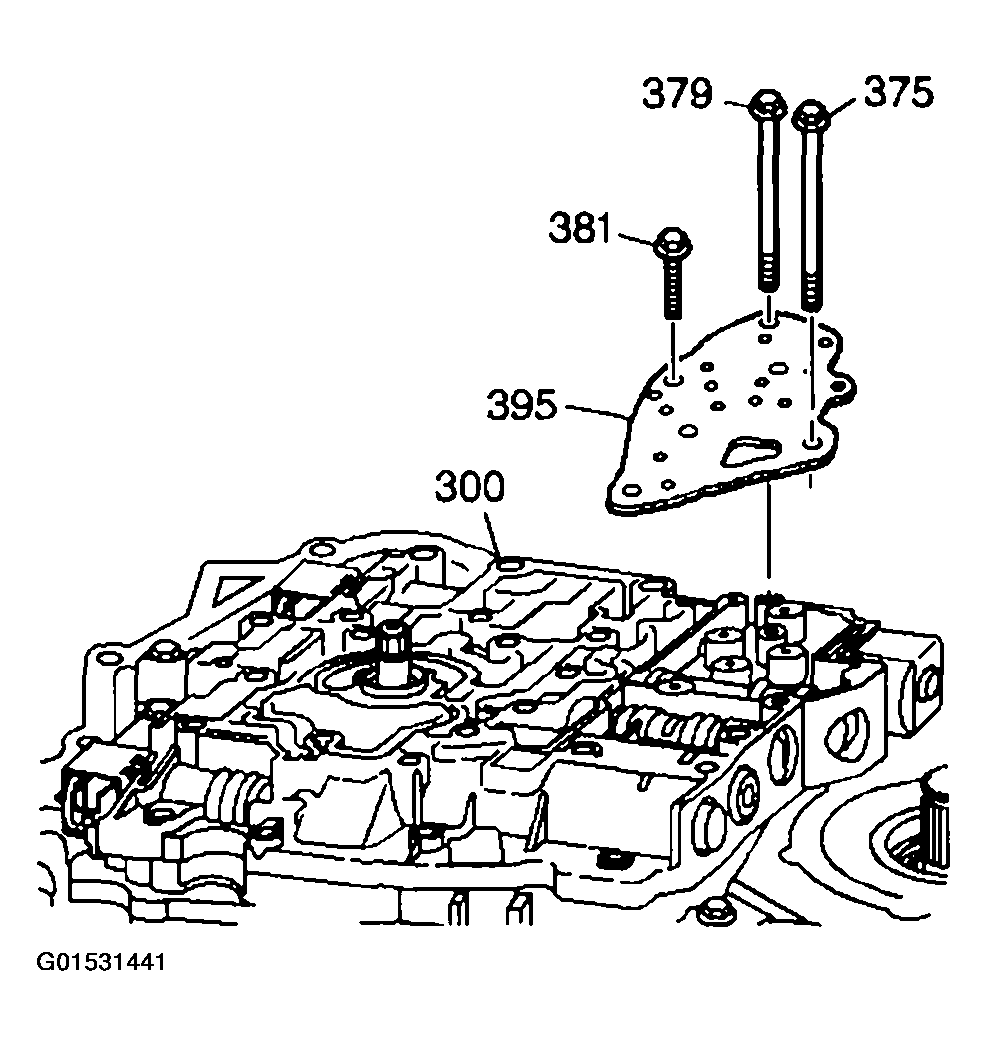

    Fig 1: Installing Control Valve Body Bolts
    G01531441Courtesy of GENERAL MOTORS CORP.
