Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to JACKING AND LIFTING in General Information.
  2. Remove the torque converter cover bolts.
  3. Remove the torque converter cover.

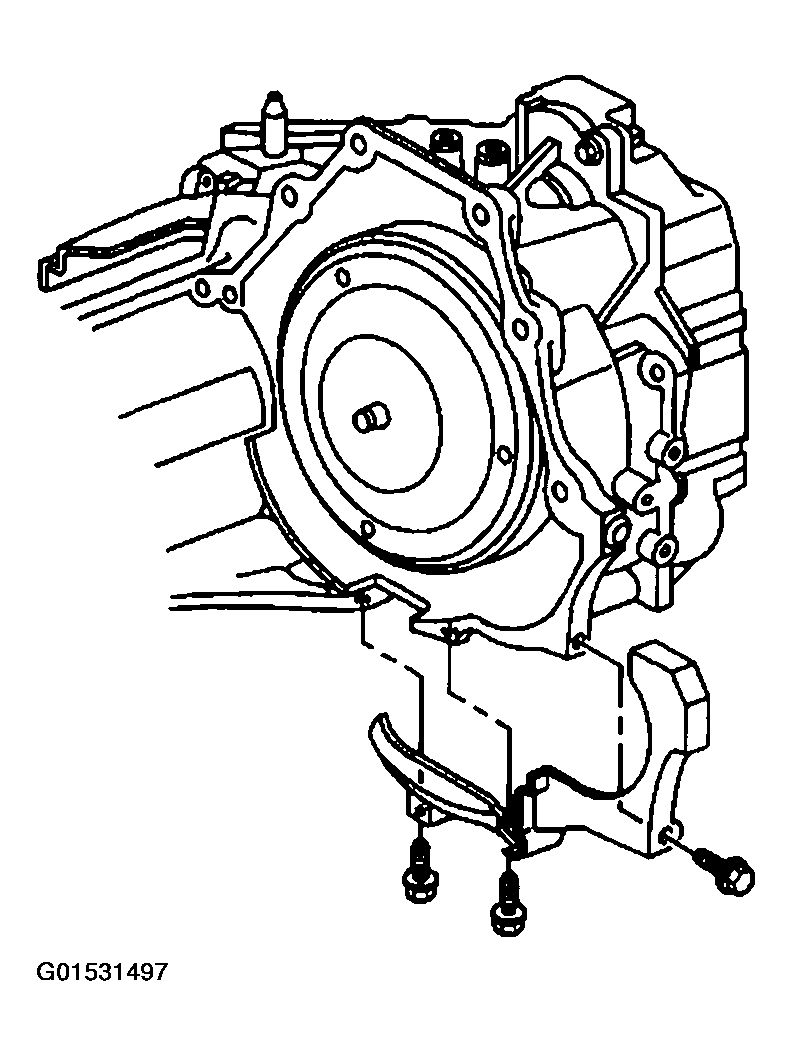

    Fig 1: Removing Torque Converter Cover Bolts And Cover
    G01531497Courtesy of GENERAL MOTORS CORP.
