Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the torque converter cover.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the torque converter cover bolts.

    Tighten

    Tighten the bolts to 10 N.m (89 lb in).

  3. Lower the vehicle.

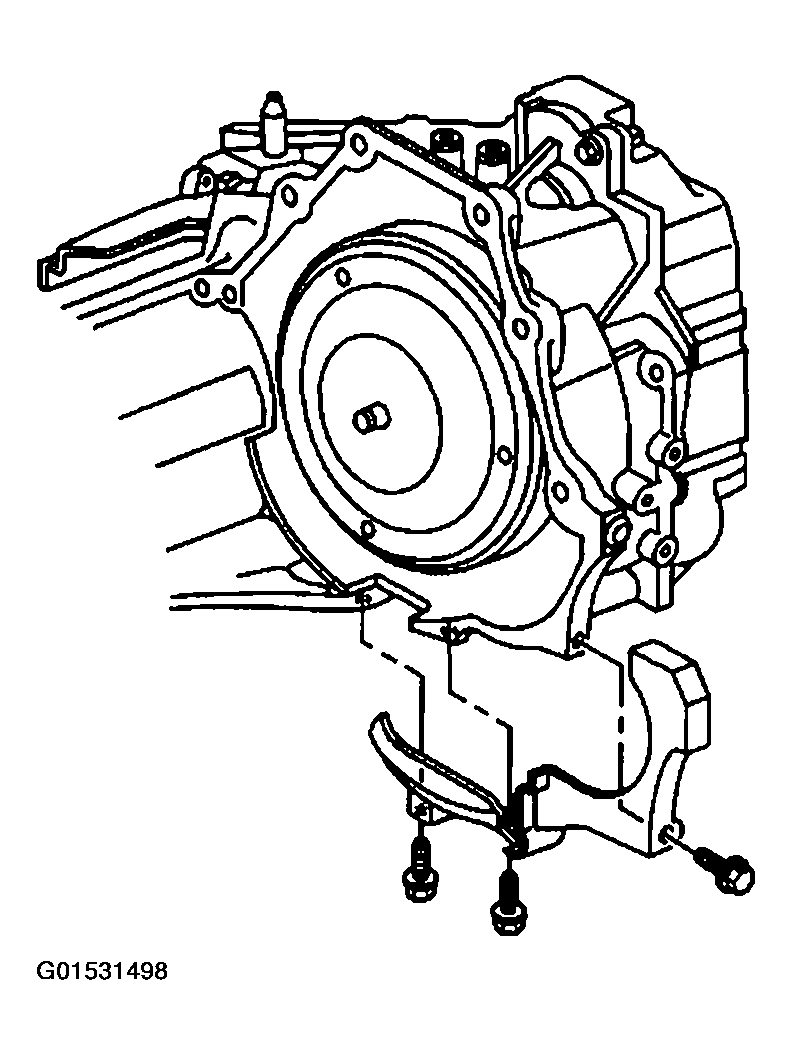

    Fig 1: Installing Torque Converter Cover Bolts And Cover
    G01531498Courtesy of GENERAL MOTORS CORP.
