Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the case side cover. Refer to CASE SIDE COVER REPLACEMENT  .
  2. Disconnect the transaxle wiring harness.
  3. Remove the torque converter clutch PWM solenoid (334).

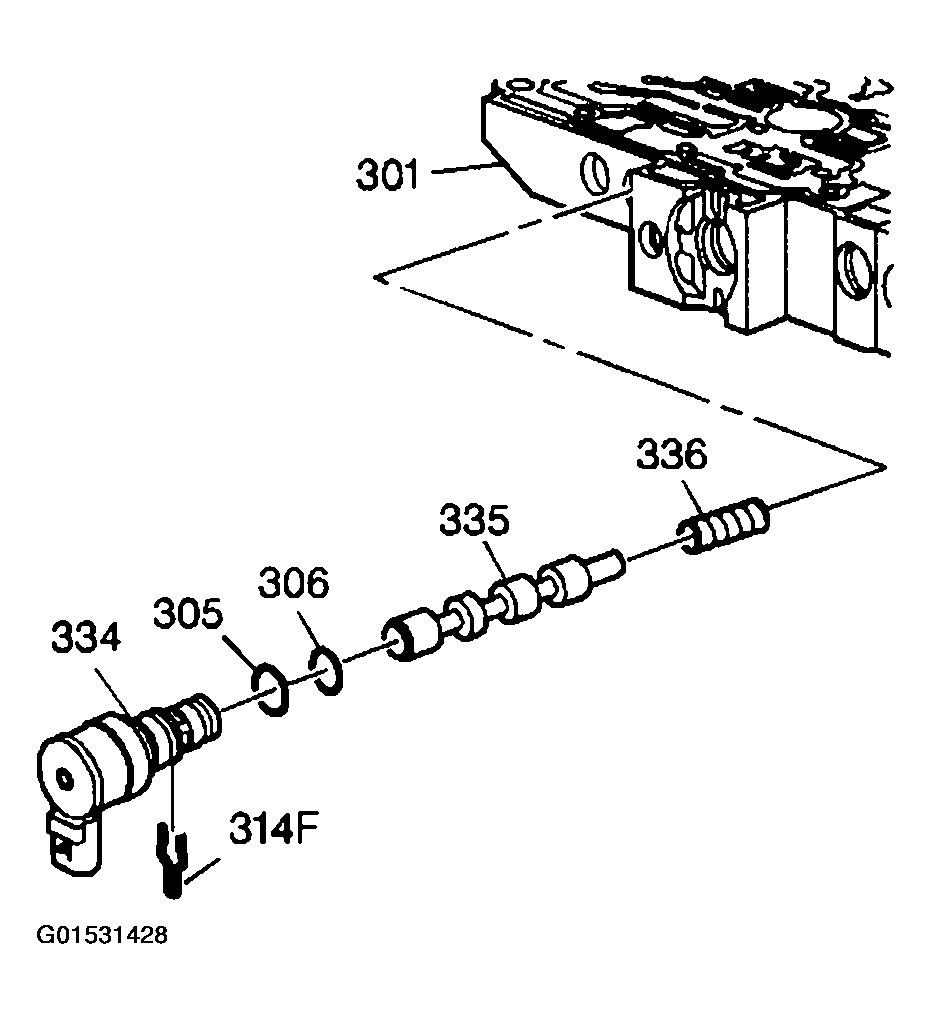

    Fig 1: Removing Torque Converter Clutch PWM Solenoid
    G01531428Courtesy of GENERAL MOTORS CORP.
