Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the pressure control solenoid (322).
  2. Connect the transaxle wiring harness.
  3. Install the case side cover. Refer to CASE SIDE COVER REPLACEMENT  .

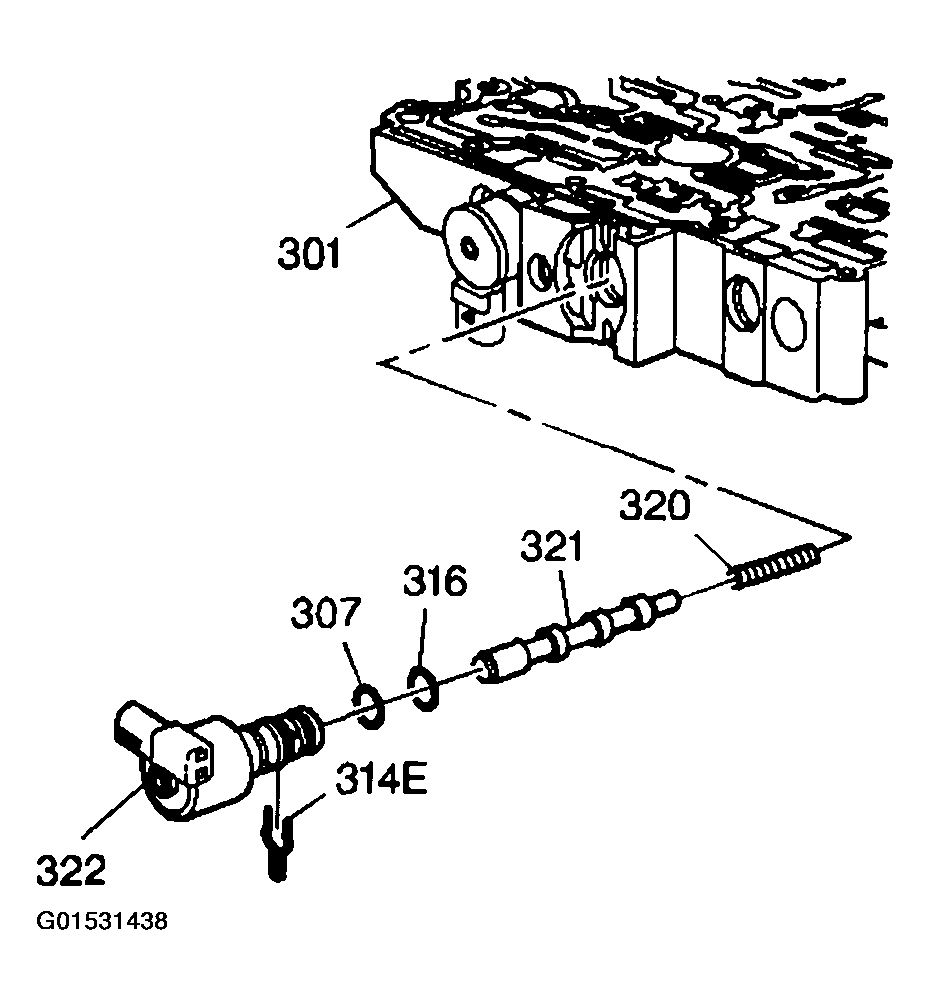

    Fig 1: Installing Pressure Control Solenoid
    G01531438Courtesy of GENERAL MOTORS CORP.
