Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply the parking brake.
  2. Block the wheels.
  3. Shift the transmission into Neutral.
  4. Remove the throttle body air inlet duct. Refer to ENGINE CONTROLS - REMOVAL & INSTALLATION & OVERHAUL  in Removal and Installation in Engine Performance.
  5. Use a flat-bladed tool in order to remove the automatic transaxle range selector cable from the cable lever.

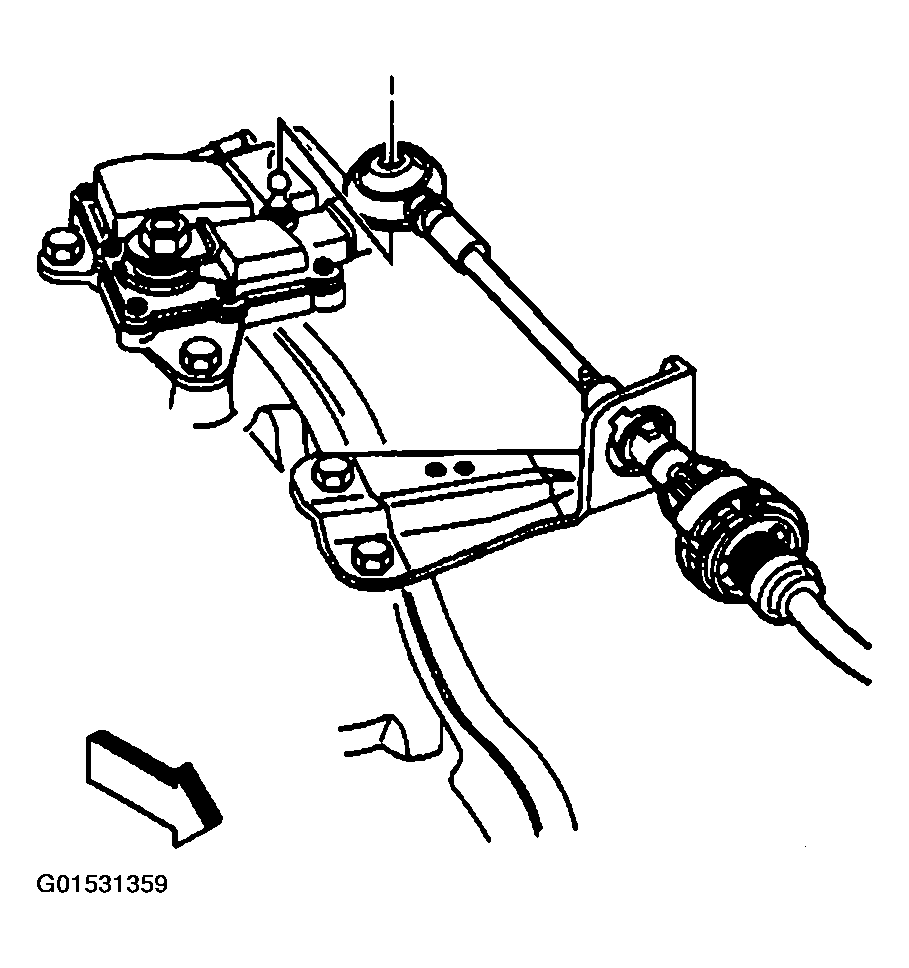

    Fig 1: Removing Automatic Transaxle Range Selector Cable From Cable Lever
    G01531359Courtesy of GENERAL MOTORS CORP.
  6. Remove the electrical connectors.
  7. Remove the automatic transaxle range selector lever. Refer to AUTOMATIC TRANSMISSION RANGE SELECTOR CABLE LEVER REPLACEMENT   .

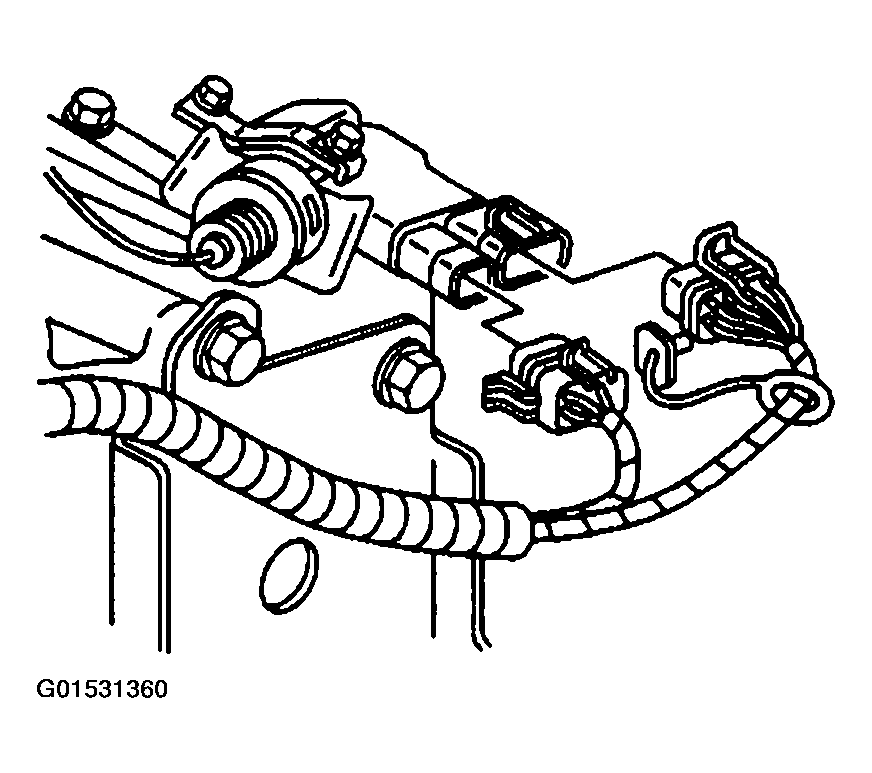

    Fig 2: Removing Electrical Connectors
    G01531360Courtesy of GENERAL MOTORS CORP.
  8. Remove the PNP switch bolts.
  9. Remove the PNP switch.

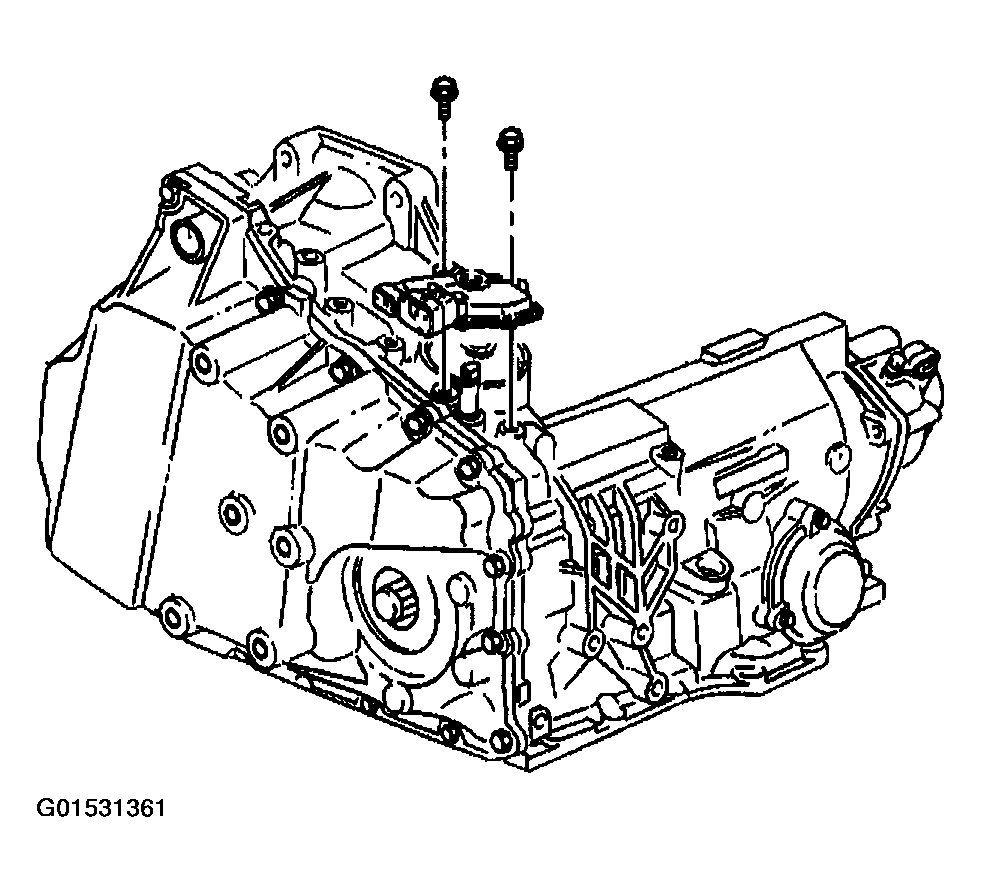

    Fig 3: Removing PNP Switch
    G01531361Courtesy of GENERAL MOTORS CORP.
