Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the case side cover. Refer to CASE SIDE COVER REPLACEMENT  .
    NOTE: Do NOT remove the three bolts which hold the pump together.
  2. Remove the oil pump bolts (205-207).

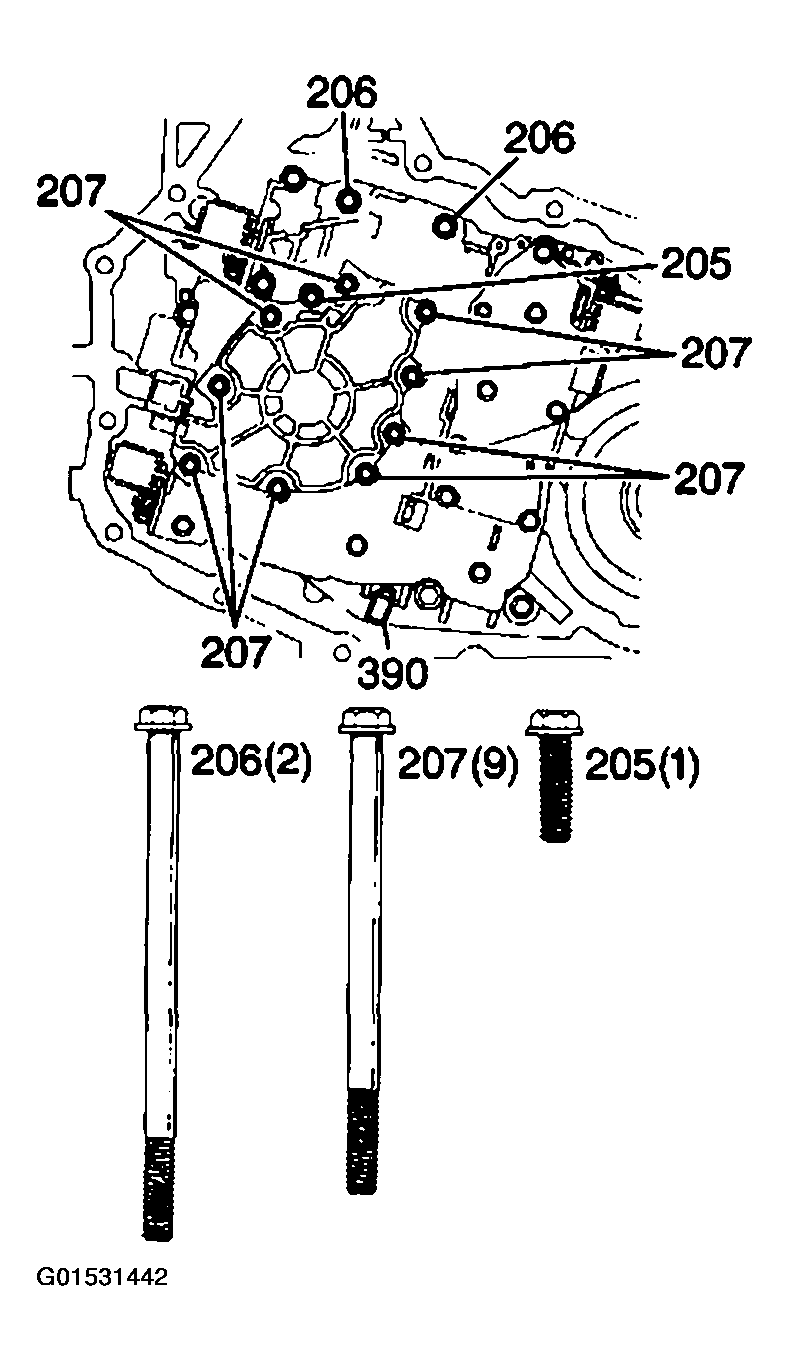

    Fig 1: Removing Oil Pump Bolts
    G01531442Courtesy of GENERAL MOTORS CORP.
  3. Remove the oil pump (200) from the valve body (300).
  4. Clean and inspect the oil pump.

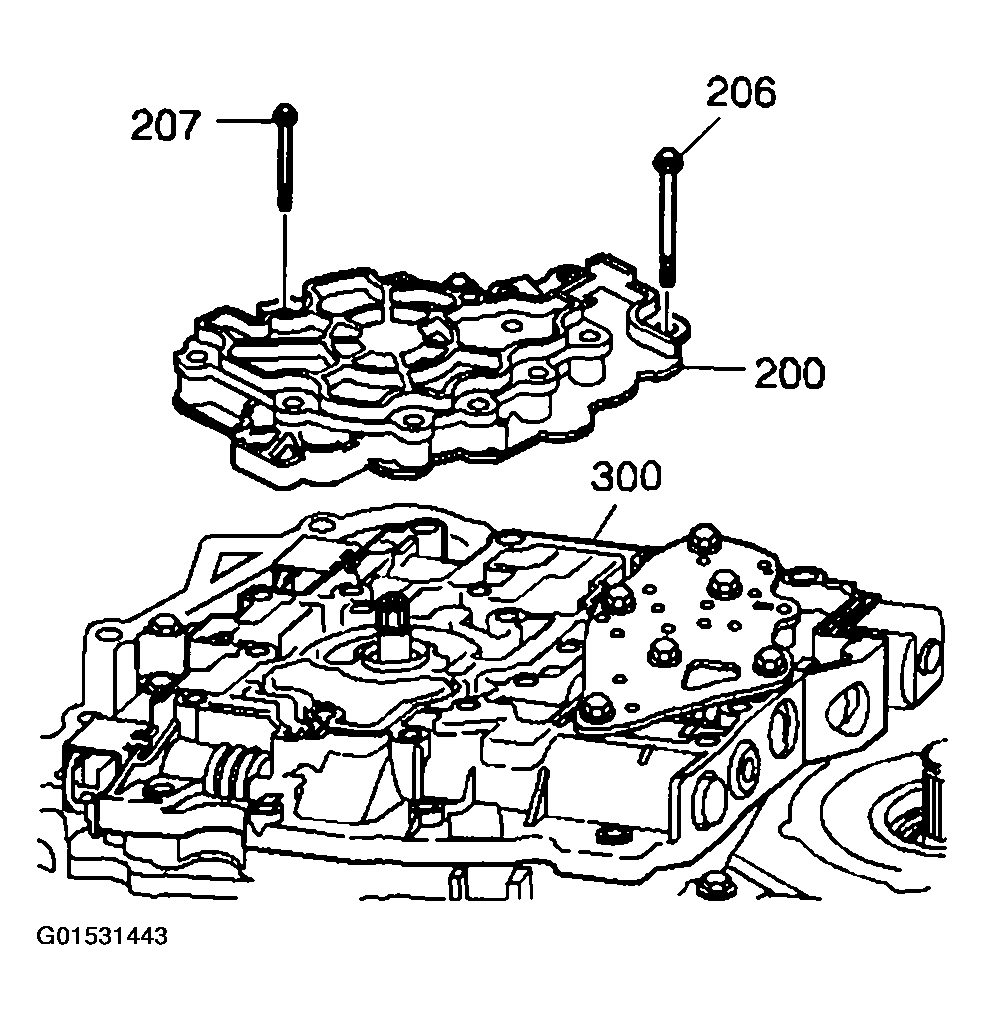

    Fig 2: Removing Oil Pump From Valve Body
    G01531443Courtesy of GENERAL MOTORS CORP.
