Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the oil pan gasket (25).
  2. Install the oil pan (24).
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the oil pan bolts (23).

    Tighten

    Tighten the oil pan bolts (23) to 14 N.m (10 lb ft).

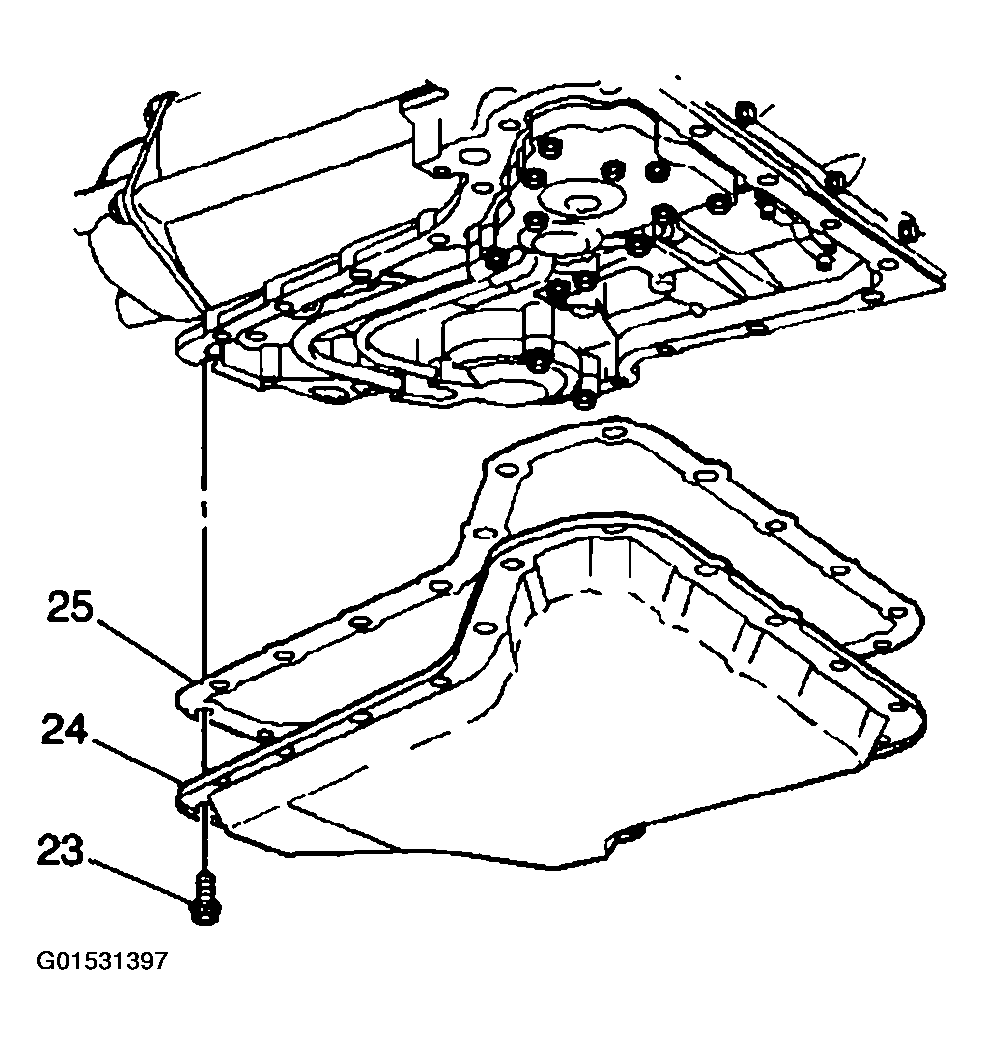

    Fig 1: Installing Oil Pan, Oil Pan Gasket And Oil Pan Bolts
    G01531397Courtesy of GENERAL MOTORS CORP.
  4. Lower the vehicle.
    NOTE: Do NOT overfill the transaxle. The overfilling of the transaxle causes foaming, loss of fluid, shift complaints, and possible damage to the transaxle.
  5. Adjust the fluid level. Refer to the following information.
  6. Inspect for fluid leaks.
