Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the case side cover. Refer to CASE SIDE COVER REPLACEMENT  .
  2. Disconnect the transaxle wiring harness.
  3. Remove the input speed sensor clip (441) from the case cover.
  4. Remove the input speed sensor (440) from the case cover.

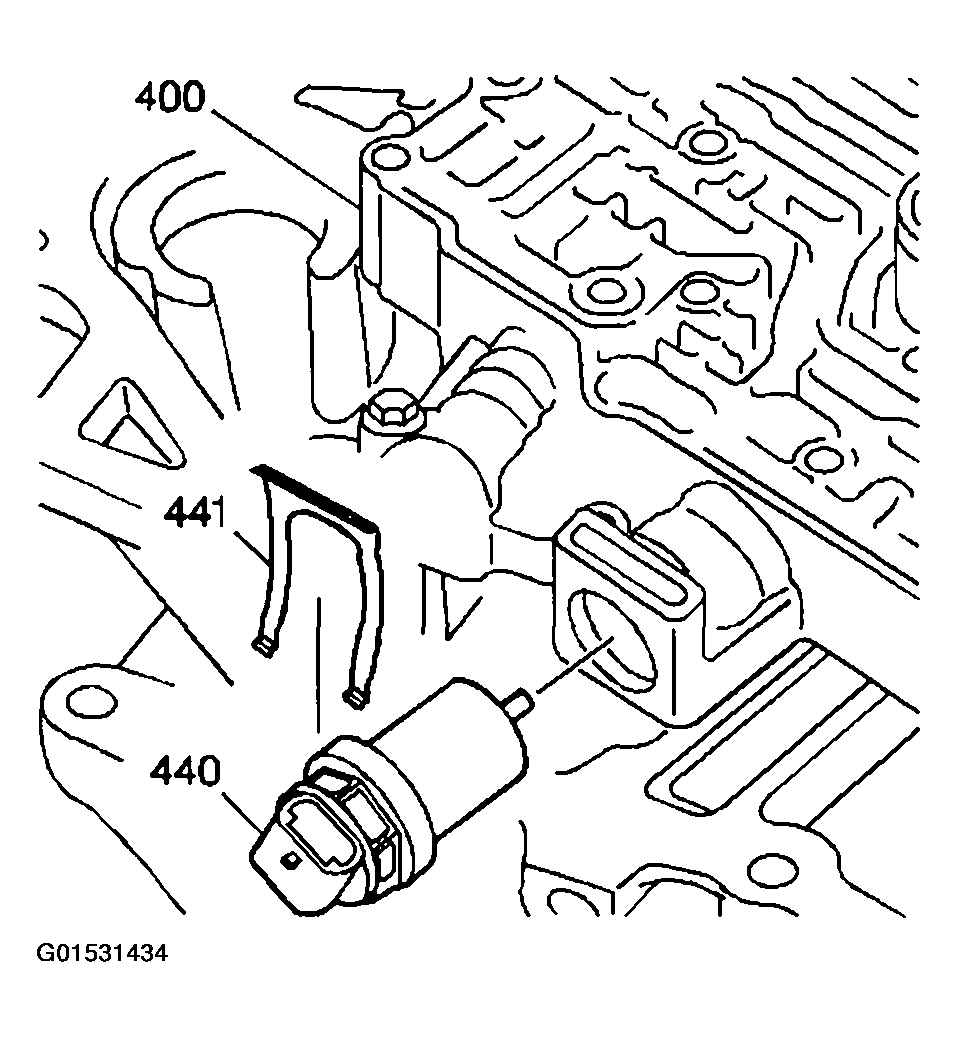

    Fig 1: Removing Input Speed Sensor Clip And Input Speed Sensor
    G01531434Courtesy of GENERAL MOTORS CORP.
  5. Inspect the input speed sensor (440) for the following conditions:
    • Damaged or missing magnet
    • Damaged housing
    • Bent or missing electrical terminals
    • Damaged speed sensor clip (441)
    Fig 2: Inspecting Input Speed Sensor
    G01531435Courtesy of GENERAL MOTORS CORP.
