Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the input speed sensor (440) into the case cover.
  2. Install the input speed sensor clip (441) into the case cover.
  3. Connect the transaxle wiring harness.
  4. Install the case side cover. Refer to CASE SIDE COVER REPLACEMENT  .

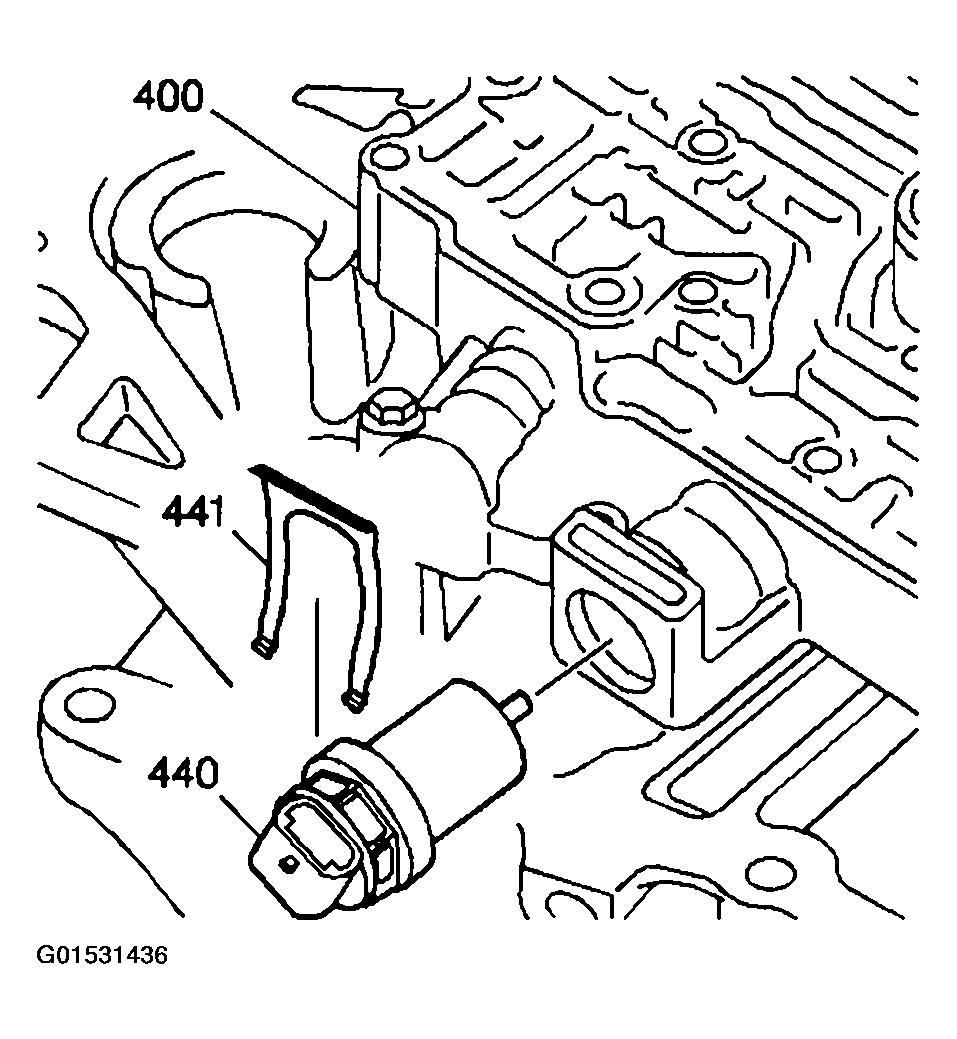

    Fig 1: Installing Input Speed Sensor Clip And Input Speed Sensor
    G01531436Courtesy of GENERAL MOTORS CORP.
