Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the engine support fixture. Refer to ENGINE SUPPORT FIXTURE  in Engine Mechanical - 3.4L.
  2. Raise and support the vehicle. Refer to JACKING AND LIFTING in General Information.
  3. Remove the stabilizer shaft. Refer to STABILIZER SHAFT REPLACEMENT  in Front Suspension.

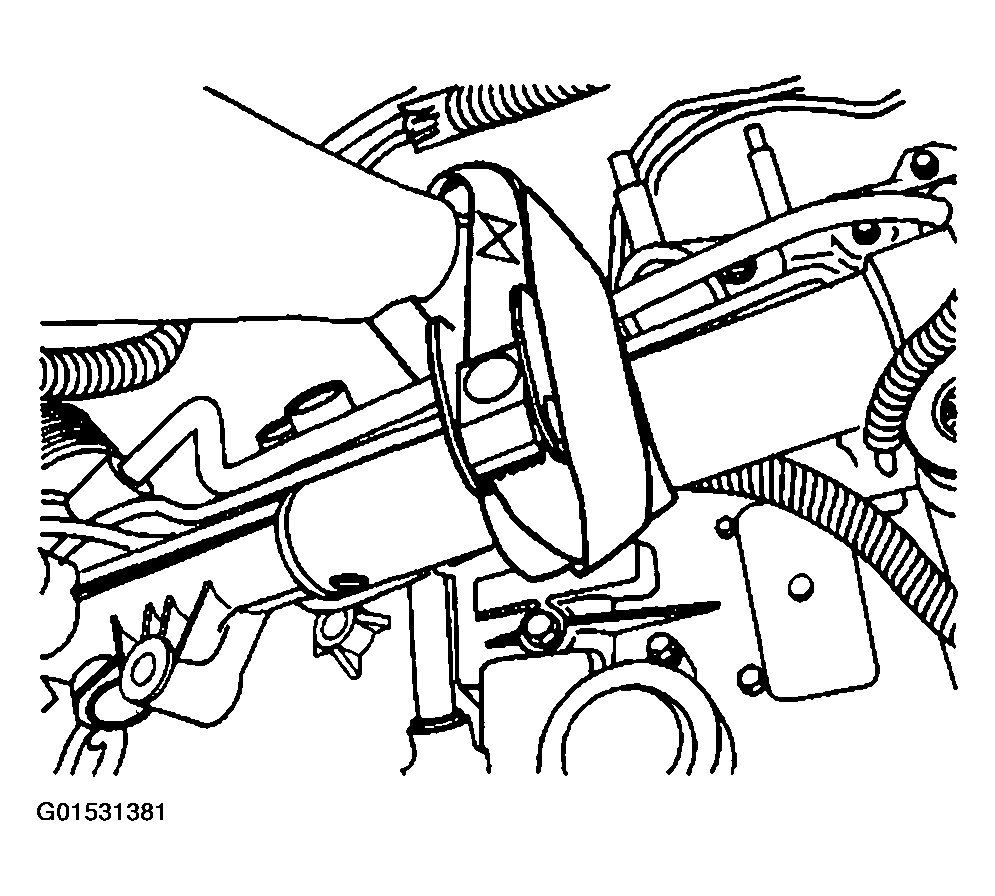

    Fig 1: Removing Power Steering Gear Heat Shield
    G01531381Courtesy of GENERAL MOTORS CORP.
  4. Remove the power steering gear heat shield.
  5. Remove the power steering gear from the frame. Refer to POWER STEERING GEAR REPLACEMENT  in Power Steering System.
  6. Use a strap in order to secure the power steering gear to the exhaust manifold.
  7. Remove the power steering cooler line clamps from the frame. Refer to POWER STEERING COOLER PIPE/HOSE REPLACEMENT  in Power Steering System.
  8. Use wire in order to secure the power steering cooler line to an engine component.
  9. Remove the engine mount nuts. Refer to ENGINE MOUNT REPLACEMENT  in Engine Mechanical - 3.4L.
  10. Remove the transaxle mount nuts. Refer to AUTOMATIC TRANSMISSION MOUNT REPLACEMENT   .
  11. Use a utility stand in order to support the frame front.
  12. Use a utility stand in order to support the frame rear.
  13. Remove the frame bolts.
  14. Use the utility stand in order to lower the frame rear for access to the forward servo cover.
  15. Position a drain pan under the forward servo cover.
  16. Remove the forward band servo cover bolts.
  17. Remove the forward servo cover.
  18. Remove the forward servo cover O-ring.
  19. Remove the servo piston assembly.
  20. Remove the servo spring.

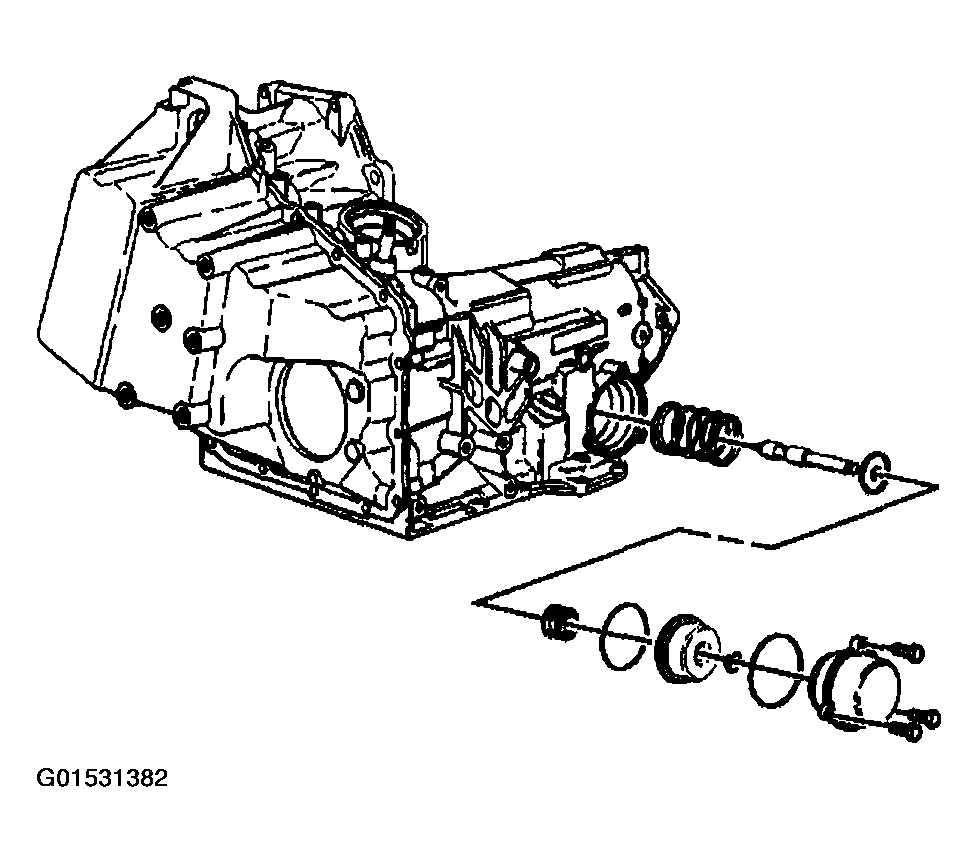

    Fig 2: Removing Forward Band Servo Cover Bolts, Cover, Cover O-Ring, Piston Assembly And Spring
    G01531382Courtesy of GENERAL MOTORS CORP.
