Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the servo spring.
  2. Install the servo piston assembly.
  3. Install the forward servo cover O-ring.
  4. Install the forward servo cover.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  5. Install the forward band servo cover bolts.

    Tighten

    Tighten the bolts to 12 N.m (106 lb in).

  6. Remove the drain pan from under the forward servo cover.

    Important  : Ensure that the power steering cooler line does not become trapped or damaged during this step.

  7. Use the utility stand in order to raise the frame rear.
  8. Install the NEW frame bolts.
  9. Adjust the utility straps as necessary in order to align the powertrain mounts with the frame.
  10. Install the transaxle mount nuts. Refer to AUTOMATIC TRANSMISSION MOUNT REPLACEMENT   .
  11. Install the engine mount nuts. Refer to ENGINE MOUNT REPLACEMENT  in Engine Mechanical - 3.4L.
  12. Install the power steering gear to the frame. Refer to POWER STEERING GEAR REPLACEMENT  in Power Steering System.
  13. Install the power steering gear heat shield.

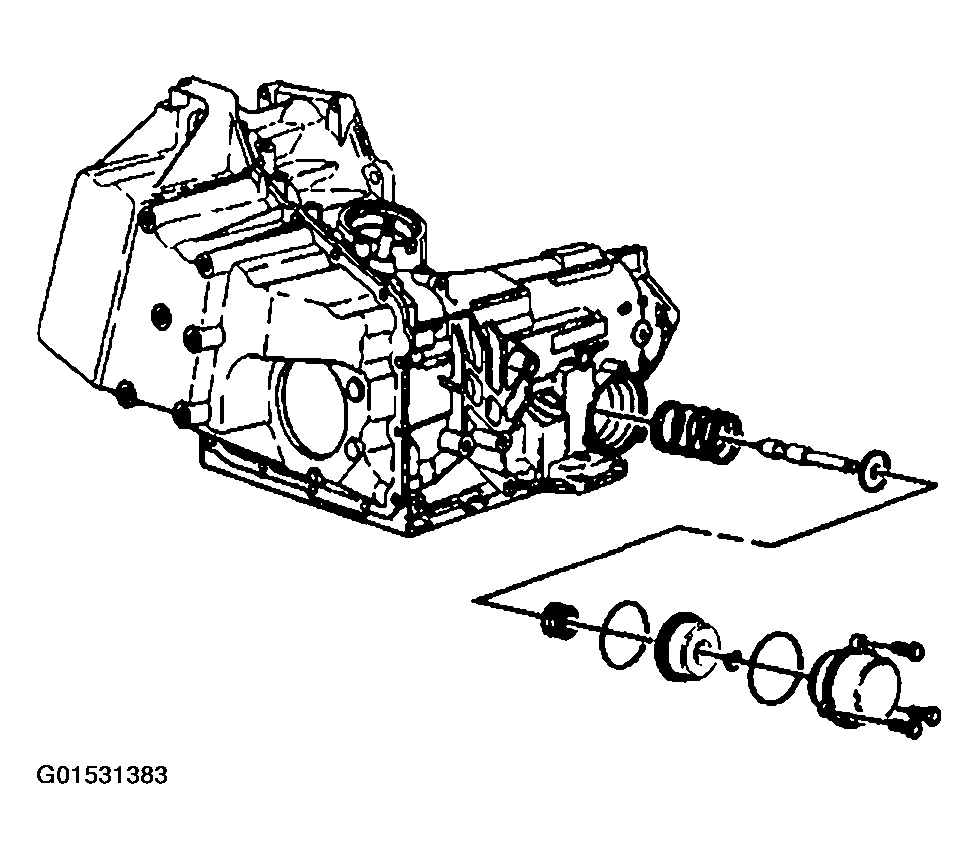

    Fig 1: Installing Forward Band Servo Cover Bolts, Cover, Cover O-Ring, Piston Assembly And Spring
    G01531383Courtesy of GENERAL MOTORS CORP.
  14. Install the stabilizer shaft. Refer to STABILIZER SHAFT REPLACEMENT  in Front Suspension.
  15. Lower the vehicle.
  16. Remove the engine support fixture. Refer to ENGINE SUPPORT FIXTURE  in Engine Mechanical - 3.4L.
  17. Adjust the fluid level. Refer to the following information:
