Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Install the flywheel to torque converter bolts.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Use the J 37623 to hold the flywheel.
Tighten

Tighten the bolts to 63 N.m (47 lb ft).

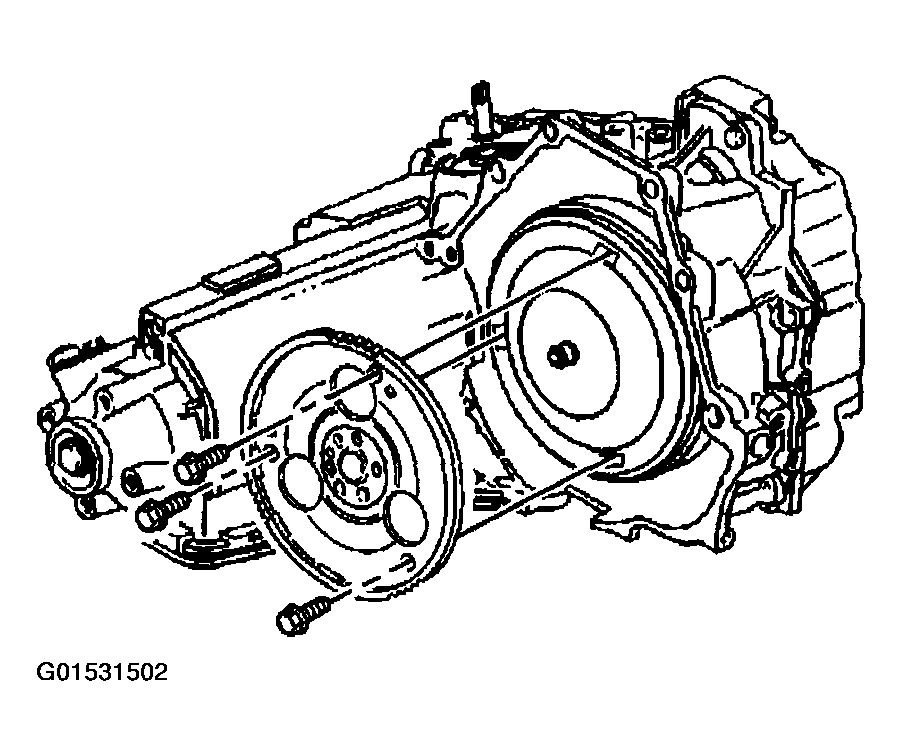

Fig 1: Installing Flywheel To Torque Converter Bolts
Courtesy of GENERAL MOTORS CORP.
Install the torque converter cover. Refer to TORQUE CONVERTER COVER REPLACEMENT .
Lower the vehicle.

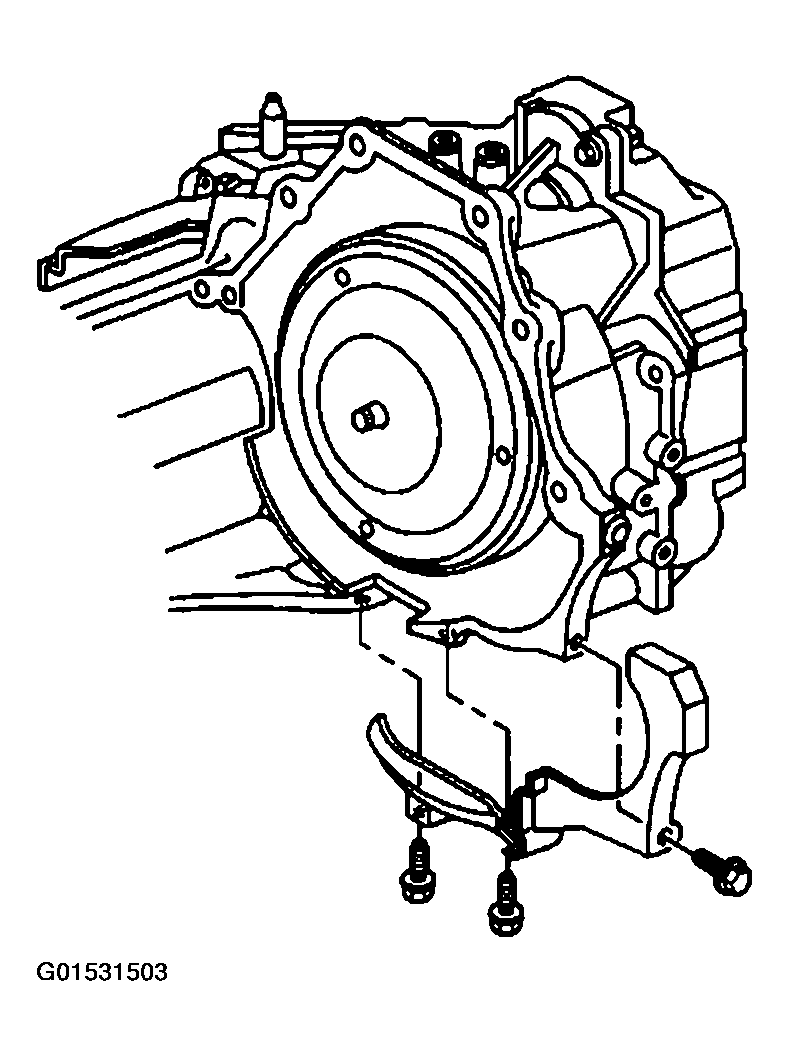

Fig 2: Installing Torque Converter Cover
Courtesy of GENERAL MOTORS CORP.
