Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the case side cover. Refer to CASE SIDE COVER REPLACEMENT  .
  2. Remove the wiring harness assembly from the fluid temperature sensor (391).
  3. Remove the fluid temperature sensor (391).

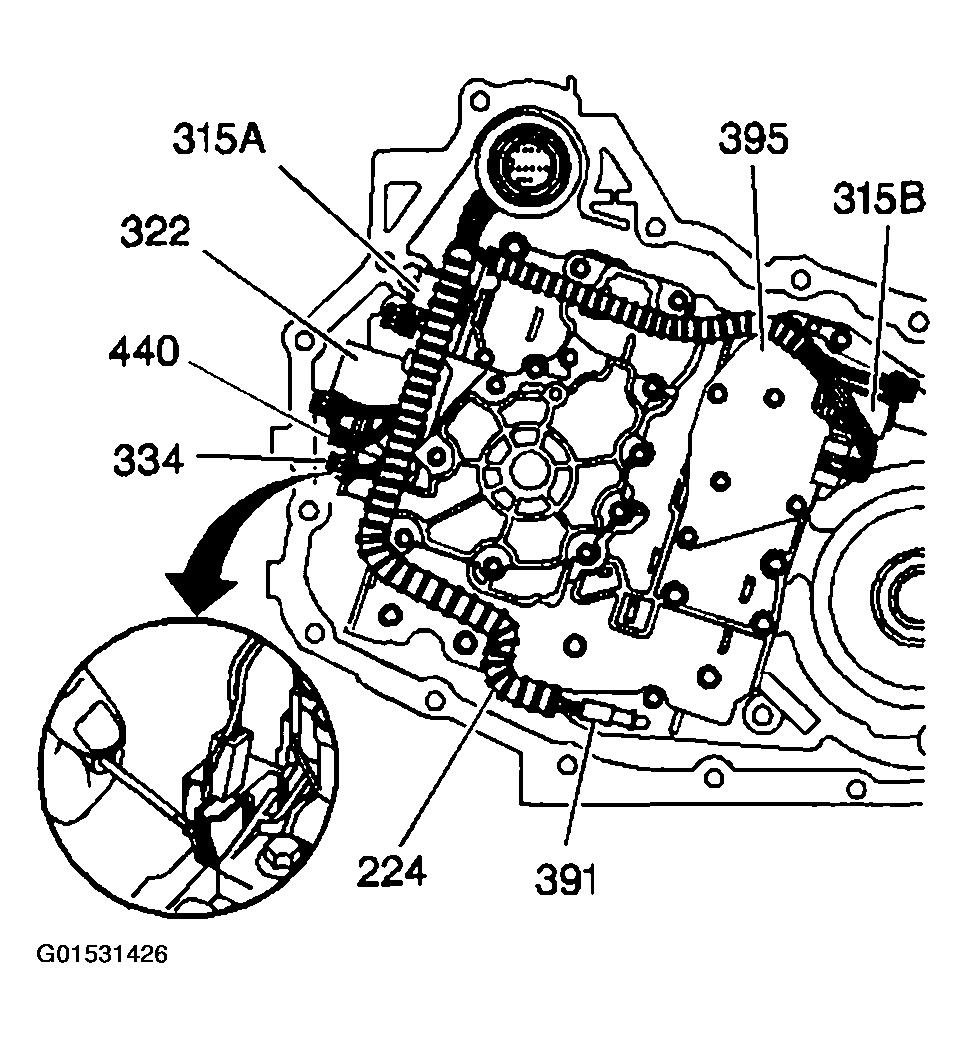

    Fig 1: Removing Fluid Temperature Sensor
    G01531426Courtesy of GENERAL MOTORS CORP.
