Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the fluid temperature sensor (391).
  2. Install the wiring harness assembly to the fluid temperature sensor (391).
  3. Install the case side cover. Refer to CASE SIDE COVER REPLACEMENT  .

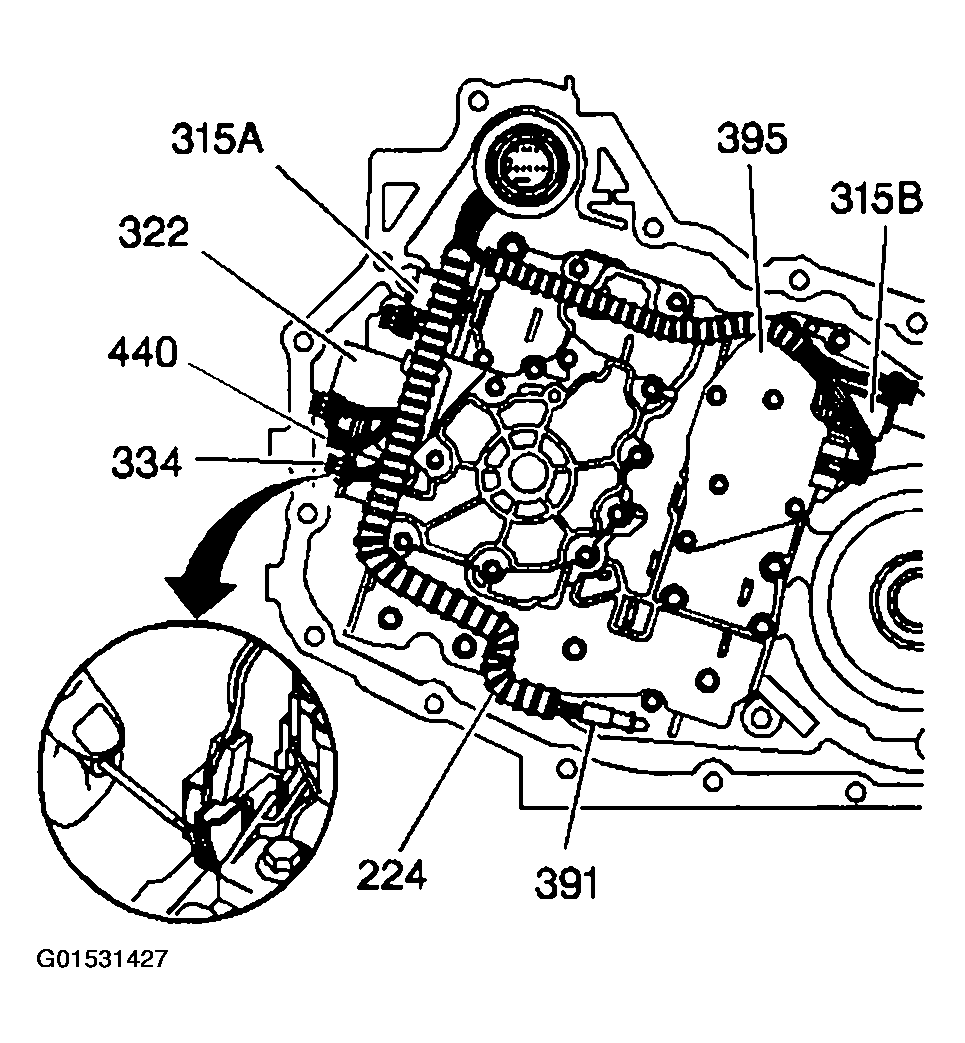

    Fig 1: Installing Fluid Temperature Sensor
    G01531427Courtesy of GENERAL MOTORS CORP.
