Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Assemble the sun gear thrust bearing (698), the differential carrier sun gear (697), the park gear (696), the internal gear thrust bearing (695) and the sun gear shaft (689) into the differential carrier (700).

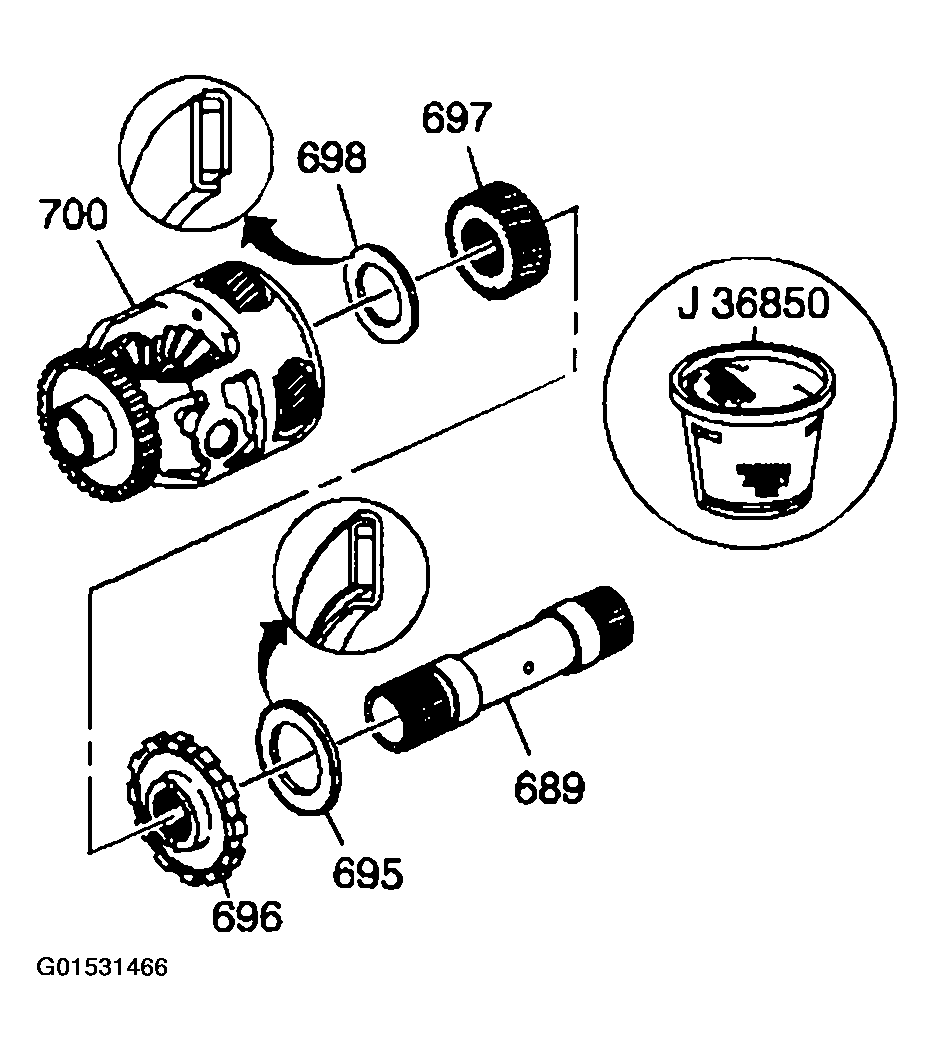

    Fig 1: Assembling Thrust Bearing, Sun Gear, Park Gear, And Sun Gear Shaft
    G01531466Courtesy of GENERAL MOTORS CORP.
  2. Install the differential carrier into the case.
  3. Install the case extension housing. Refer to CASE EXTENSION HOUSING REPLACEMENT  .

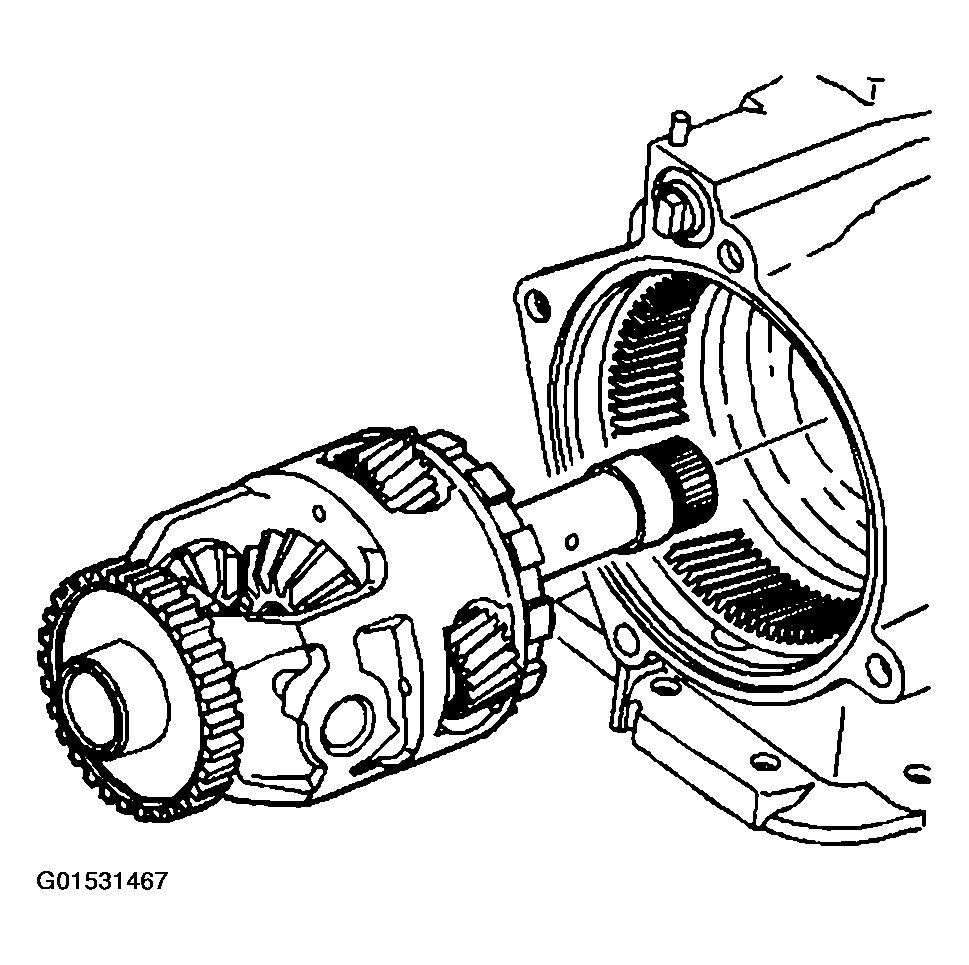

    Fig 2: Installing Differential Carrier Into Case
    G01531467Courtesy of GENERAL MOTORS CORP.
