Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil indicator from the filler tube.
  2. Remove the air cleaner assembly. Refer to ENGINE CONTROLS - REMOVAL & INSTALLATION & OVERHAUL  in Removal and Installation in Engine Performance.
  3. Remove the retaining nut from the EGR at the top of the filler tube.
  4. Remove the lower retaining bolt at the base of the filler tube.
  5. Remove the fluid filler tube.

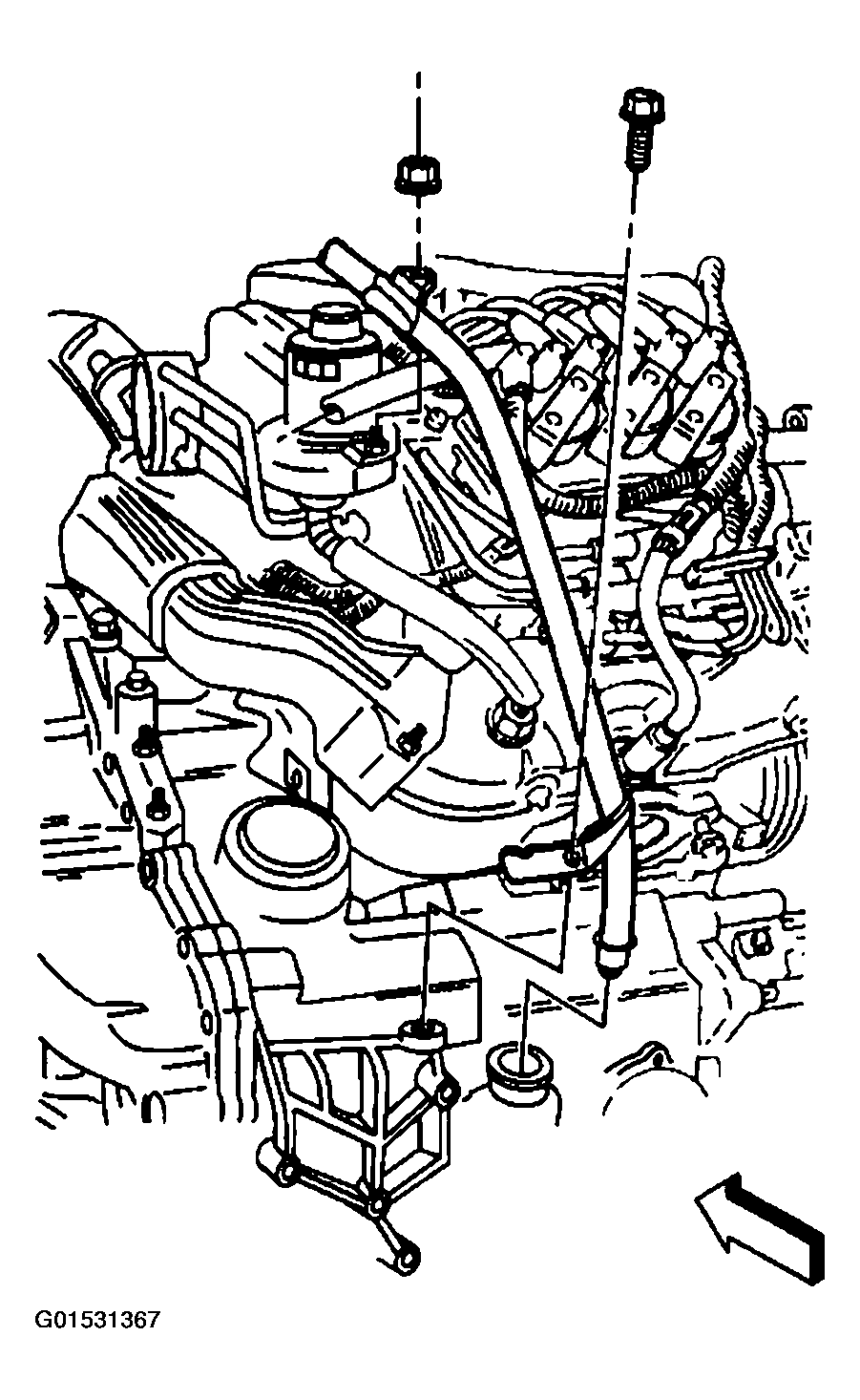

    Fig 1: Removing Lower And Upper Filler Tube Retaining Bolt And Filler Tube
    G01531367Courtesy of GENERAL MOTORS CORP.
  6. Remove the fluid filler tube seal.
    Fig 2: Removing Fluid Filler Tube Seal
    G01531368Courtesy of GENERAL MOTORS CORP.
