Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. If removed, install the drive axle seal.
  2. Install the case extension housing (6) with the axle seal and with the O-ring (8).
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the case extension housing bolts (5).

    Tighten

    Tighten the bolts (5) to 36 N.m (27 lb ft).

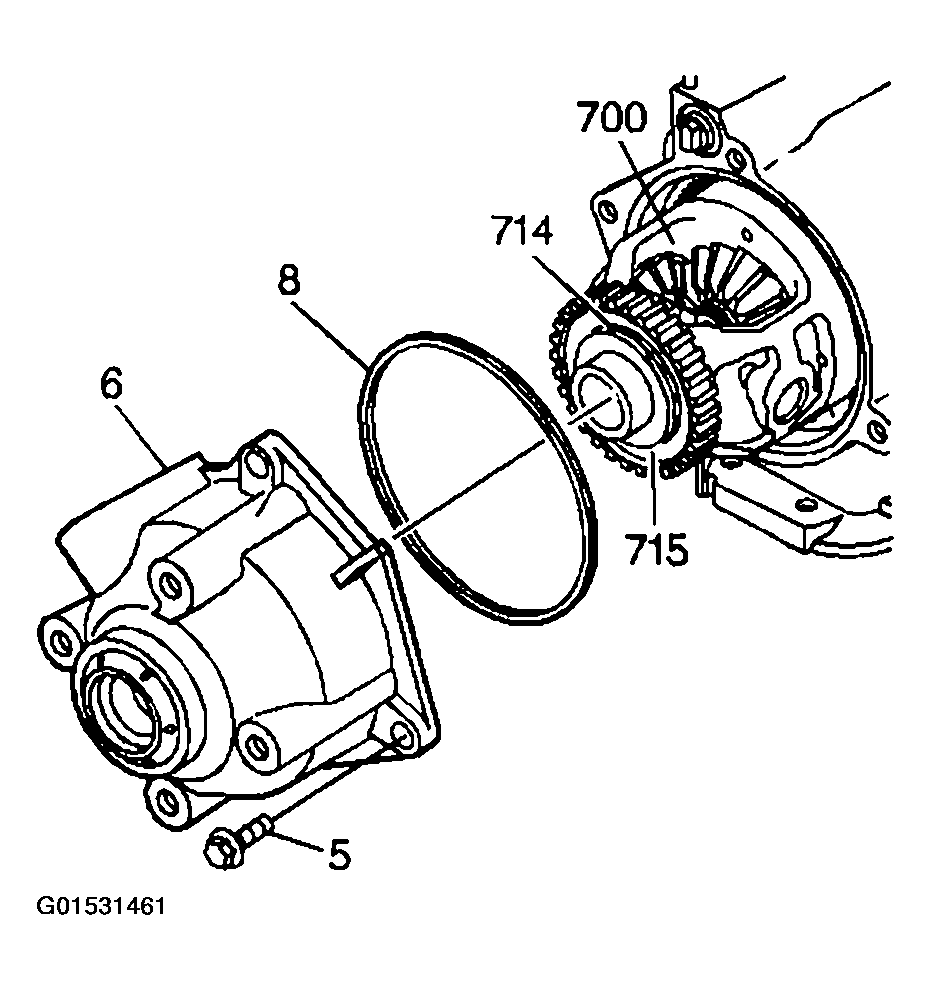

    Fig 1: Installing Case Extension Housing With Axle Seal And O-Ring
    G01531461Courtesy of GENERAL MOTORS CORP.
  4. Install the vehicle speed sensor. Refer to INPUT SPEED SENSOR REPLACEMENT  .
  5. Install the transaxle brace. Refer to AUTOMATIC TRANSMISSION BRACE REPLACEMENT  .
  6. Connect the right drive axle to the transaxle. Refer to AXLE SHAFT in Wheel Drive Shafts.
  7. Lower the vehicle.
    NOTE: Do NOT overfill the transaxle. The overfilling of the transaxle causes foaming, loss of fluid, shift complaints, and possible damage to the transaxle.
  8. Adjust the fluid level. Refer to the following information.
  9. Inspect for completion of the repairs.
  10. Inspect for fluid leaks.
