Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Properly route the automatic transaxle range selector cable through the engine compartment.

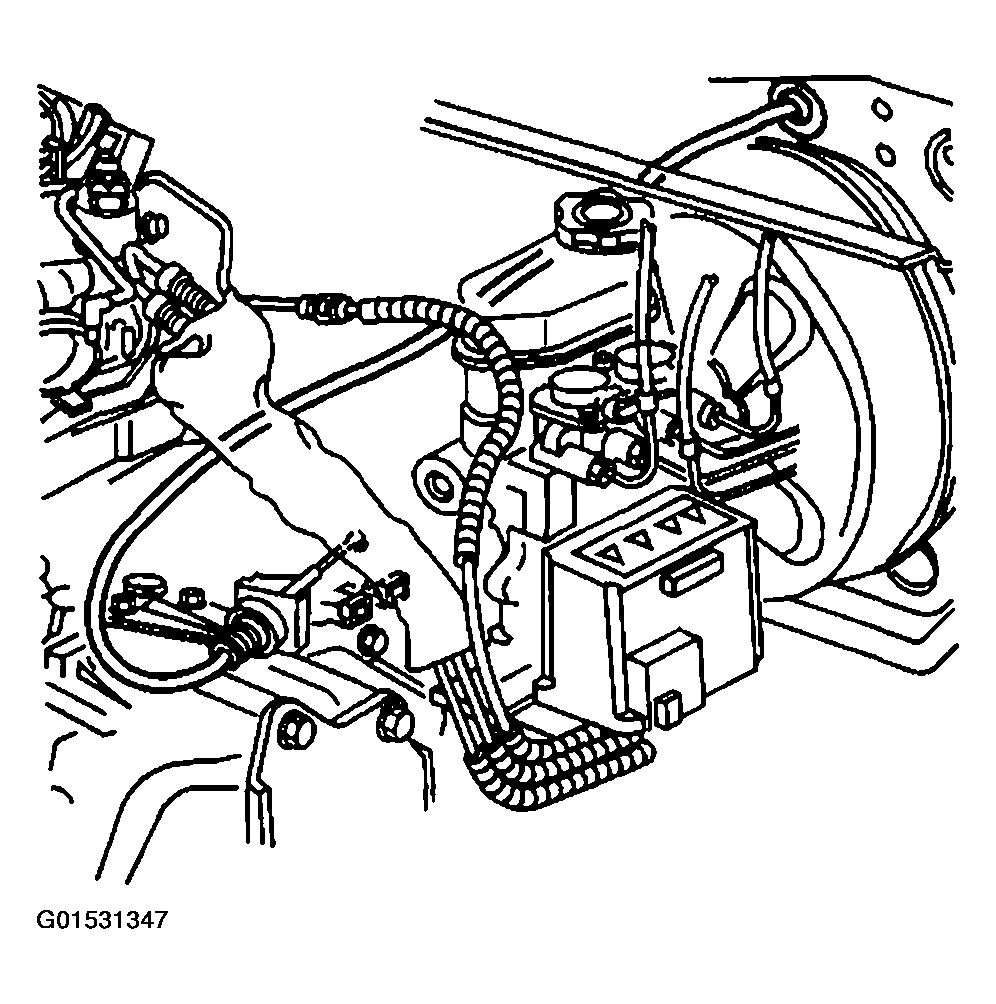

    Fig 1: Routing Automatic Transaxle Range Selector Cable Through Engine Compartment
    G01531347Courtesy of GENERAL MOTORS CORP.
  2. Install the automatic transaxle range selector cable through the cowl.

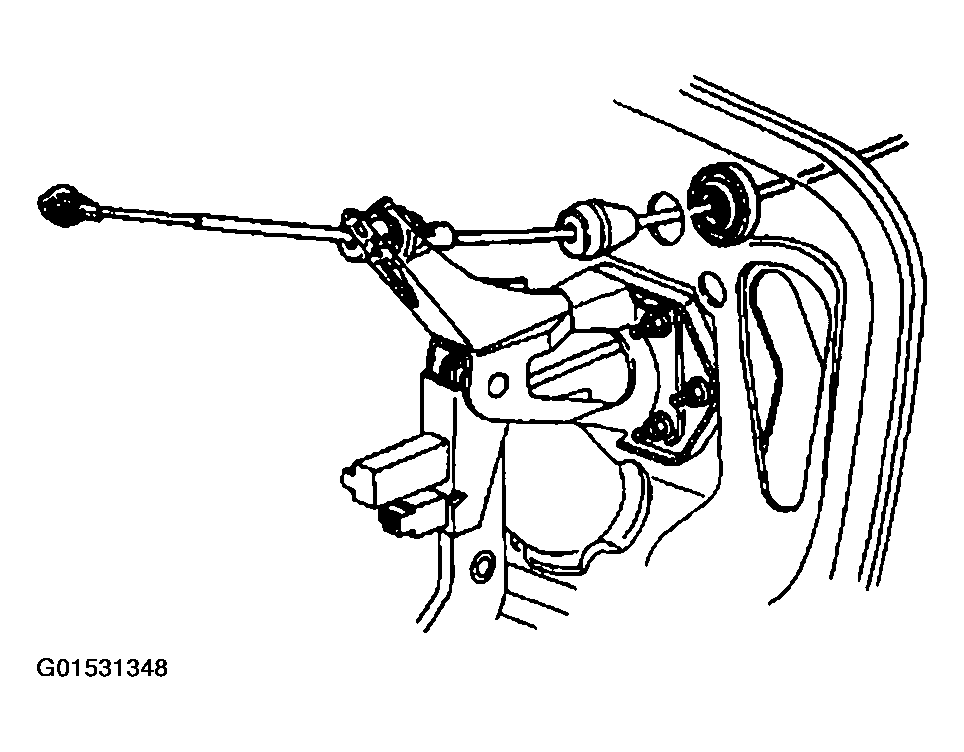

    Fig 2: Installing Automatic Transaxle Range Selector Cable Through Cowl
    G01531348Courtesy of GENERAL MOTORS CORP.
  3. Install the automatic transaxle range selector cable to the steering column bracket.
    Fig 3: Installing Automatic Transaxle Range Selector Cable To Steering Column Bracket
    G01531349Courtesy of GENERAL MOTORS CORP.
  4. Install the retaining clip to the automatic transaxle range selector cable.
  5. Install the automatic transaxle range selector cable to the column control lever.
  6. Install the knee bolster. Refer to KNEE BOLSTER REPLACEMENT  in Instrument Panel, Gages and Console.

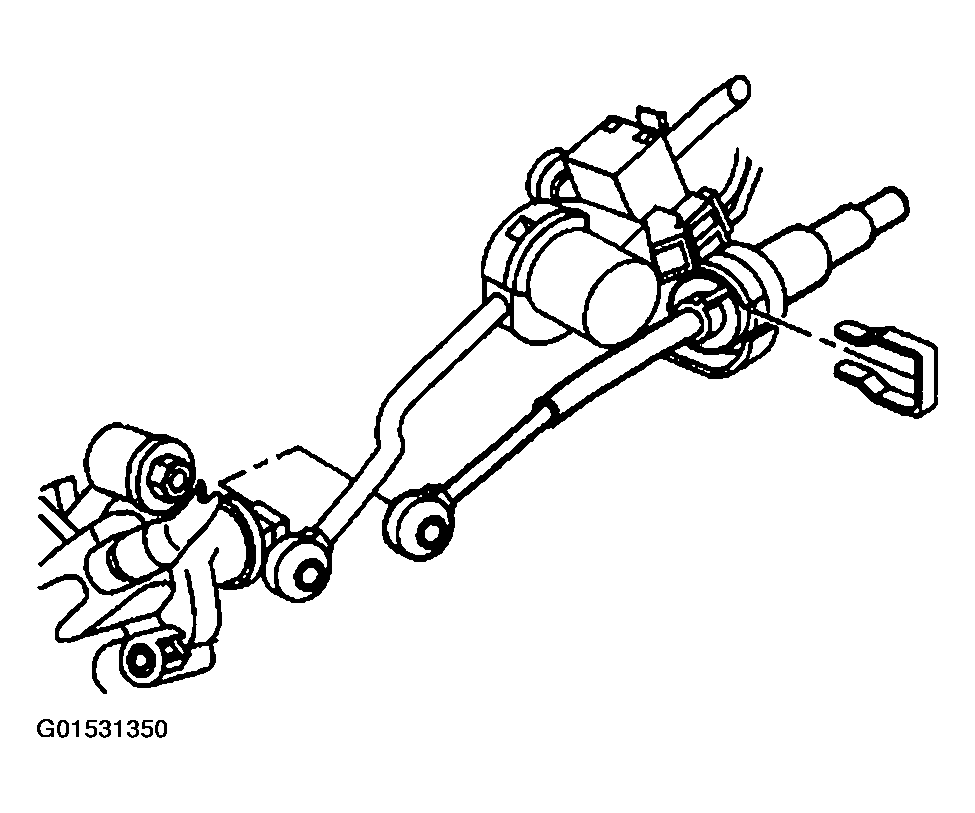

    Fig 4: Installing Retaining Clip To Automatic Transaxle Range Selector Cable
    G01531350Courtesy of GENERAL MOTORS CORP.
  7. Install the automatic transaxle range selector cable to the automatic transaxle range selector cable bracket.
  8. Install the automatic transaxle range selector cable to the automatic transaxle range selector lever.

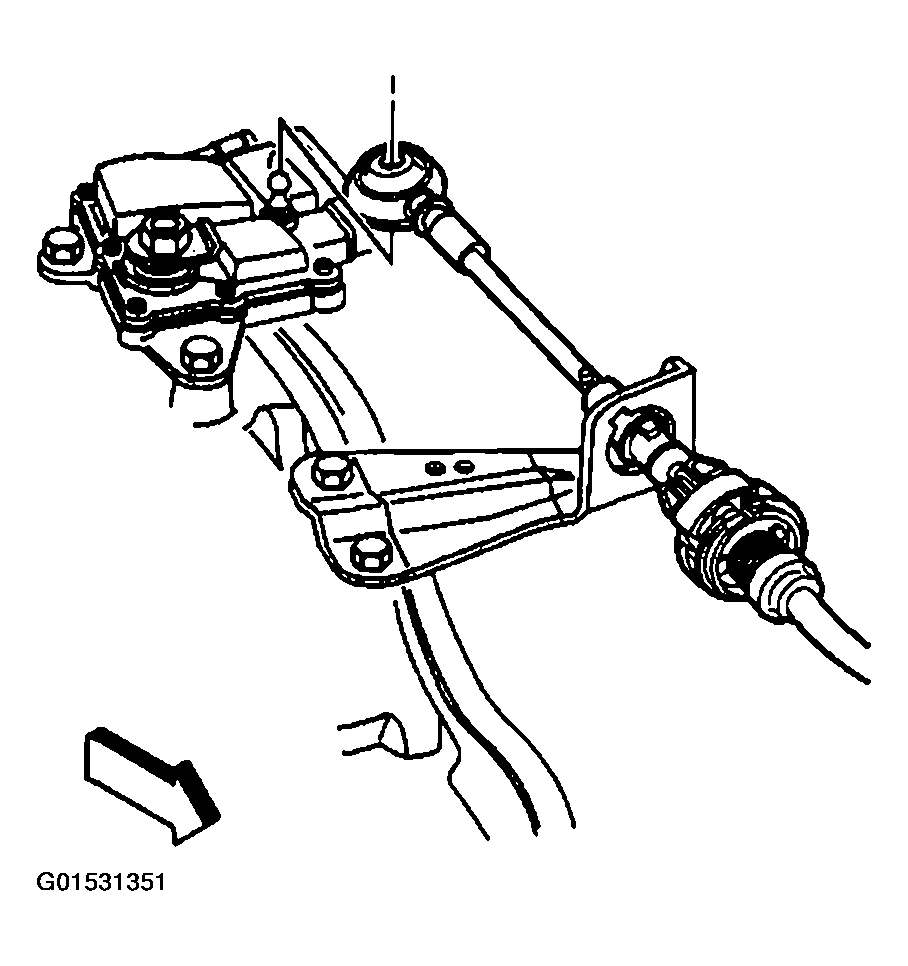

    Fig 5: Installing Automatic Transaxle Range Selector Cable To Automatic Transaxle Range Selector Lever
    G01531351Courtesy of GENERAL MOTORS CORP.
  9. Install the retaining clip to the automatic transaxle range selector cable.
  10. Adjust the automatic transaxle range selector cable. Refer to AUTOMATIC TRANSMISSION RANGE SELECTOR CABLE ADJUSTMENT   .
  11. Install the throttle body air inlet duct. Refer to ENGINE CONTROLS - REMOVAL & INSTALLATION & OVERHAUL  in Removal and Installation in Engine Performance.

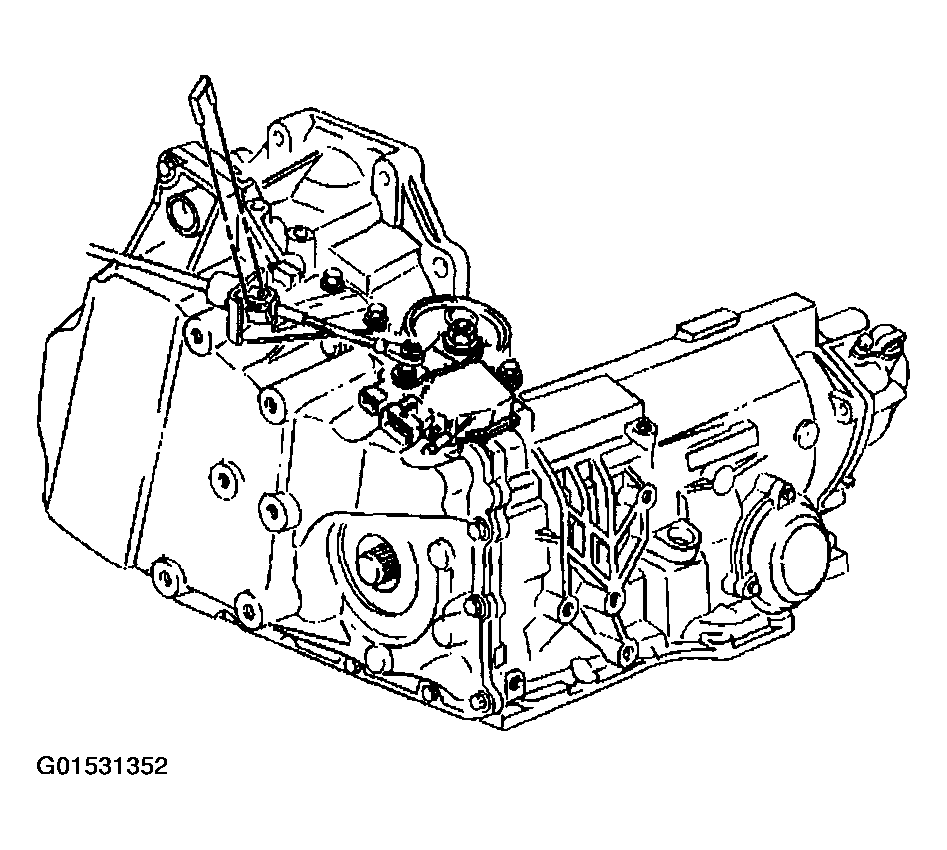

    Fig 6: Installing Throttle Body Air Inlet Duct
    G01531352Courtesy of GENERAL MOTORS CORP.
