Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the throttle body air inlet duct. Refer to ENGINE CONTROLS - REMOVAL & INSTALLATION & OVERHAUL  in Removal and Installation in Engine Performance.
  2. Remove the automatic transaxle range selector lever cable from the cable lever.
  3. Remove the automatic transaxle range selector lever nut.
  4. Remove the automatic transaxle range selector lever.

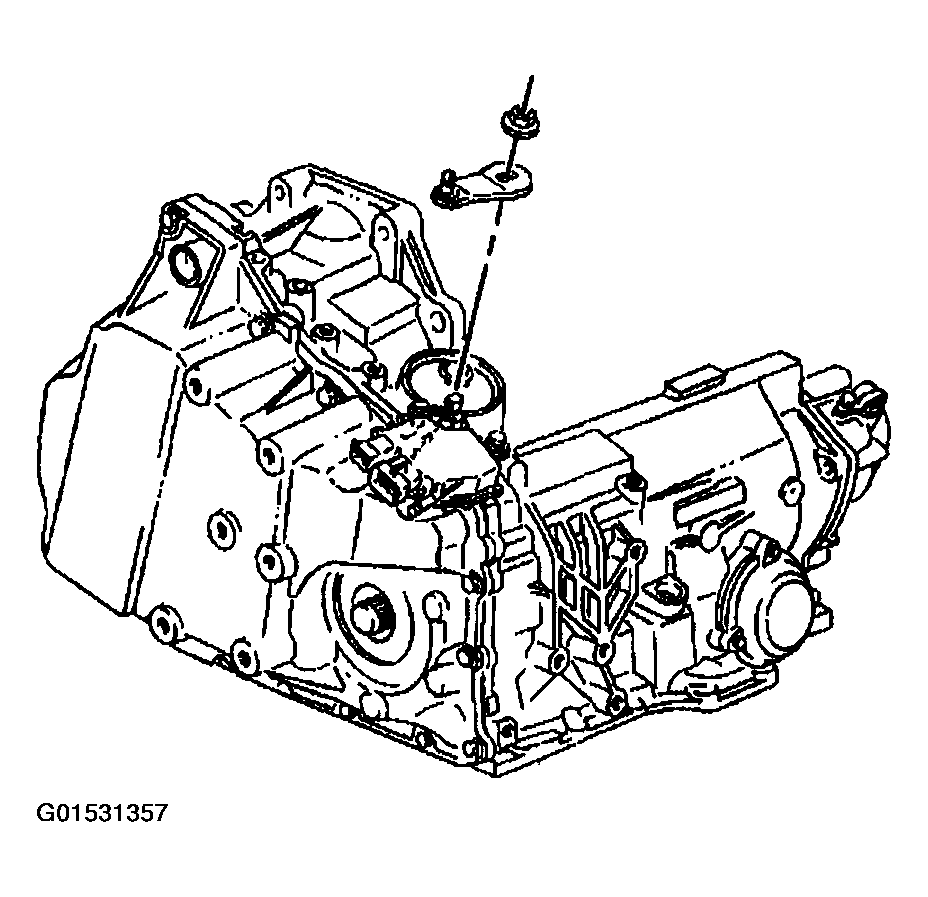

    Fig 1: Removing Automatic Transaxle Range Selector Lever
    G01531357Courtesy of GENERAL MOTORS CORP.
