Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the automatic transaxle range selector lever.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the automatic transaxle range selector lever nut.

    Tighten

    Tighten the automatic transaxle range selector lever nut to 32 N.m (23 lb ft).

  3. Install the automatic transaxle range selector lever cable to the automatic transaxle range selector lever.
  4. Install the throttle body air inlet duct. Refer to ENGINE CONTROLS - REMOVAL & INSTALLATION & OVERHAUL  in Removal and Installation in Engine Performance.

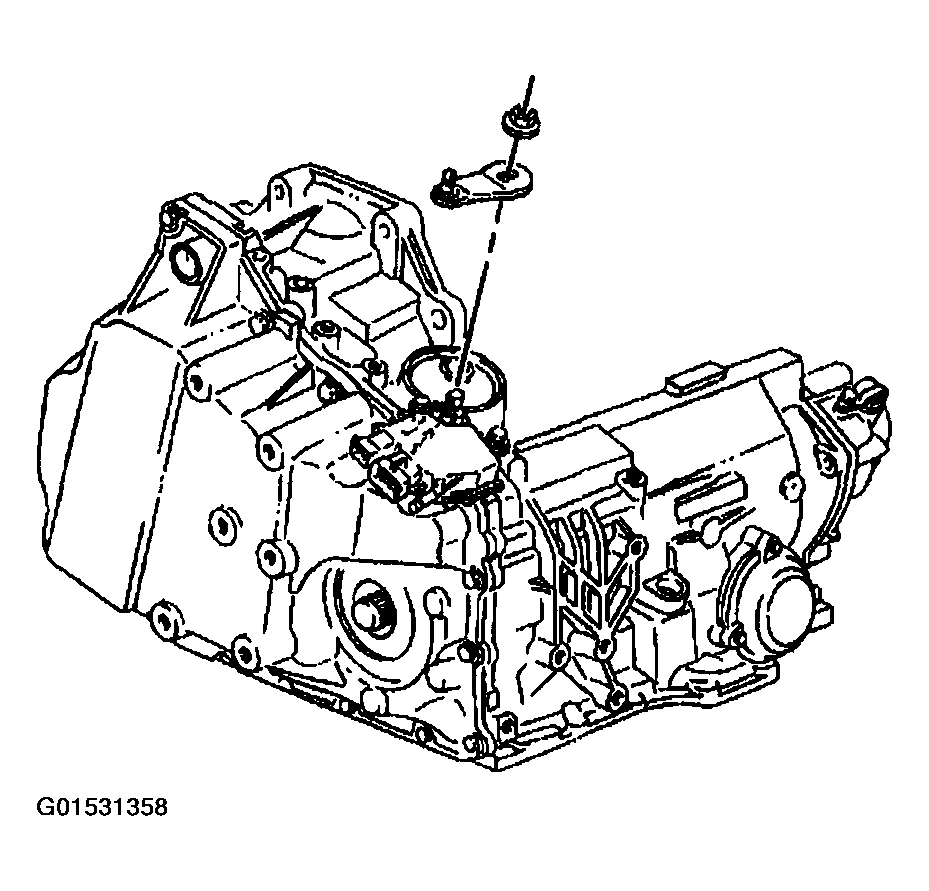

    Fig 1: Installing Automatic Transaxle Range Selector Lever
    G01531358Courtesy of GENERAL MOTORS CORP.
