Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the throttle body air inlet duct. Refer to ENGINE CONTROLS - REMOVAL & INSTALLATION & OVERHAUL  in Removal and Installation in Engine Performance.
  2. Use a flat-bladed tool in order to remove the automatic transaxle range selector cable from the cable lever and the bracket. Refer to AUTOMATIC TRANSMISSION RANGE SELECTOR CABLE REPLACEMENT   .
  3. Remove the automatic transaxle range selector cable bracket bolts.
  4. Remove the automatic transaxle range selector cable bracket.

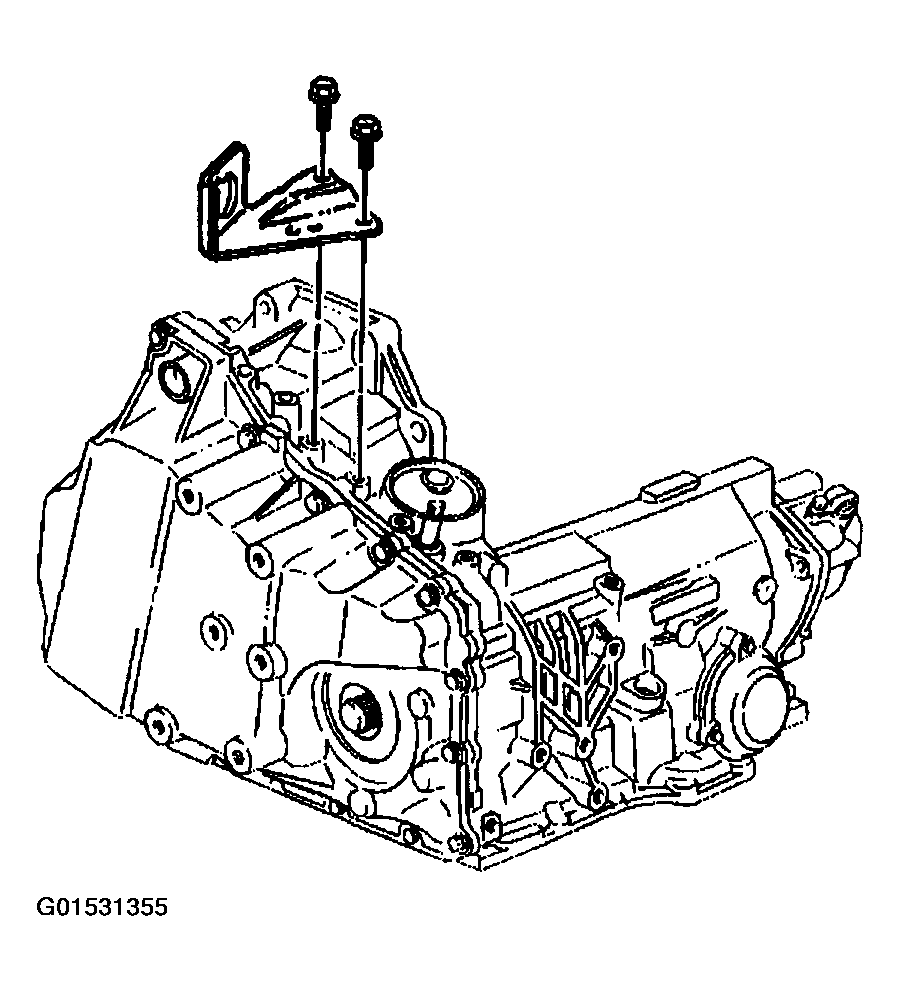

    Fig 1: Removing Automatic Transaxle Range Selector Cable Bracket
    G01531355Courtesy of GENERAL MOTORS CORP.
