Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the automatic transaxle range selector cable bracket.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the automatic transaxle range selector cable bracket bolts.

    Tighten

    Tighten the automatic transaxle range selector cable bracket bolts to 25 N.m (18 lb ft).

  3. Install the automatic transaxle range selector cable to the cable lever and the bracket. Refer to AUTOMATIC TRANSMISSION RANGE SELECTOR CABLE REPLACEMENT   .

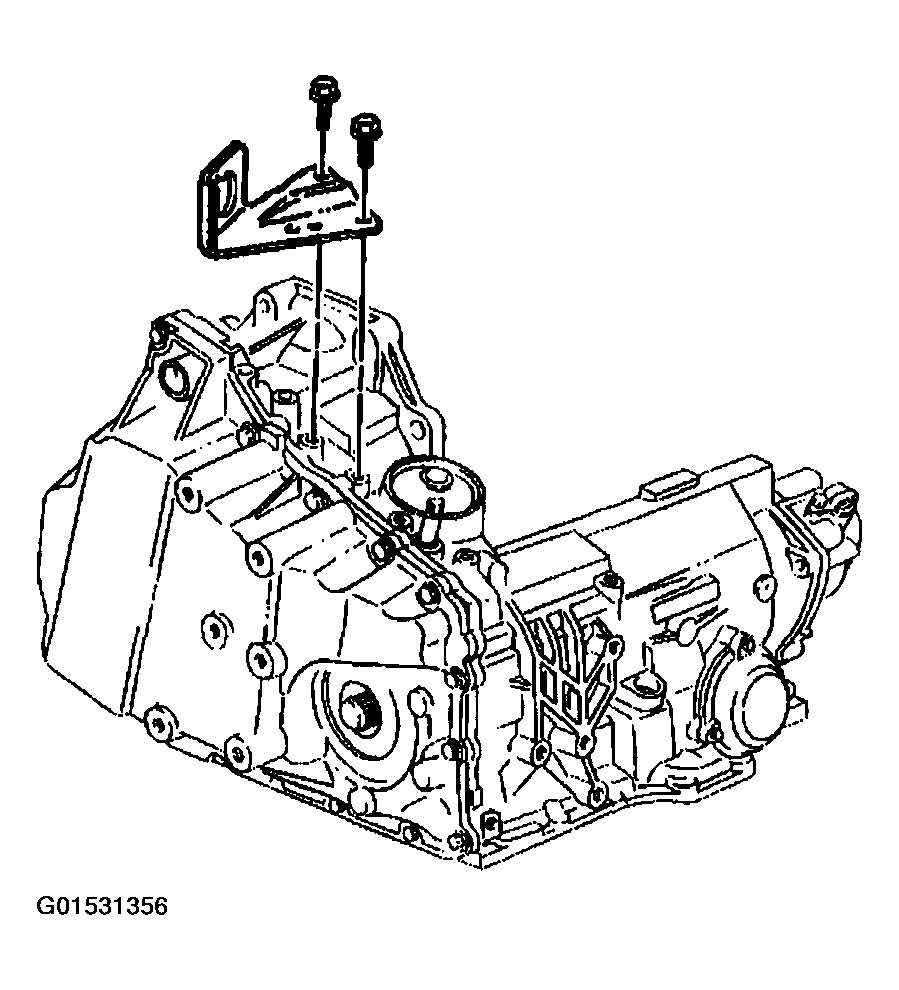

    Fig 1: Installing Automatic Transaxle Range Selector Cable Bracket
    G01531356Courtesy of GENERAL MOTORS CORP.
  4. Adjust the automatic transaxle range selector cable. Refer to AUTOMATIC TRANSMISSION RANGE SELECTOR CABLE ADJUSTMENT   .
  5. Install the throttle body air inlet duct. Refer to ENGINE CONTROLS - REMOVAL & INSTALLATION & OVERHAUL  in Removal and Installation in Engine Performance.
