Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Allow sufficient clearance around the transaxle oil cooler pipes and around the hoses to prevent damage or wear which may cause fluid loss.
  1. Raise and support the vehicle. Refer to JACKING AND LIFTING in General Information.
  2. Position the drain pan.
  3. Remove the transaxle oil cooler hoses from the transaxle oil cooler fittings. Refer to AUTOMATIC TRANSMISSION OIL COOLER HOSE REPLACEMENT  .
  4. Remove the transaxle oil cooler fittings (28, 29) from the transaxle.

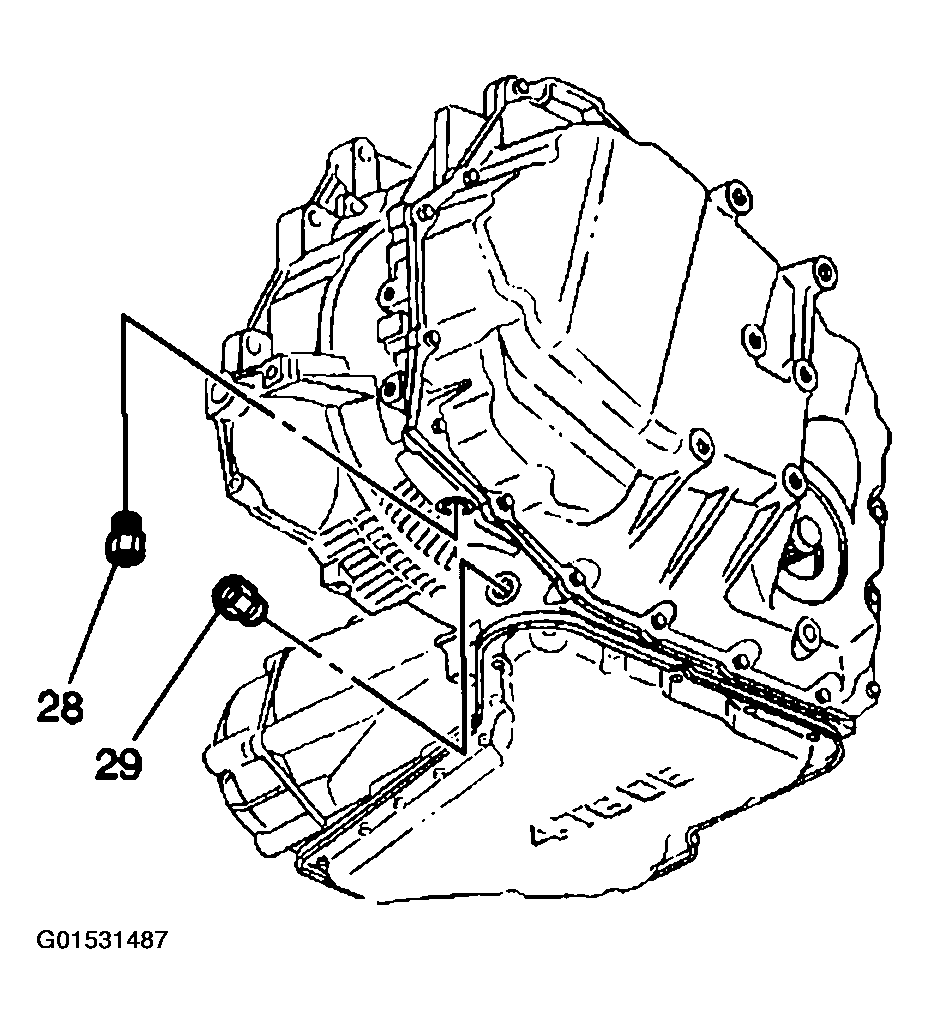

    Fig 1: Removing Transaxle Oil Cooler Fittings From Transaxle
    G01531487Courtesy of GENERAL MOTORS CORP.
