Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to JACKING AND LIFTING in General Information.
  2. Remove the left front tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION  in Tires and Wheels.
  3. Remove the left engine splash shield. Refer to SPLASH SHIELD REPLACEMENT - ENGINE  in Body Front End.
  4. Use a utility stand with a block of wood in order to support the transaxle.
  5. Remove the transaxle mount upper nuts.

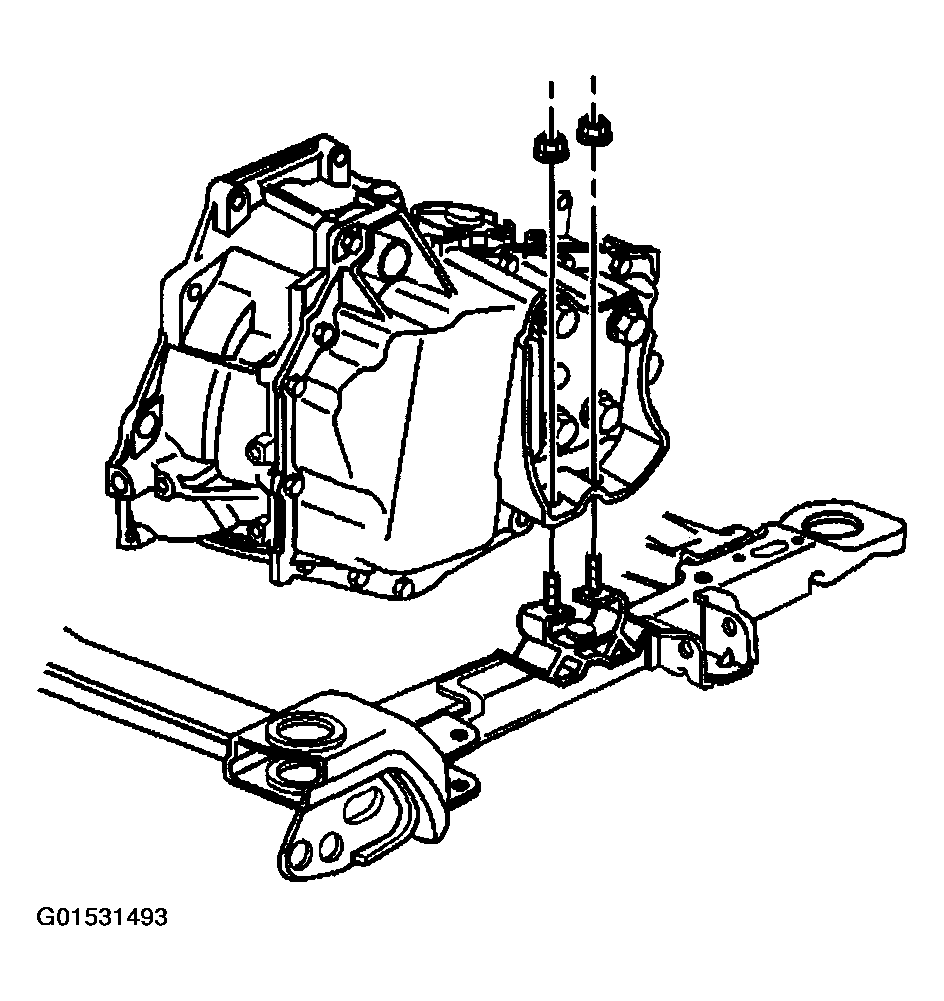

    Fig 1: Removing Transaxle Mount Upper Nuts
    G01531493Courtesy of GENERAL MOTORS CORP.
  6. Remove the transaxle mount bracket bolts.
  7. Remove the transaxle mount bracket.

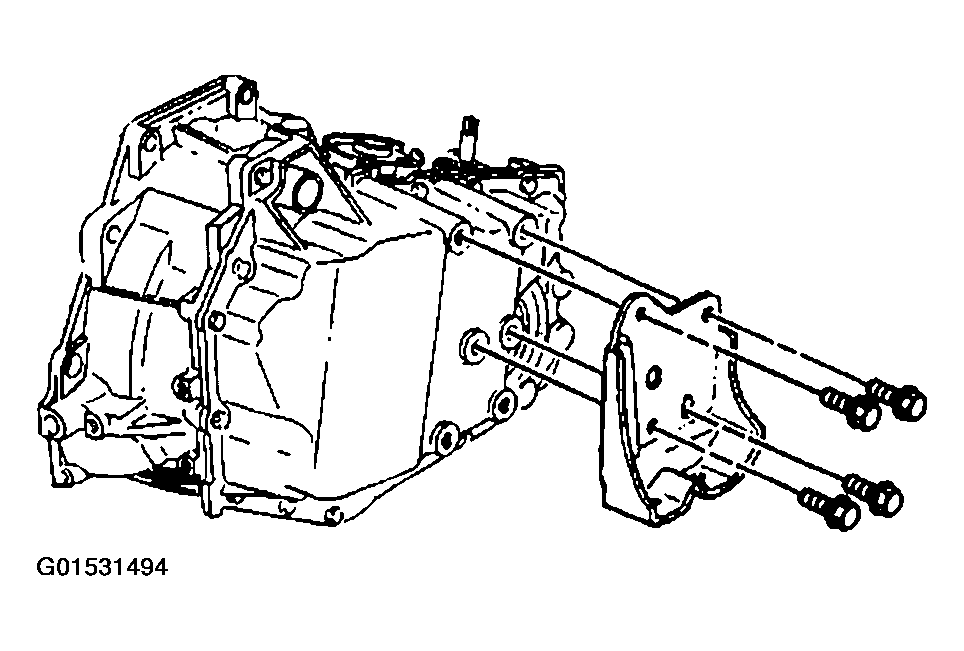

    Fig 2: Removing Transaxle Mount Bracket Bolts And Transaxle Mount Bracket
    G01531494Courtesy of GENERAL MOTORS CORP.
