Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the transaxle mount bracket.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the transaxle mount bracket bolts.

    Tighten

    Start with the forward lower bolt and work clockwise to tighten the transaxle mount bracket bolts to 95 N.m (70 lb ft).

  3. Remove the utility stand.

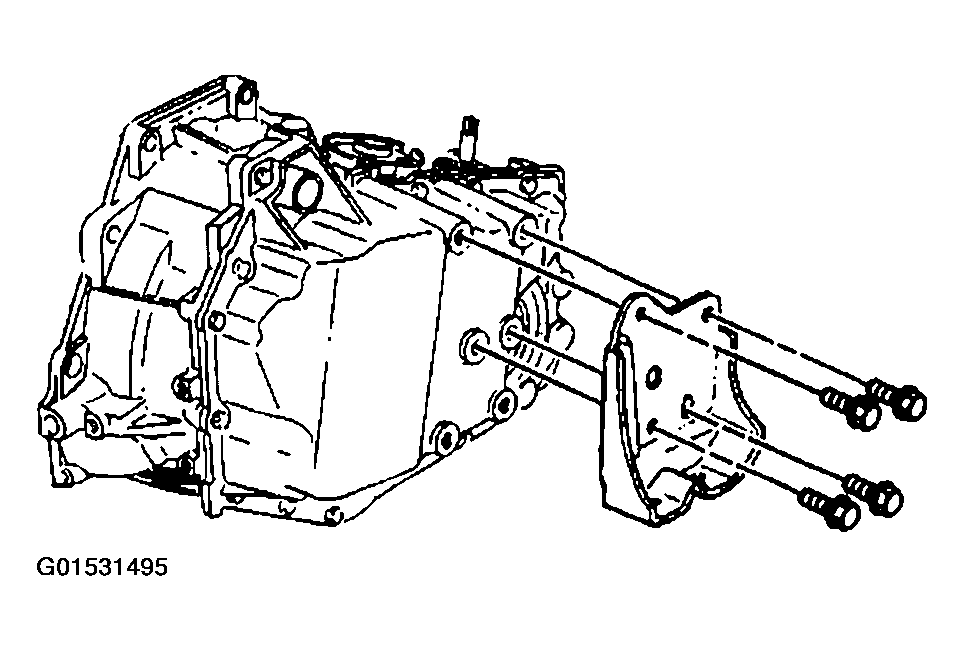

    Fig 1: Installing Transaxle Mount Bracket And Transaxle Mount Bracket Bolts
    G01531495Courtesy of GENERAL MOTORS CORP.
  4. Install the transaxle mount upper nuts.

    Tighten

    Tighten the nuts to 47 N.m (35 lb ft).

  5. Install the left engine splash shield. Refer to SPLASH SHIELD REPLACEMENT - ENGINE  in Body Front End.
  6. Install the left front tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION  in Tires and Wheels.
  7. Lower the vehicle.

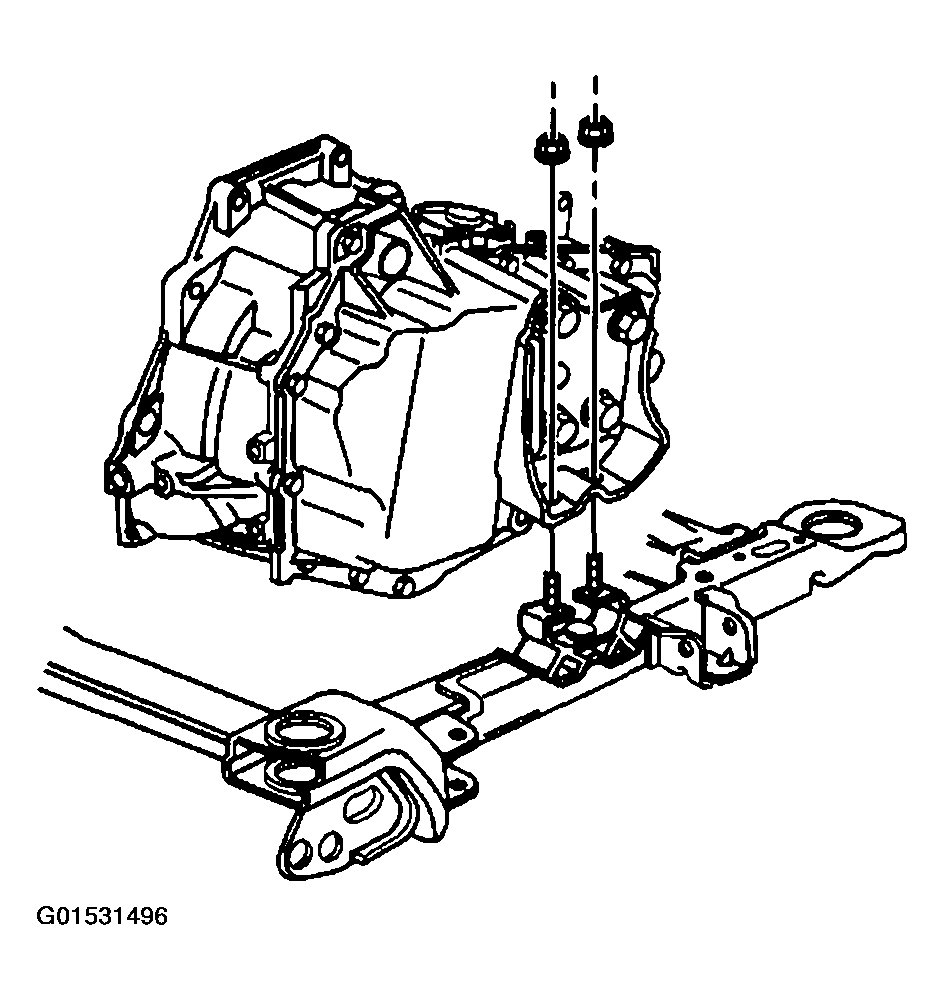

    Fig 2: Installing Transaxle Mount Upper Nuts
    G01531496Courtesy of GENERAL MOTORS CORP.
