Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the transaxle brace to transaxle and engine.
  2. Hand start the bolts to the engine.
  3. Hand start the bolts to the transaxle.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the brace bolts to the engine.

    Tighten

    Tighten the bolts to 43 N.m (32 lb ft).

  5. Install the brace bolts to the transaxle.

    Tighten

    Tighten the bolts to 43 N.m (32 lb ft).

  6. Install the right engine splash shield. Refer to SPLASH SHIELD REPLACEMENT - ENGINE  in Body Front End.
  7. Install the right front tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION  in Tires and Wheels.
  8. Lower the vehicle.

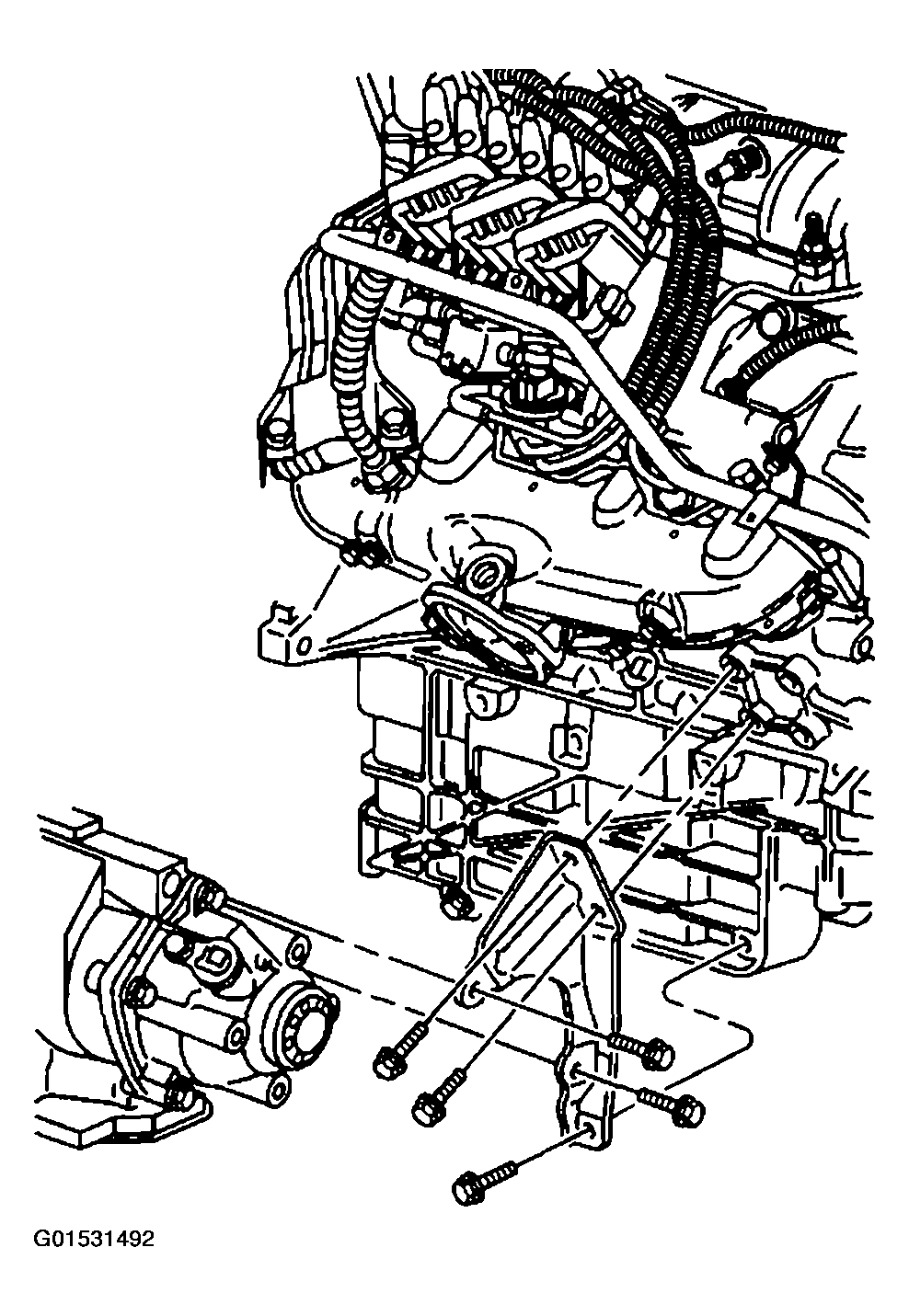

    Fig 1: Installing Transaxle Brace Bolts
    G01531492Courtesy of GENERAL MOTORS CORP.
