Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the manual 2-1 band servo cover gasket (105) into the case. Lubricate the manual 2-1 band servo cover gasket with automatic transmission fluid.
  2. Install the manual 2-1 band servo (106-116).
  3. Install the manual 2-1 band servo cover (104).
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the manual 2-1 band servo cover bolts (103).

    Tighten

    Tighten the bolts (103) to 25 N.m (18 lb ft).

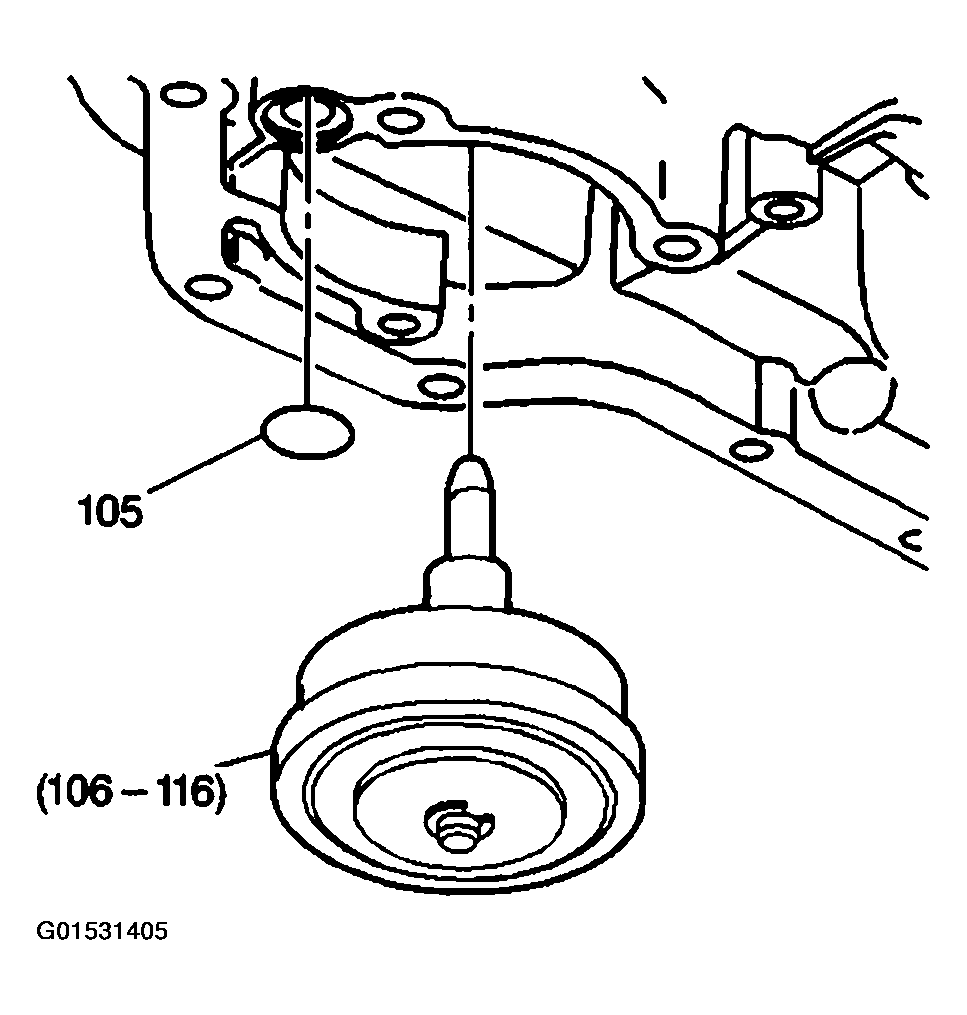

    Fig 1: Installing Band Servo Cover Gasket
    G01531405Courtesy of GENERAL MOTORS CORP.
  5. Install the accumulator (132).
  6. Install the lube oil pipe (130) into the case at the lube hole for the front differential carrier internal gear.
  7. Use a flat-bladed tool in order to lock the lube oil pipe retainer (129) into the case.

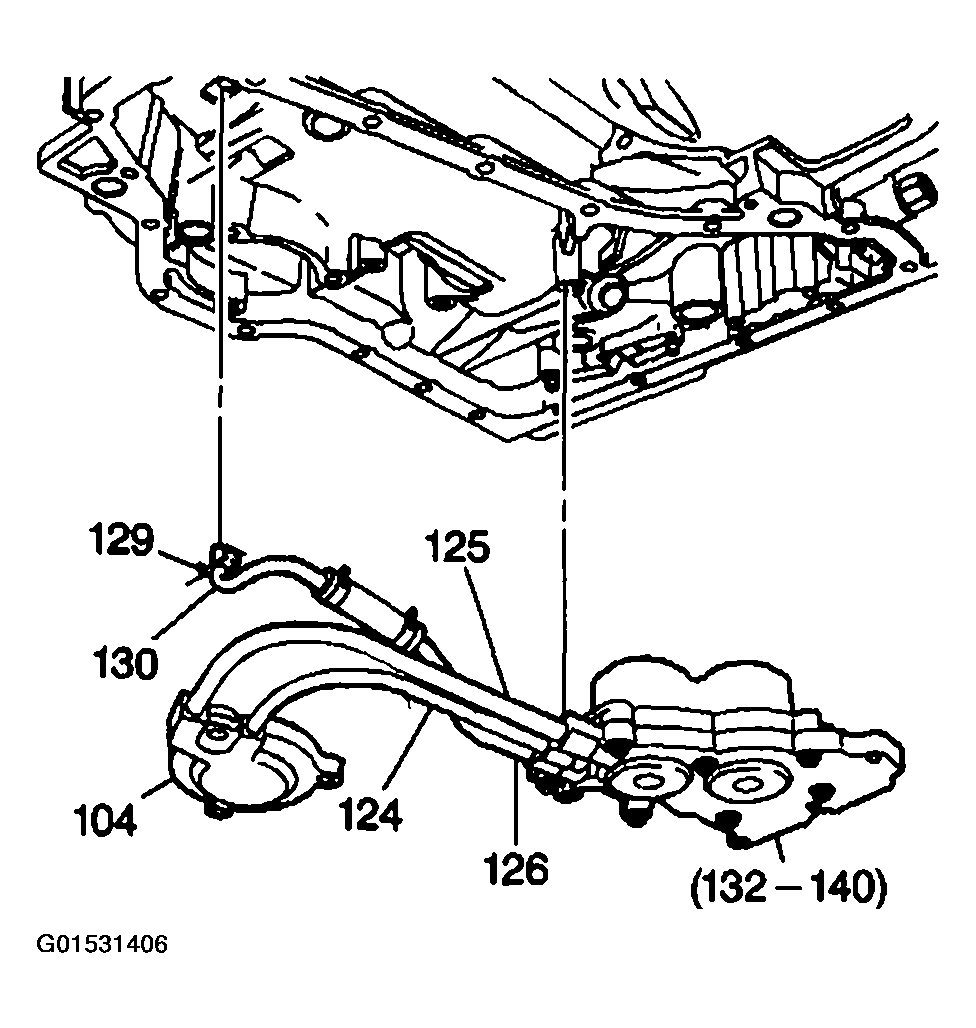

    Fig 2: Installing Accumulator And Lube Oil Pipe
    G01531406Courtesy of GENERAL MOTORS CORP.
  8. Install the accumulator bolts (131).

    Tighten

    Tighten the bolts (131) to 12 N.m (106 lb in).

  9. If removed, install a new filter seal.
  10. Install the filter. Refer to OIL FILTER AND SEAL REPLACEMENT   .
  11. Install the oil pan. Refer to OIL PAN REPLACEMENT  .
  12. Lower the vehicle.

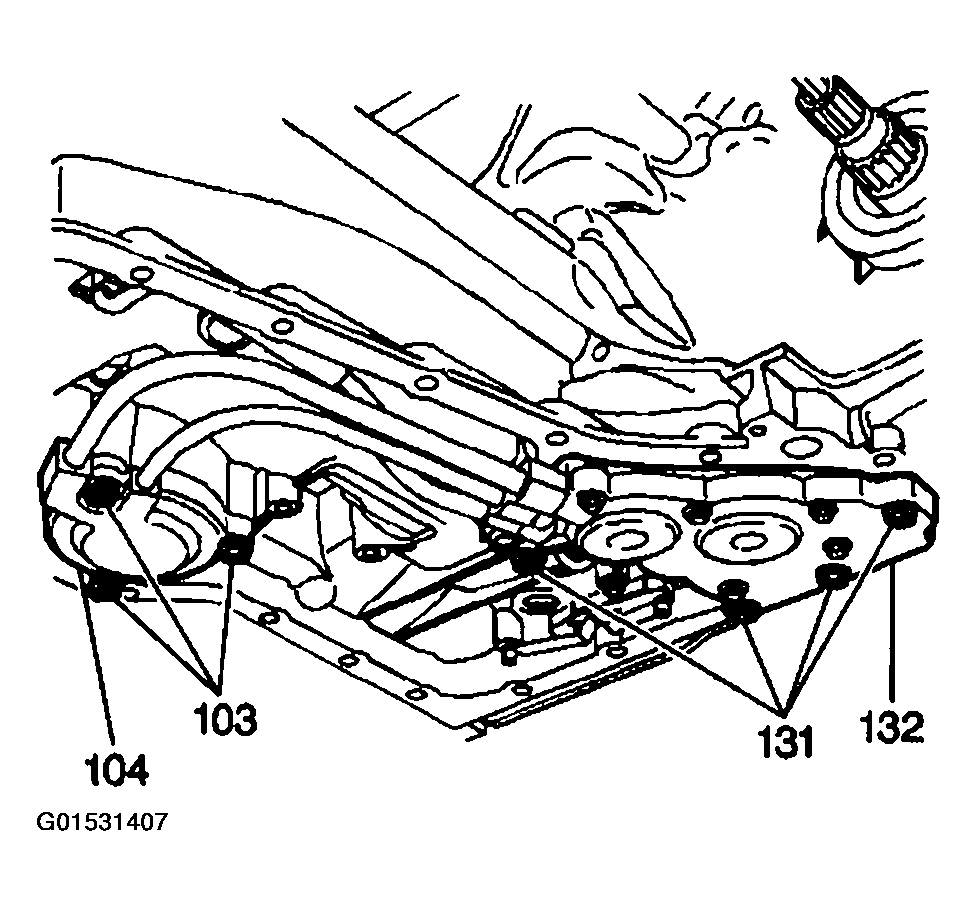

    Fig 3: Installing Accumulator Bolts And Band Servo Cover Bolts
    G01531407Courtesy of GENERAL MOTORS CORP.
