Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the case side cover. Refer to CASE SIDE COVER REPLACEMENT  .
  2. Disconnect the transaxle wiring harness.
  3. Using a small screwdriver or pick, remove the 2-3 shift solenoid valve retainer (314C) from the control valve body (301).
  4. Remove the 2-3 shift solenoid (315B).
  5. Remove the O-ring seal (316) from the 2-3 shift solenoid valve (315B) ONLY if it is damaged.

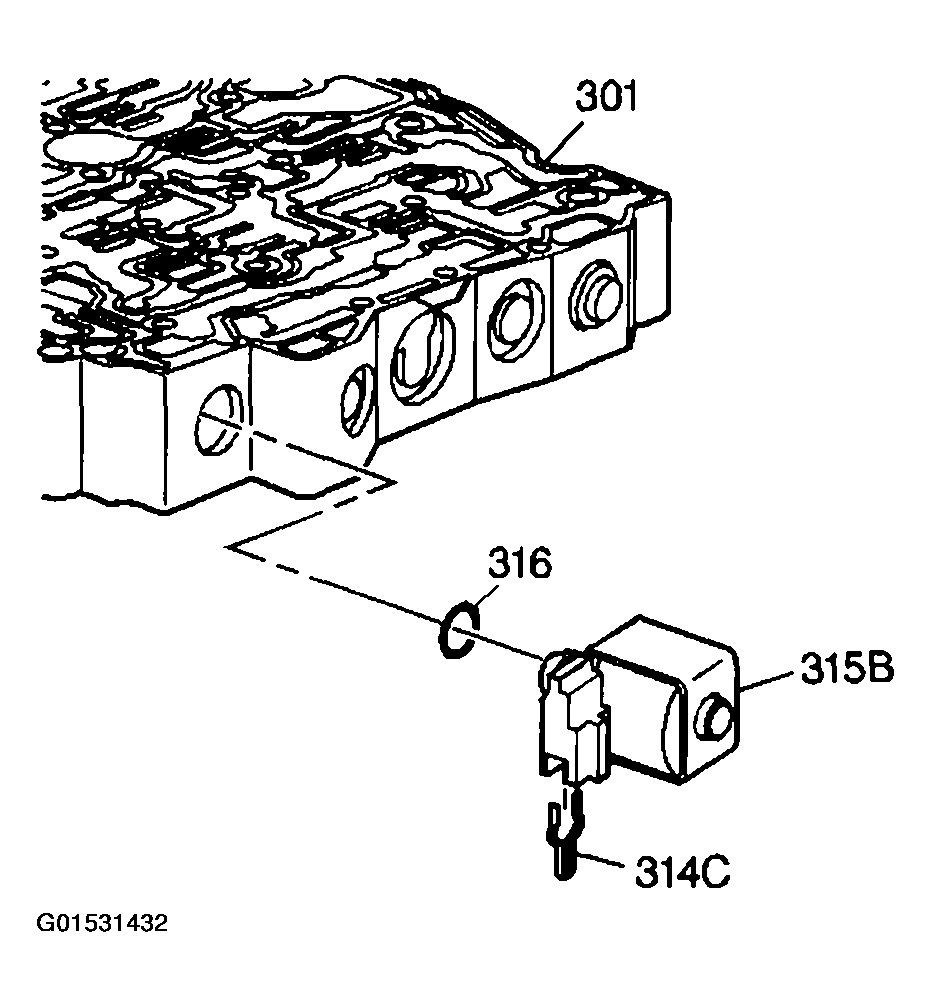

    Fig 1: Removing O-Ring And 2-3 Shift Solenoid
    G01531432Courtesy of GENERAL MOTORS CORP.
