Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install a new O-ring seal (316) onto the 2-3 shift solenoid valve (315B) if the O-ring was removed.
  2. Install the 2-3 shift solenoid (315B).
  3. Install the 2-3 shift solenoid valve retainer (314C) into the control valve body (301).
  4. Connect the transaxle wiring harness.
  5. Install the case side cover. Refer to CASE SIDE COVER REPLACEMENT  .

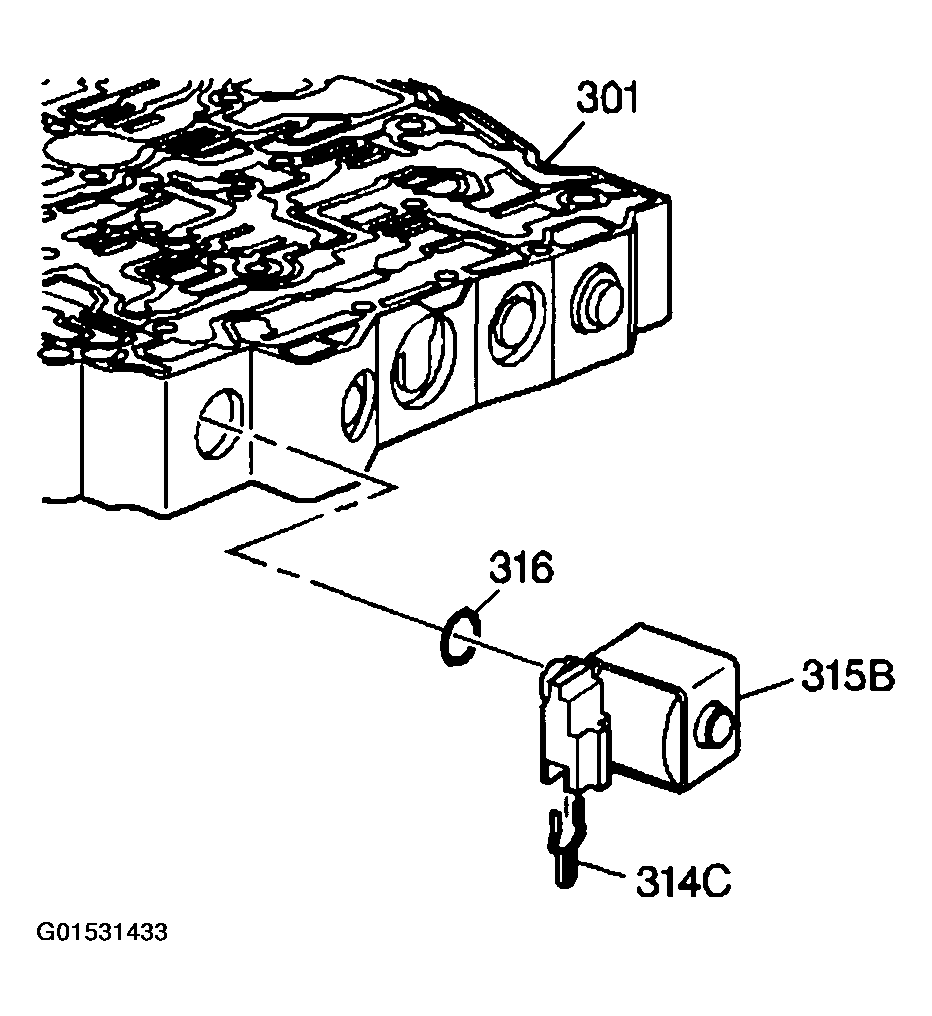

    Fig 1: Installing O-Ring And 2-3 Shift Solenoid
    G01531433Courtesy of GENERAL MOTORS CORP.
