Shift Solenoid Leak Test: Clean-up

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the water supply hose from the J 35944-A and bleed any remaining air pressure from the flusher tank.
Remove the fill cap from the J 35944-A and return any unused flushing solution to its container. Rinse the J 35944-A with water. Do not store the J 35944-A with flushing solution in it.
After every third use, clean the J 35944-A as described in the instructions included with the tool.
Dispose of any waste water/solution and transmission fluid in accordance with local regulations.

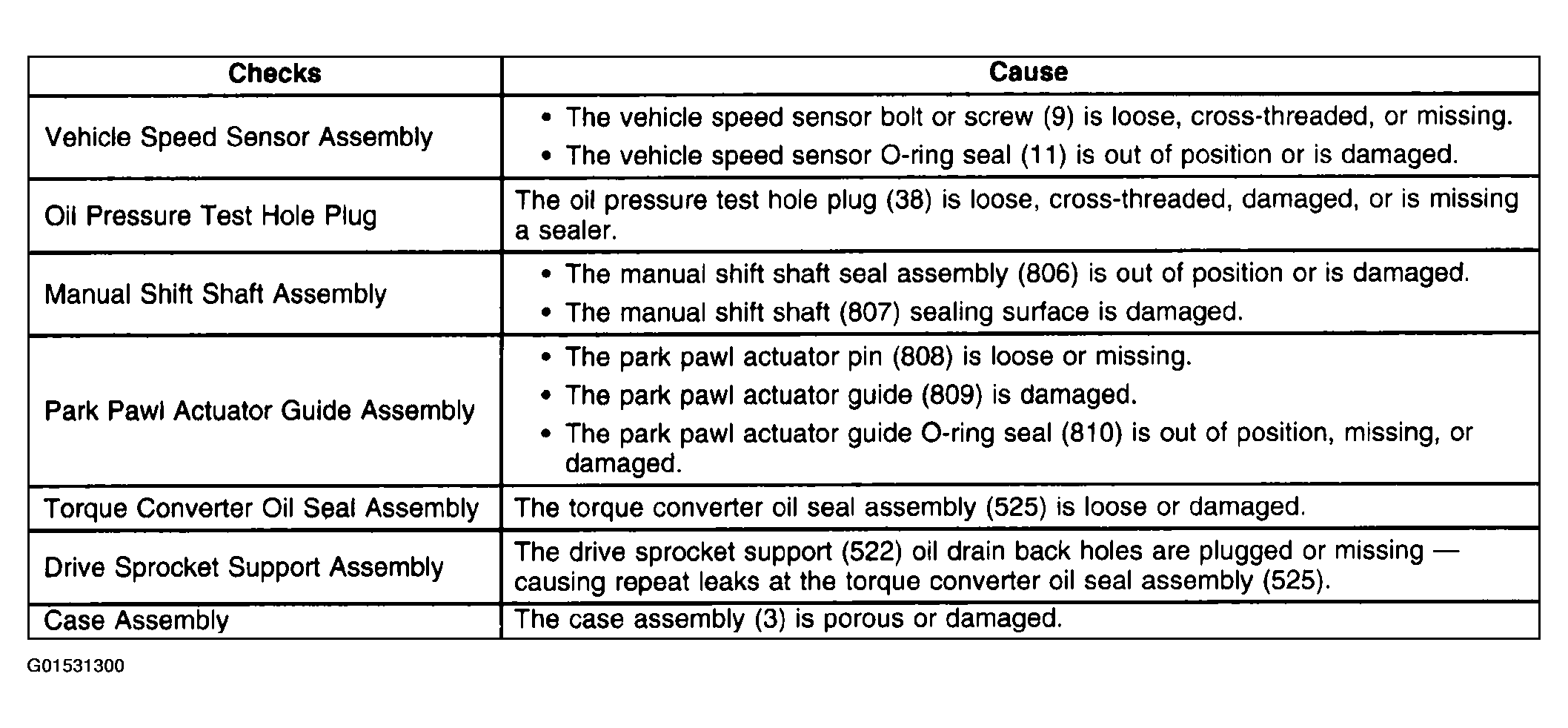

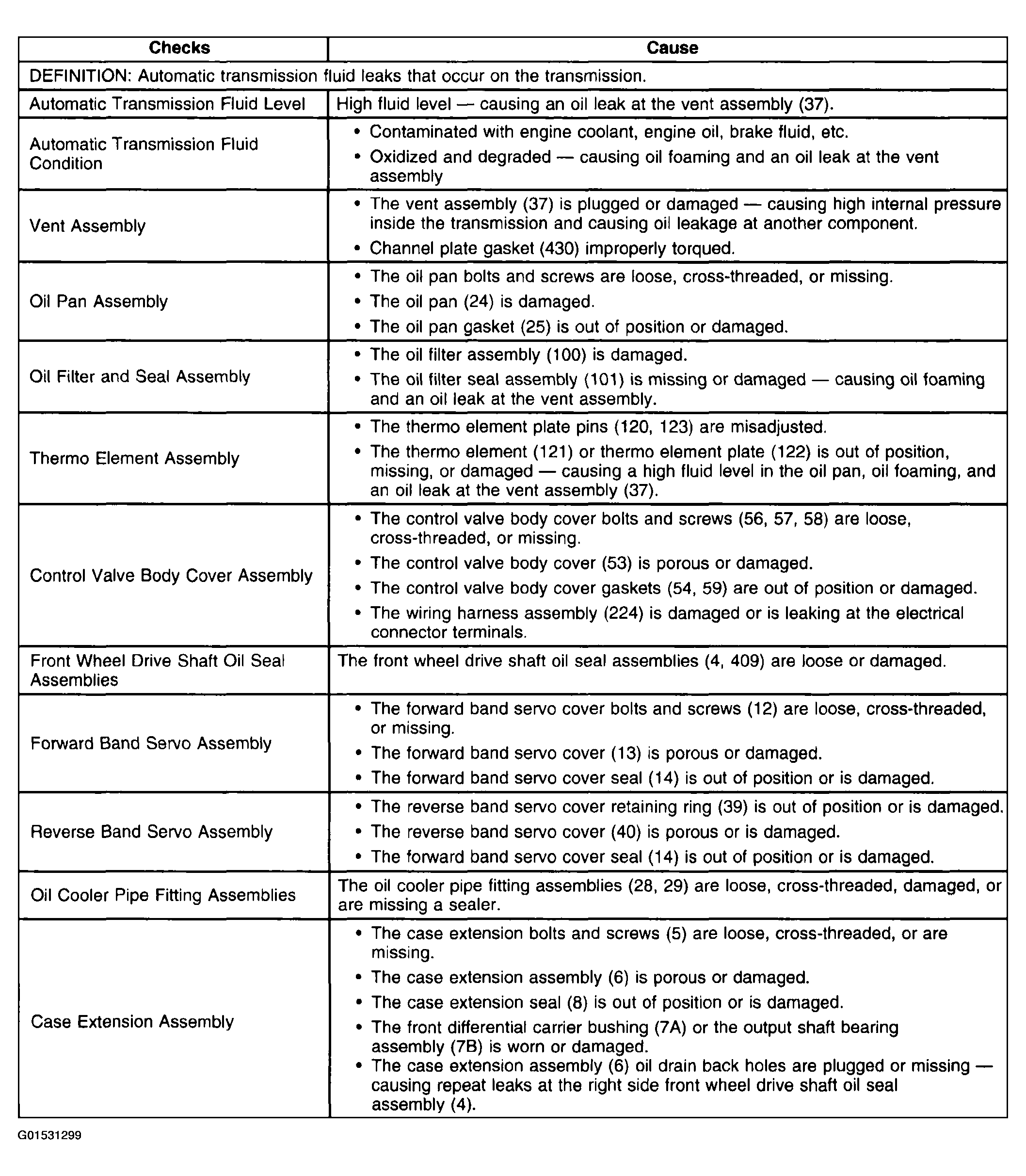

Fig 1: Automatic Transmission Fluid Leaks (1 of 2)
Courtesy of GENERAL MOTORS CORP.

Fig 2: Automatic Transmission Fluid Leaks (2 of 2)
Courtesy of GENERAL MOTORS CORP.

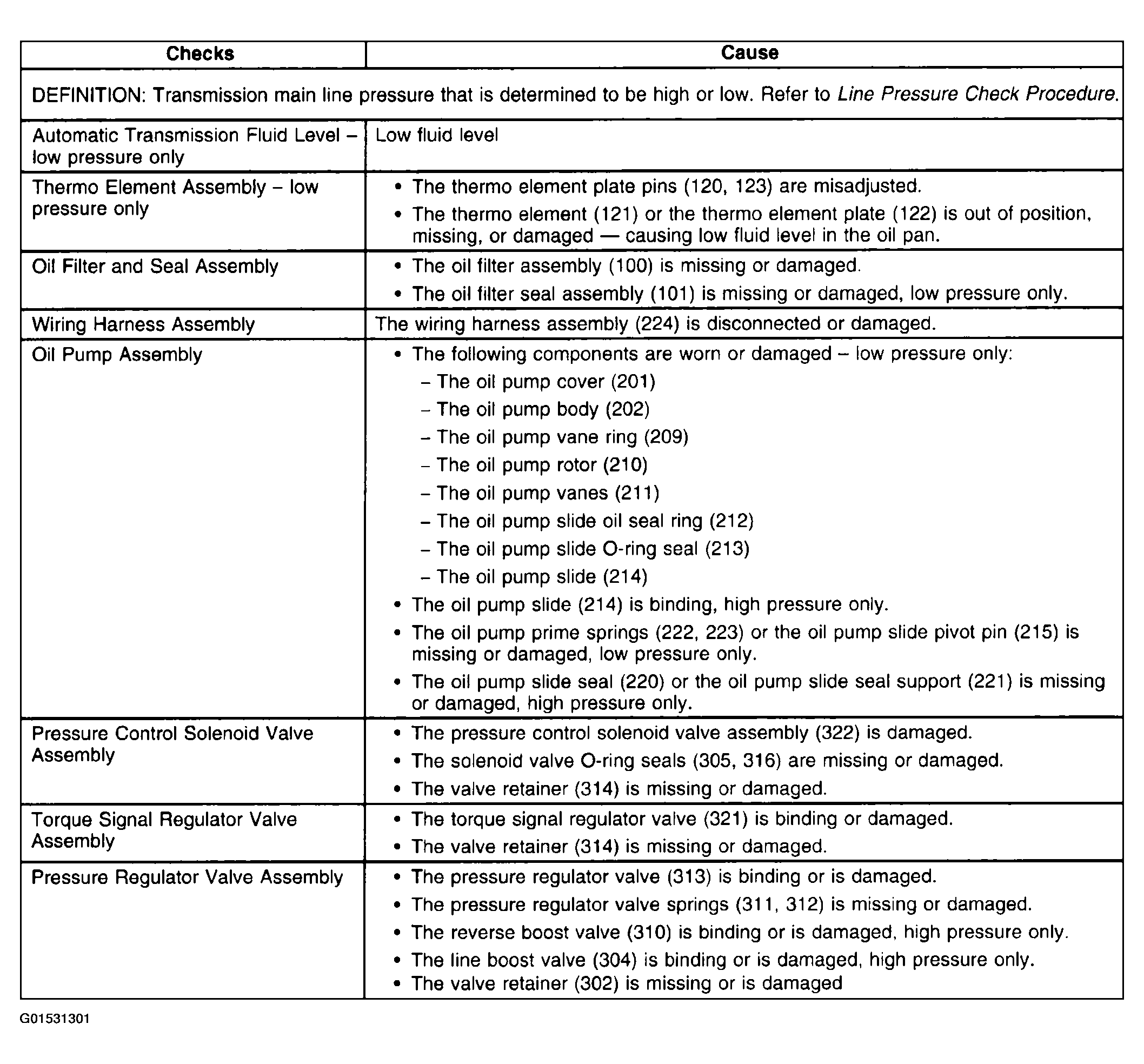

Fig 3: Incorrect Line Pressure (1 of 2)
Courtesy of GENERAL MOTORS CORP.

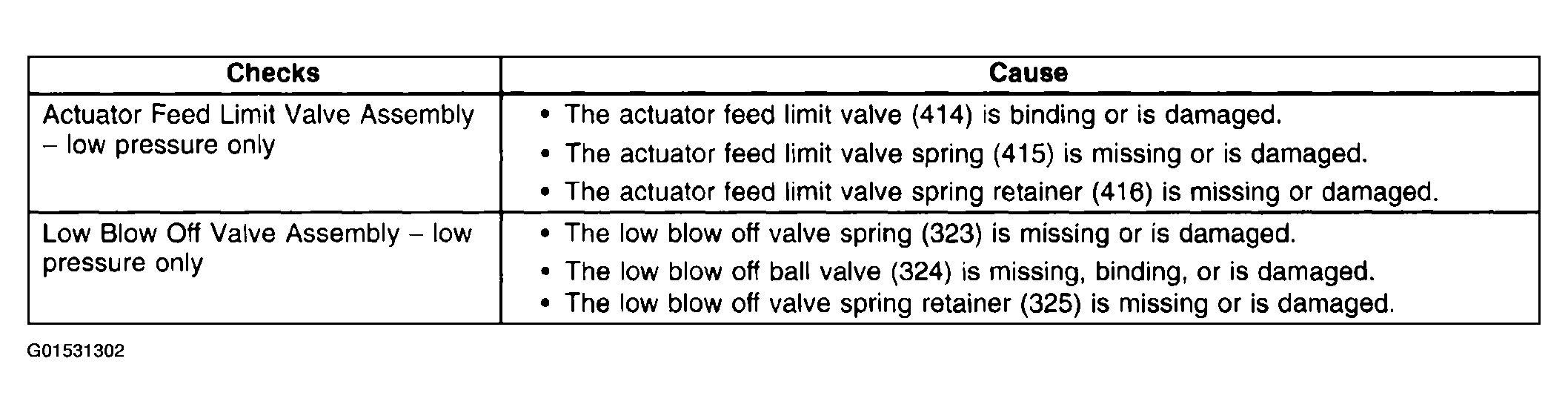

Fig 4: Incorrect Line Pressure (2 of 2)
Courtesy of GENERAL MOTORS CORP.

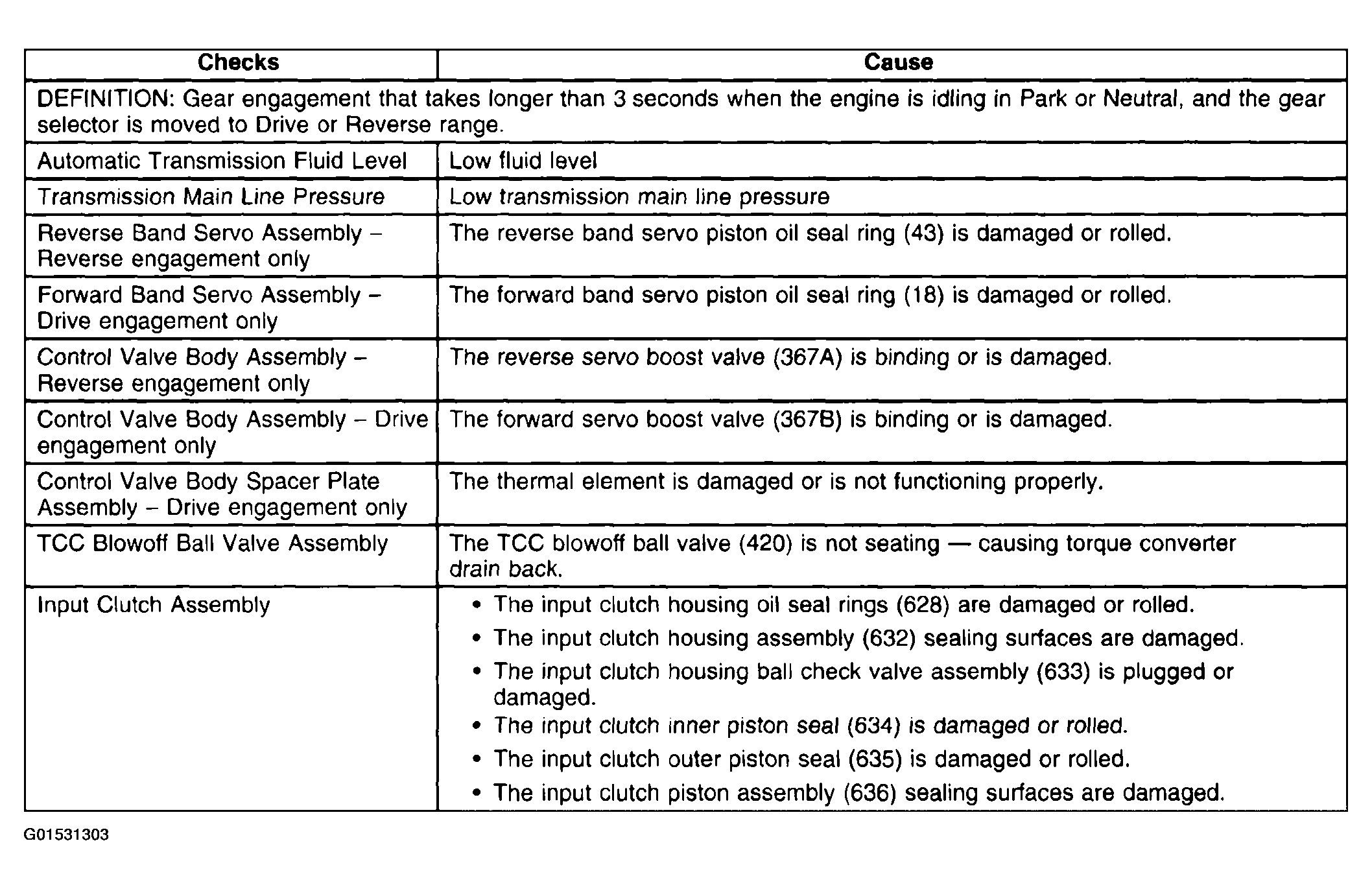

Fig 5: Delayed Park to Reverse/Drive Engagement
Courtesy of GENERAL MOTORS CORP.

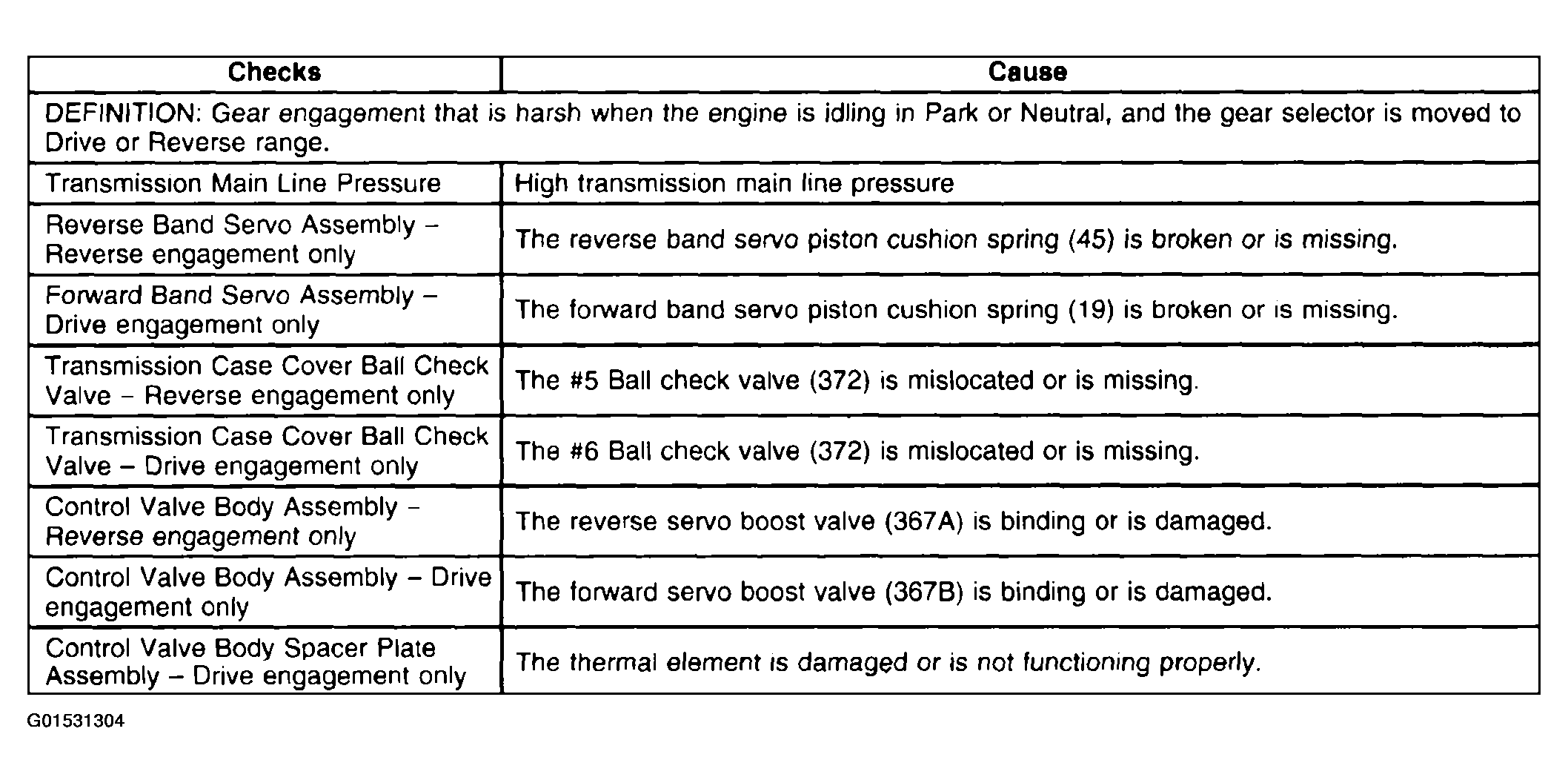

Fig 6: Harsh Park to Reverse/Drive Engagement
Courtesy of GENERAL MOTORS CORP.

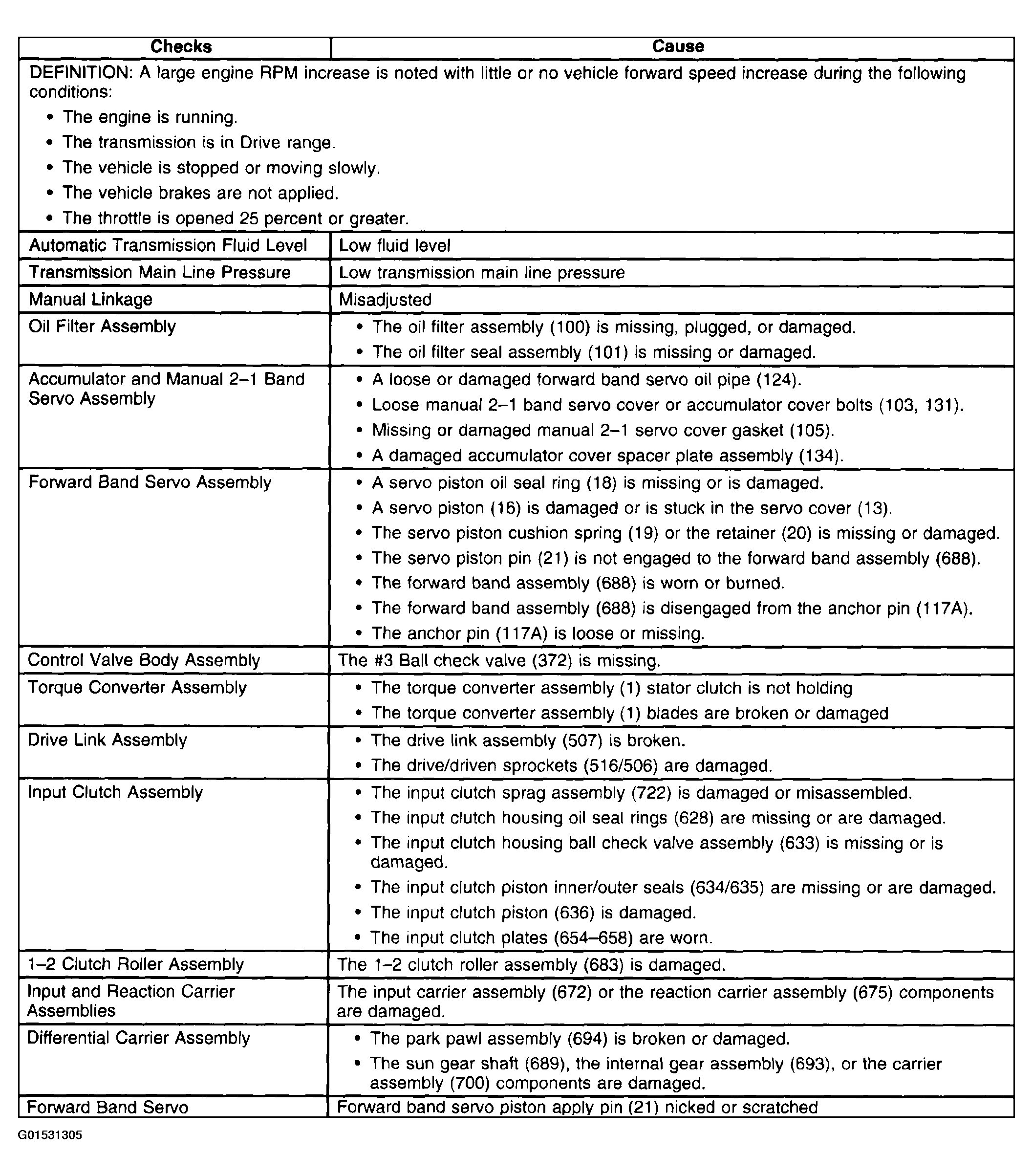

Fig 7: Slips in Drive or No Drive
Courtesy of GENERAL MOTORS CORP.

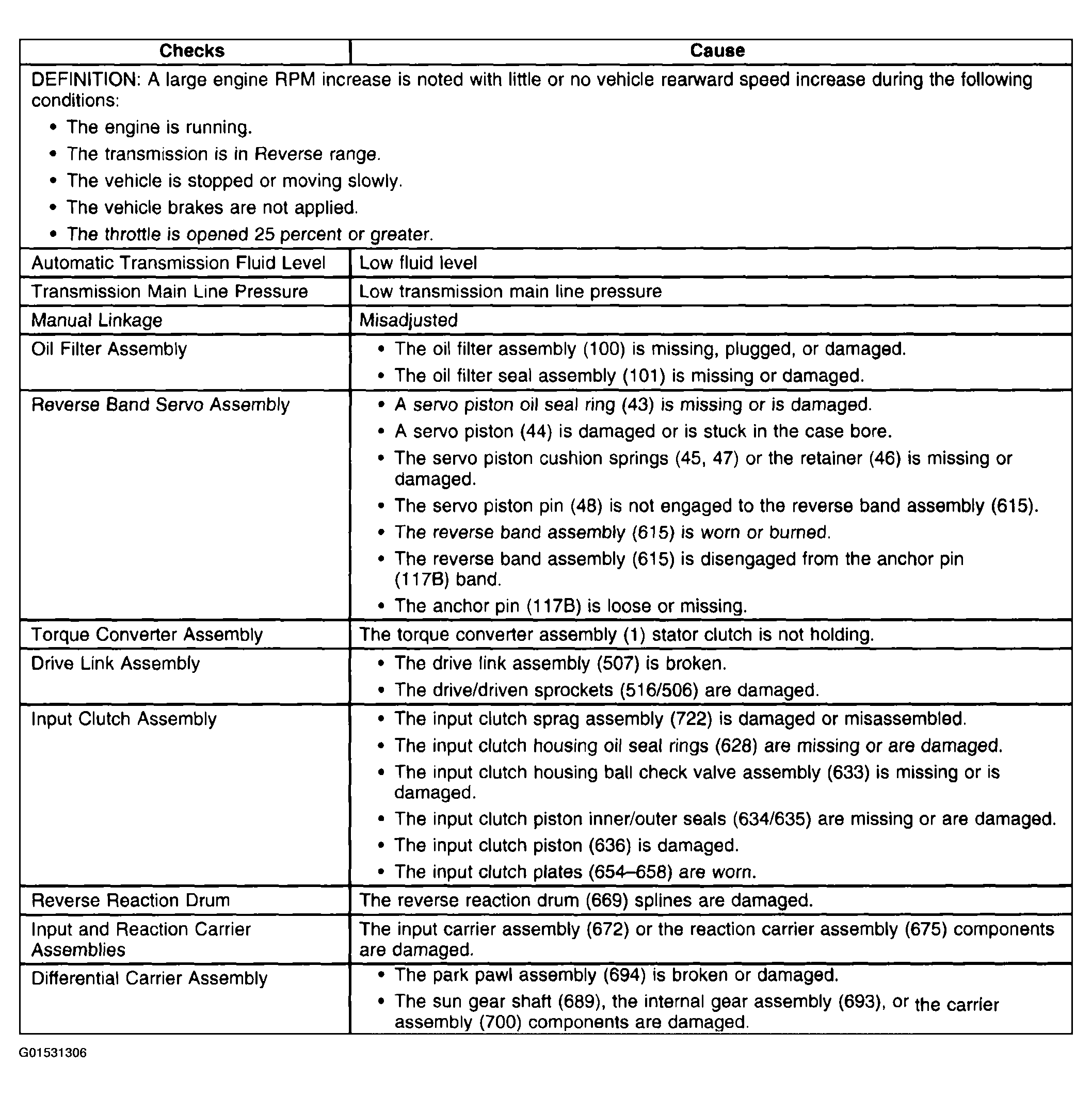

Fig 8: Slips in Reverse or No Reverse
Courtesy of GENERAL MOTORS CORP.

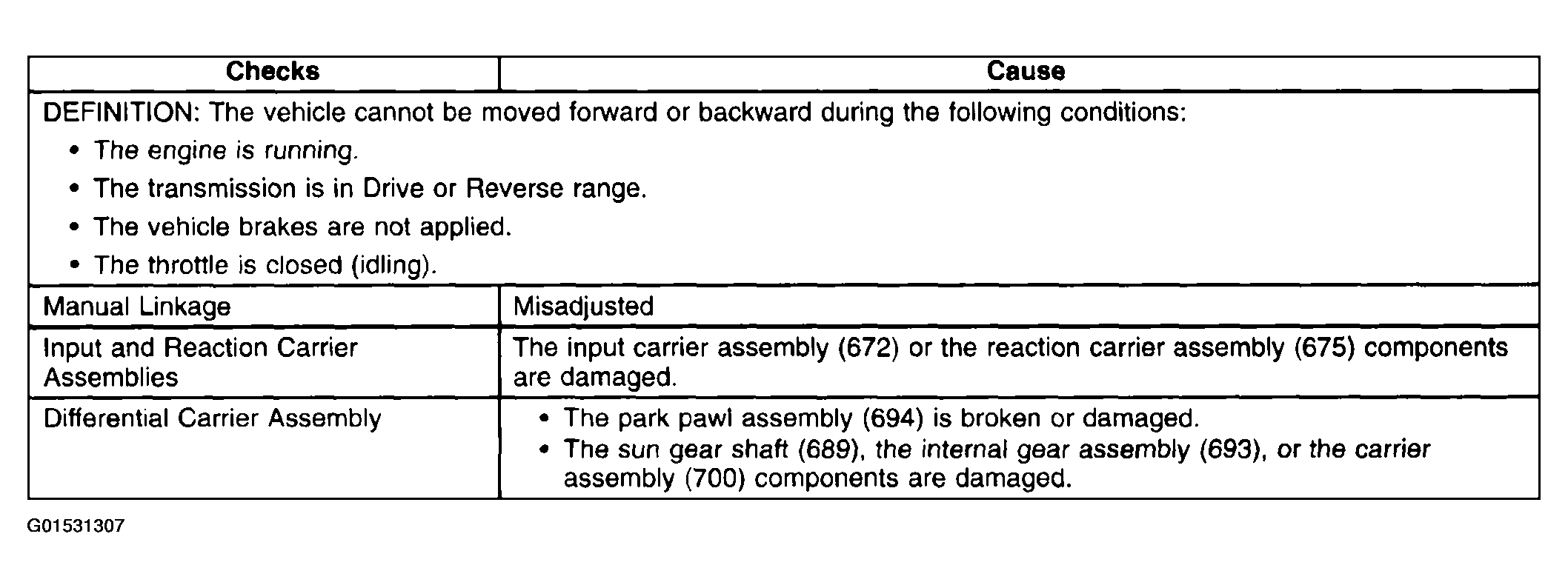

Fig 9: Locked Up in Drive/Reverse
Courtesy of GENERAL MOTORS CORP.

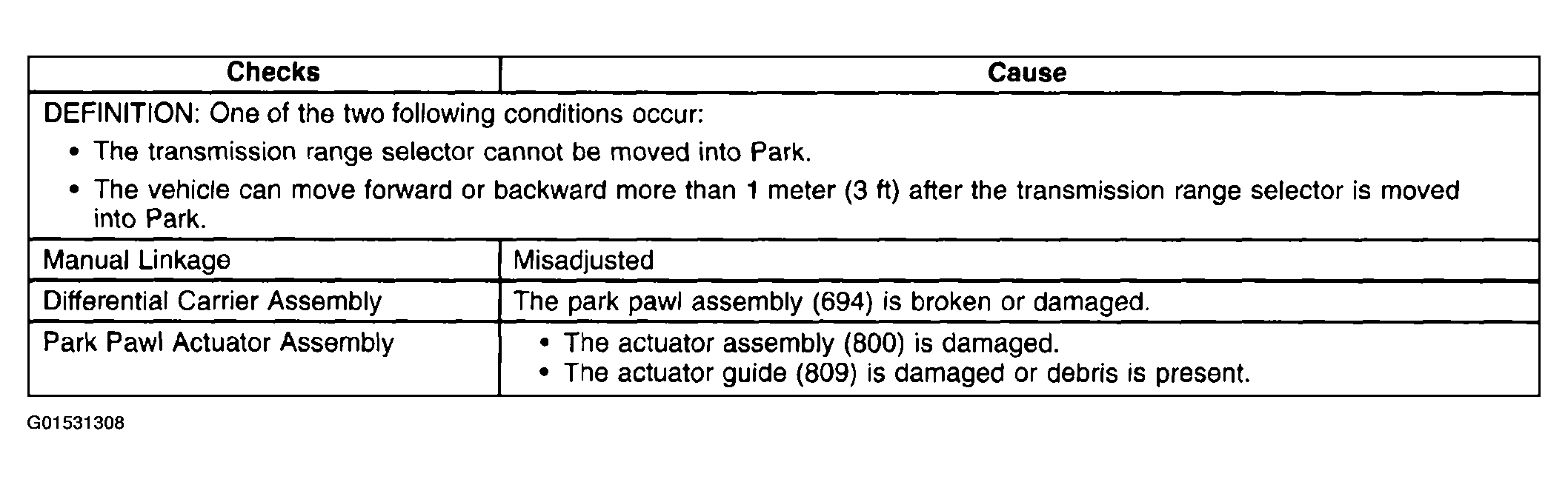

Fig 10: No Park Range
Courtesy of GENERAL MOTORS CORP.

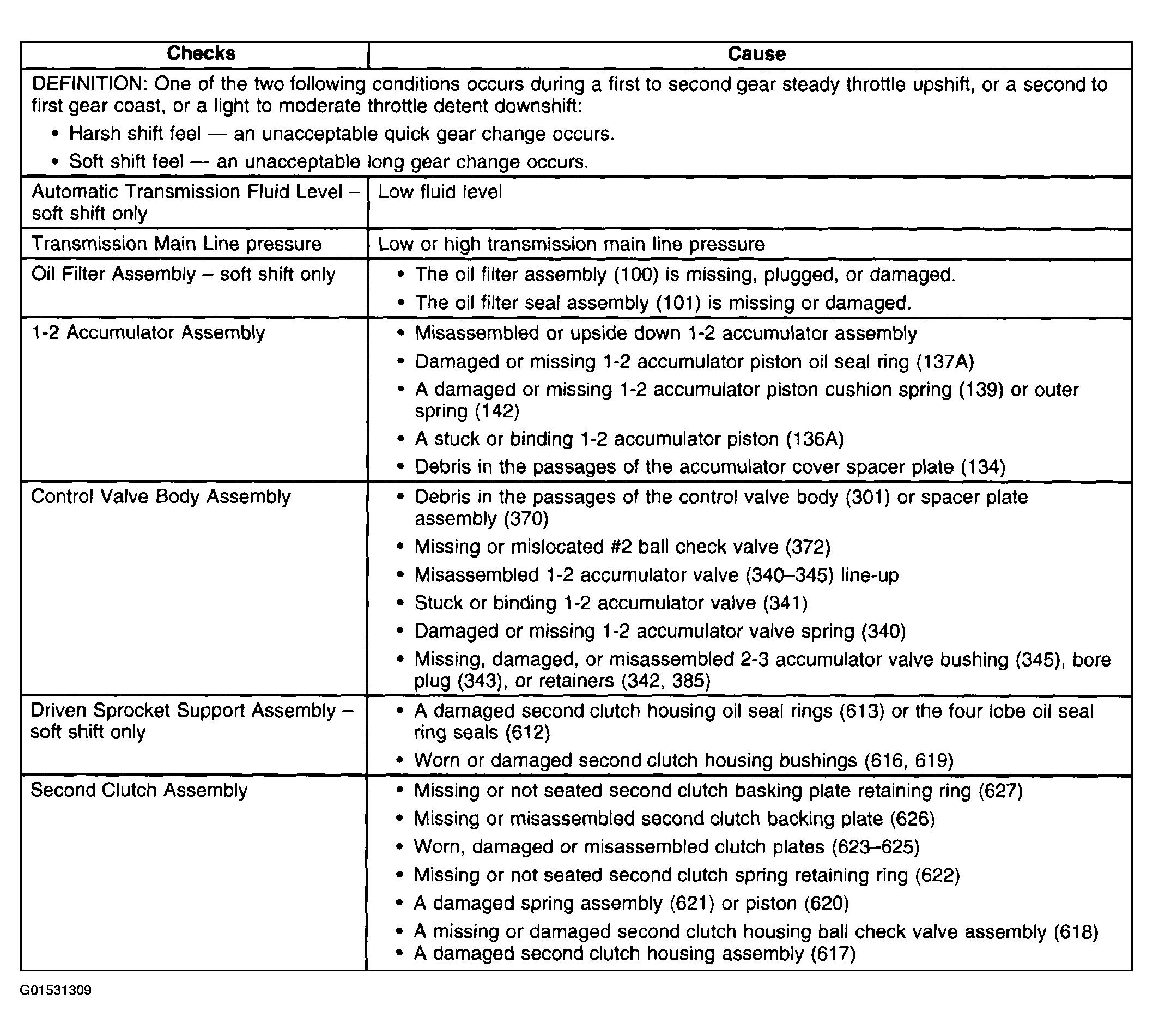

Fig 11: Harsh or Soft 1-2 Shift Feel
Courtesy of GENERAL MOTORS CORP.

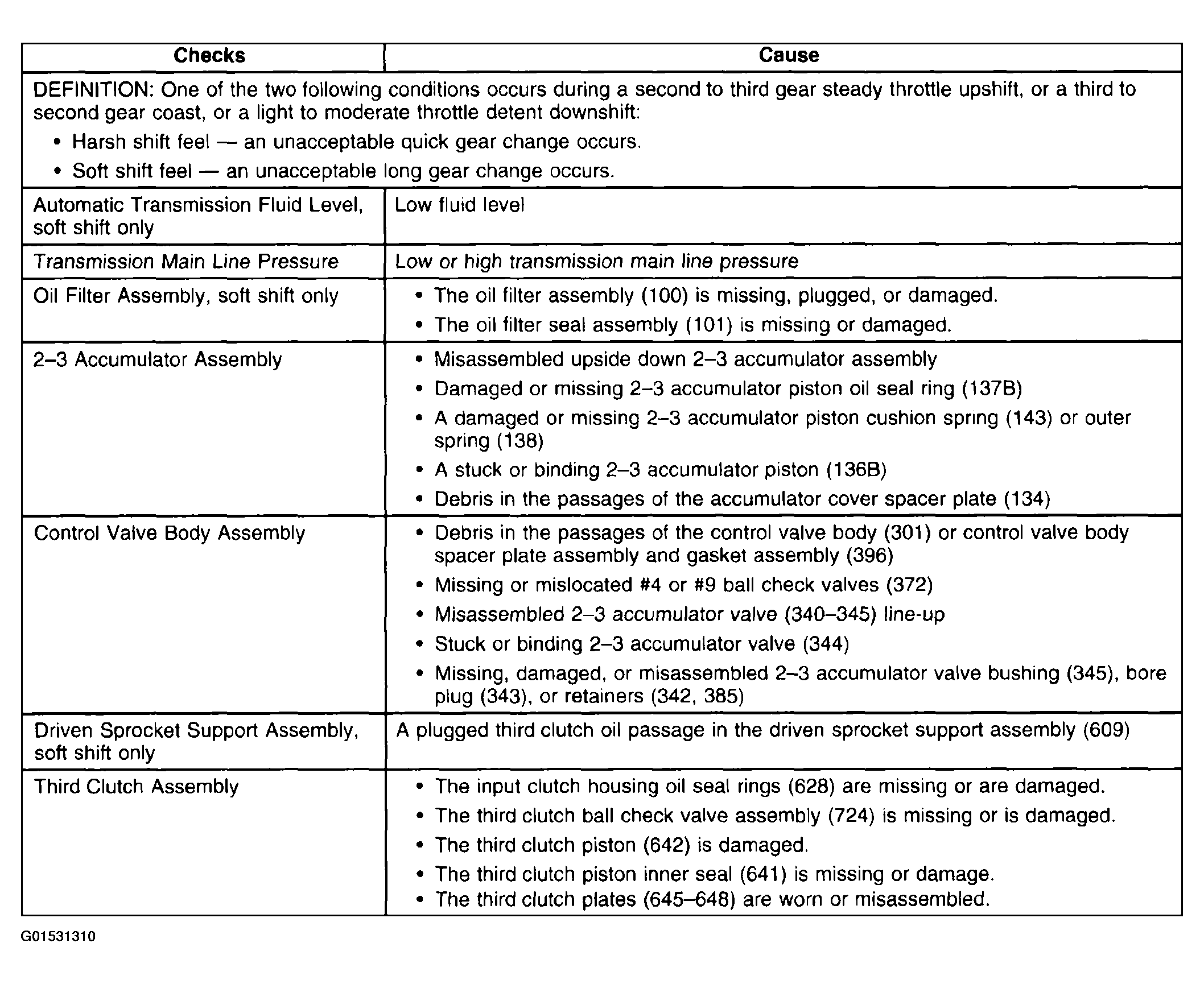

Fig 12: Harsh or Soft 2-3/3-2 Shift Feel
Courtesy of GENERAL MOTORS CORP.

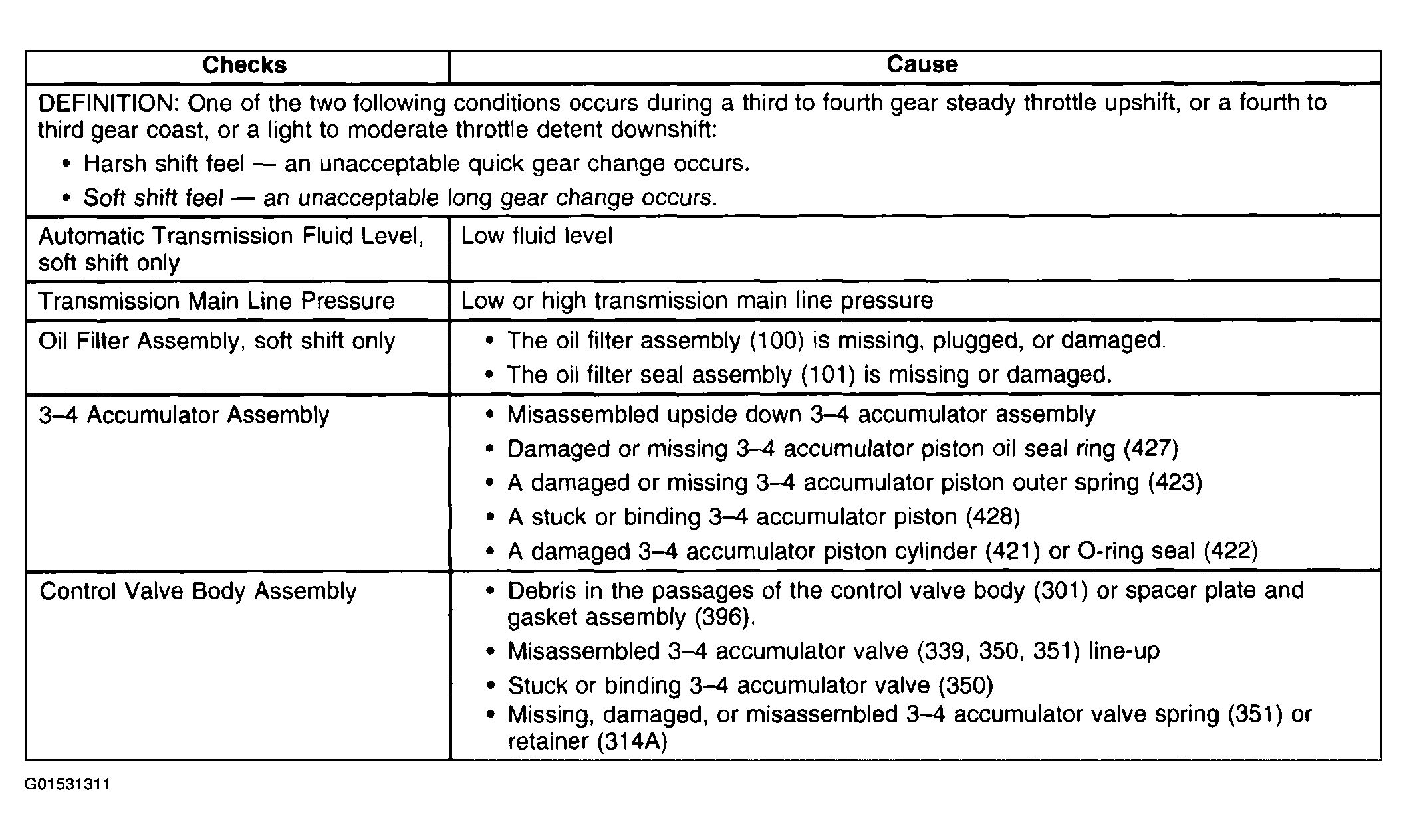

Fig 13: Harsh or Soft 3-4/4-3 Shift Feel (1 of 2)
Courtesy of GENERAL MOTORS CORP.

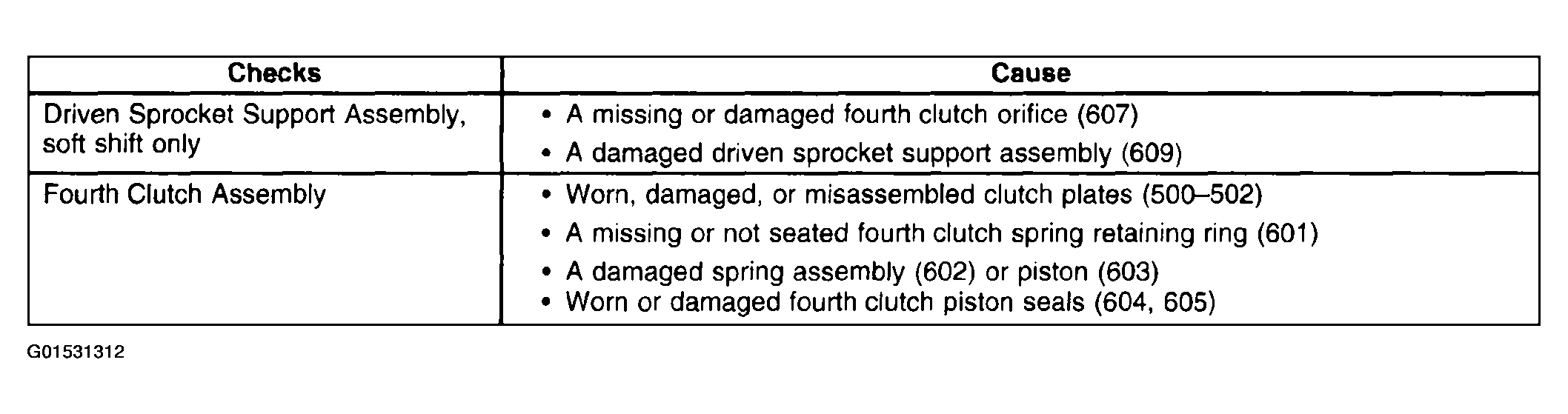

Fig 14: Harsh or Soft 3-4/4-3 Shift Feel (2 of 2)
Courtesy of GENERAL MOTORS CORP.

Fig 15: High or Low Upshift or Downshift Speed
Courtesy of GENERAL MOTORS CORP.

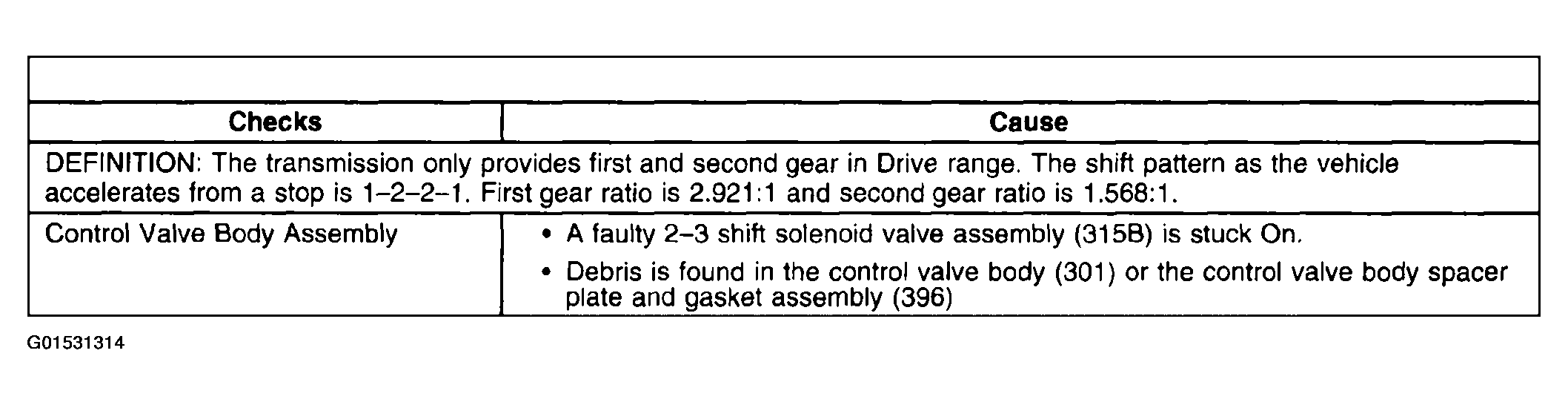

Fig 16: First and Second Gear Only (2-3 Solenoid Stuck On)
Courtesy of GENERAL MOTORS CORP.

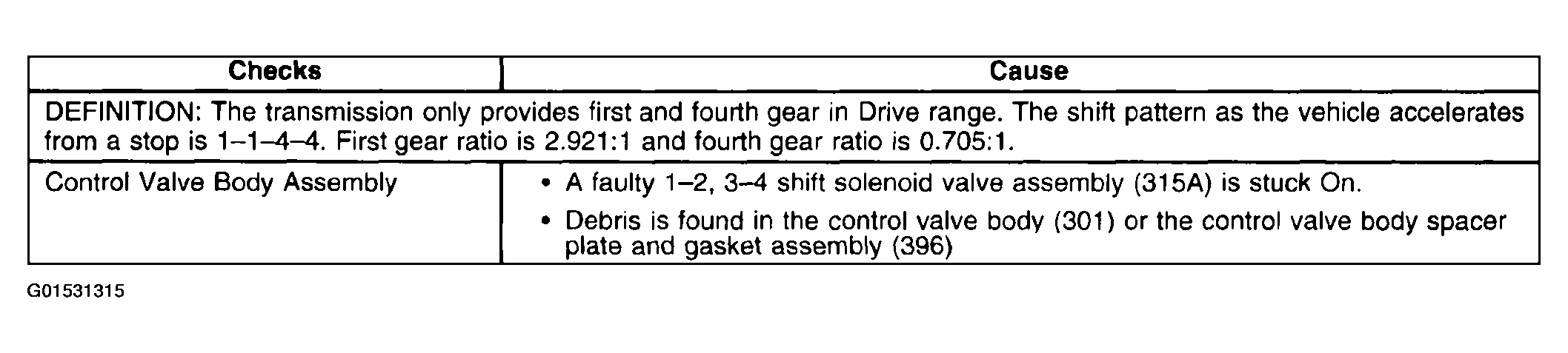

Fig 17: First and Fourth Gear Only (1-2 Solenoid Stuck On)
Courtesy of GENERAL MOTORS CORP.

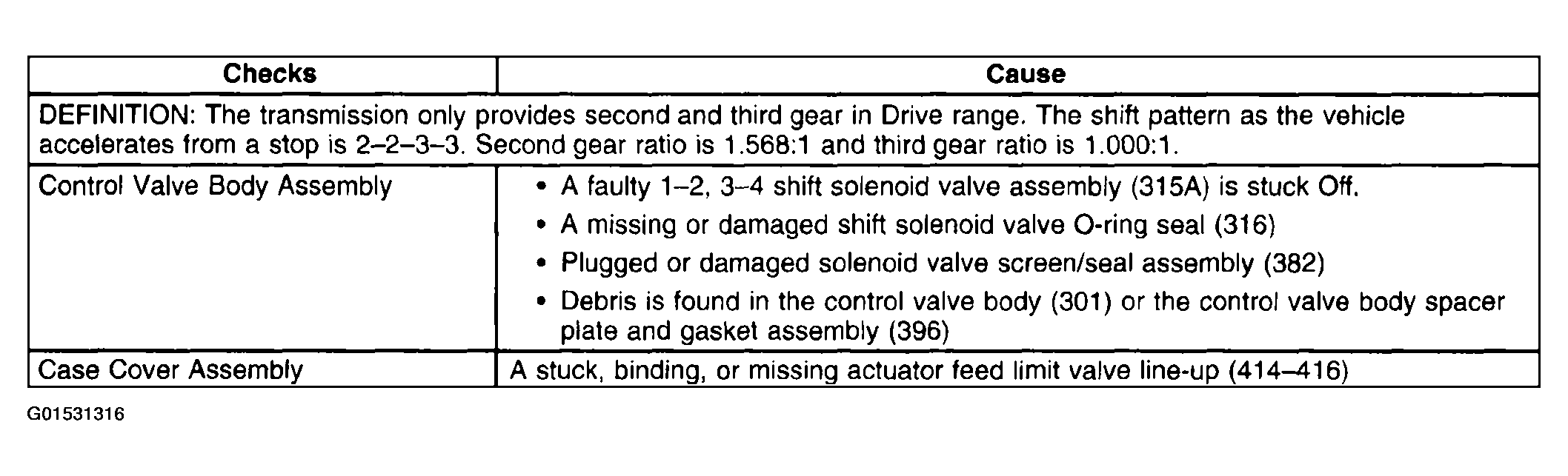

Fig 18: Second and Third Gear Only (1-2 Solenoid Stuck Off)
Courtesy of GENERAL MOTORS CORP.

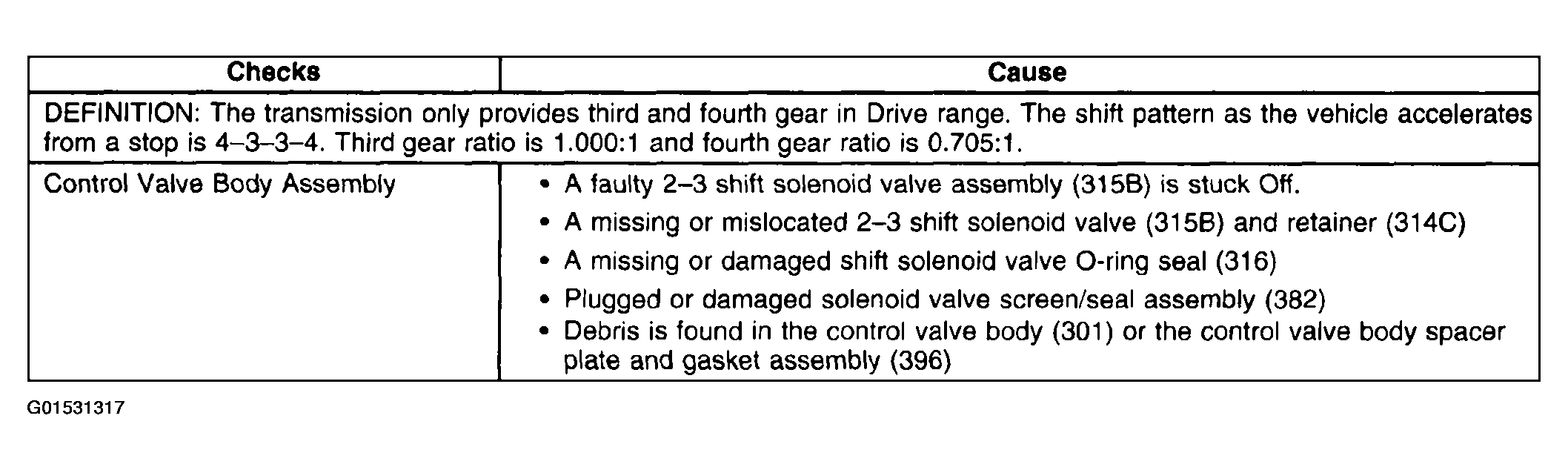

Fig 19: Third and Fourth Gear Only (2-3 Solenoid Stuck Off)
Courtesy of GENERAL MOTORS CORP.

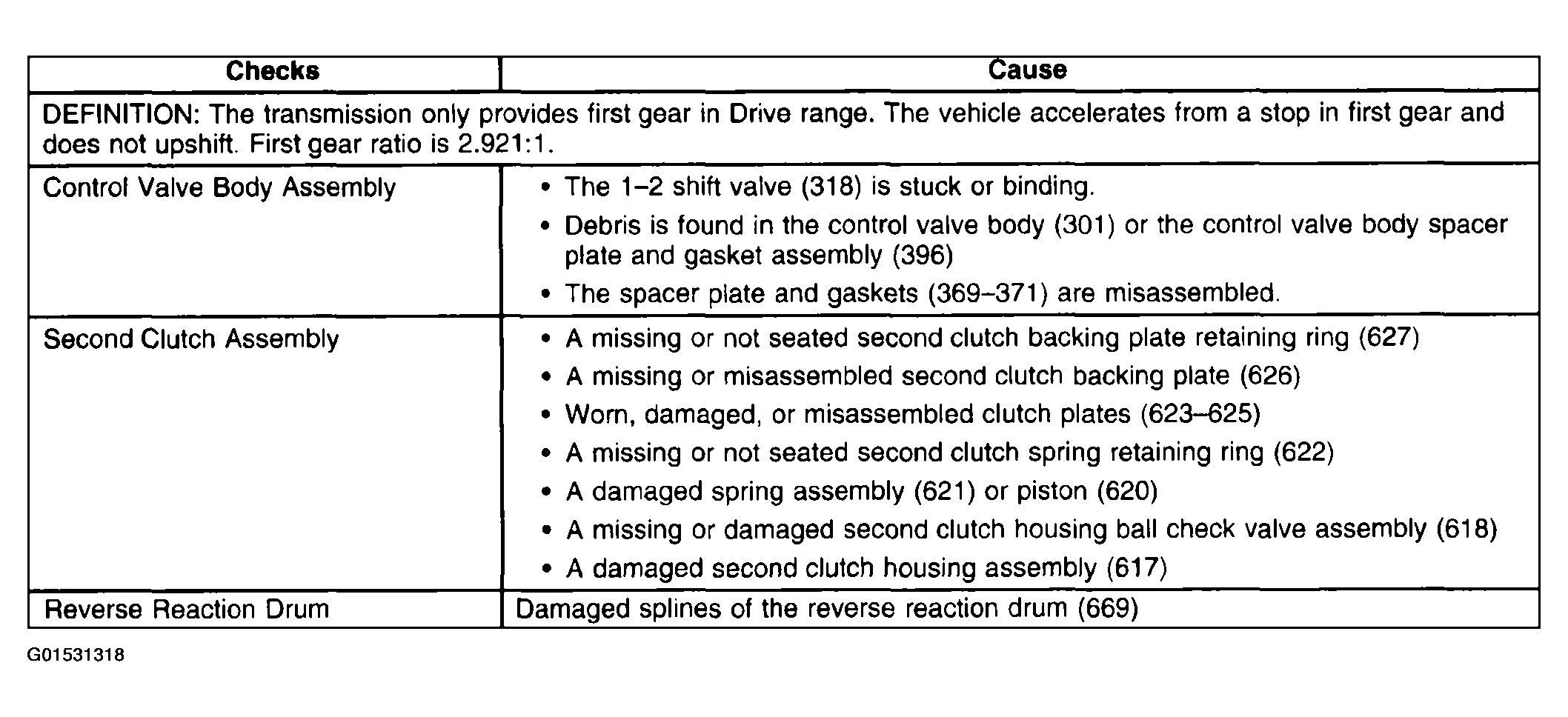

Fig 20: First Gear Only
Courtesy of GENERAL MOTORS CORP.

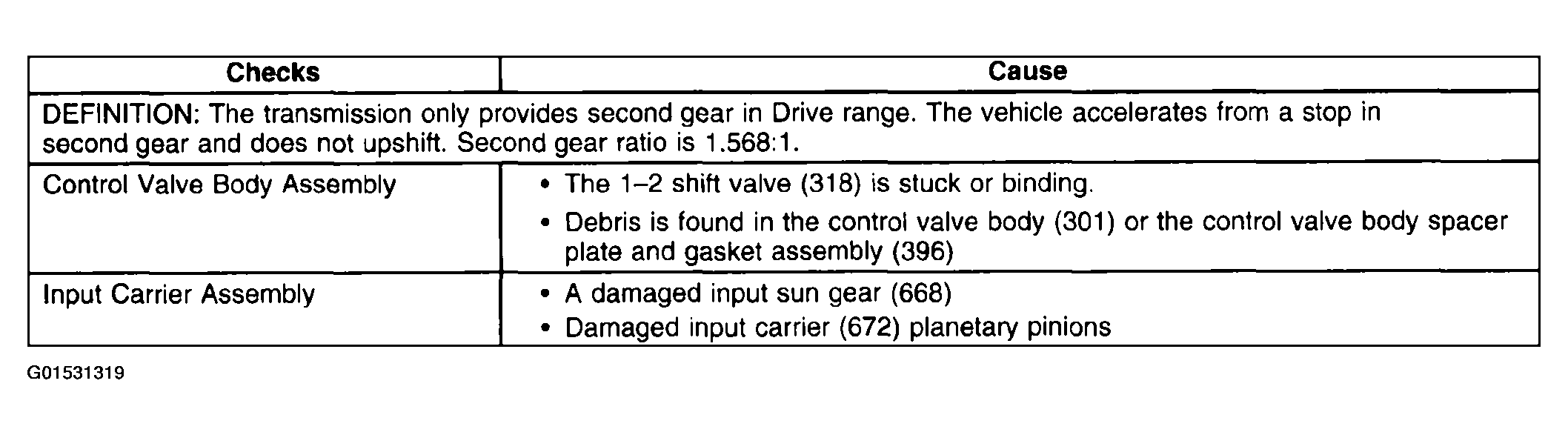

Fig 21: Second Gear Only
Courtesy of GENERAL MOTORS CORP.

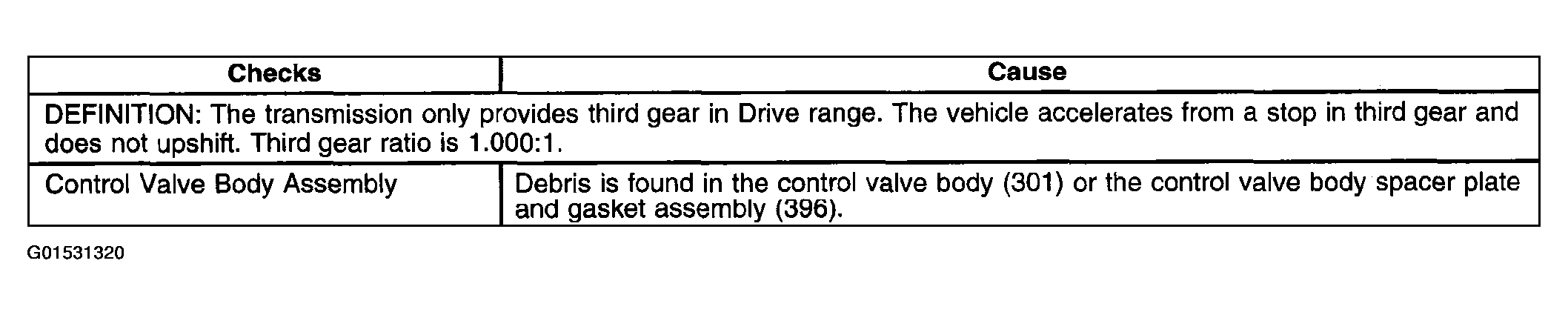

Fig 22: Third Gear Only
Courtesy of GENERAL MOTORS CORP.

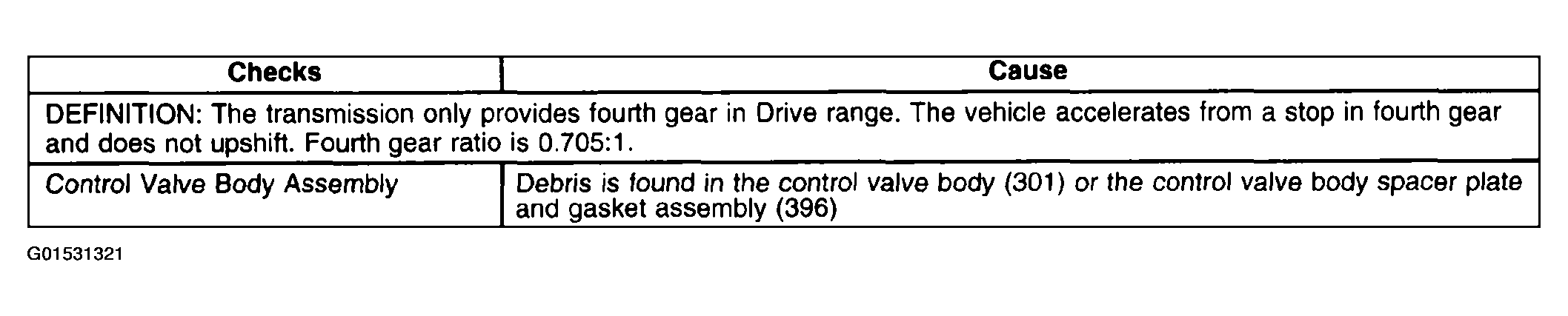

Fig 23: Fourth Gear Only
Courtesy of GENERAL MOTORS CORP.

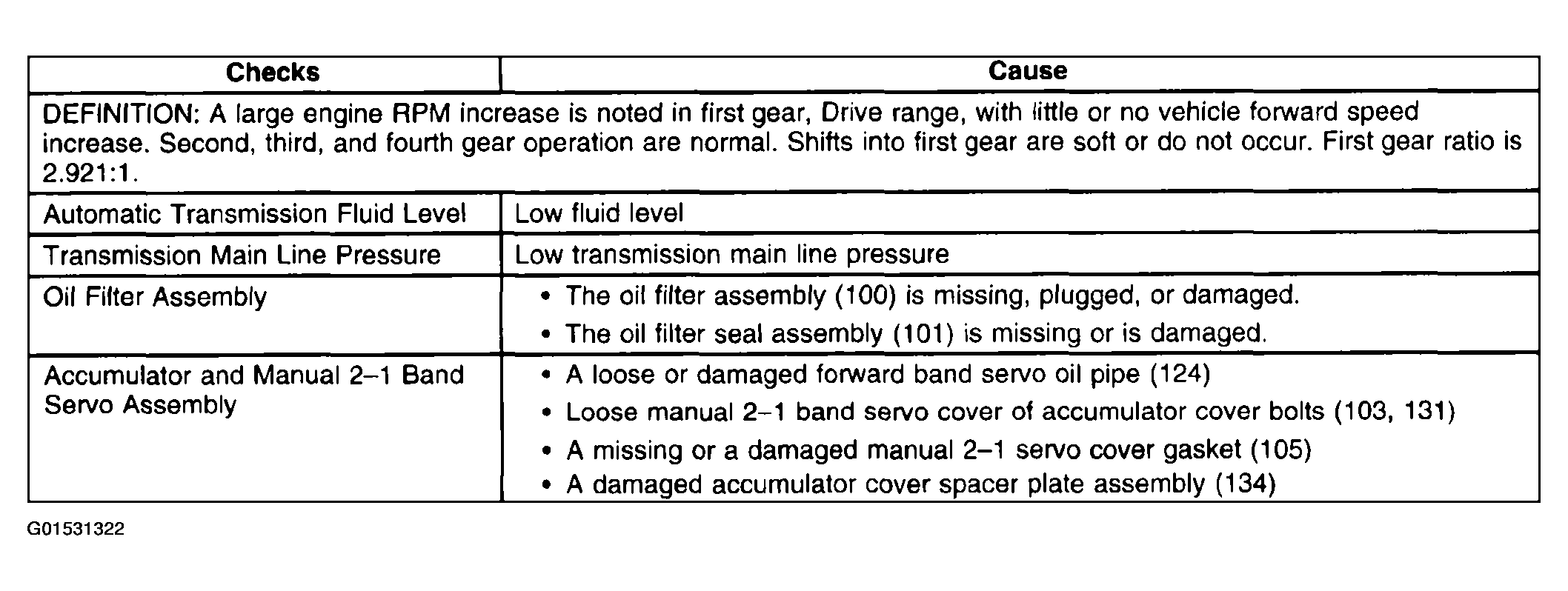

Fig 24: Slipping or No First Gear (1 of 2)
Courtesy of GENERAL MOTORS CORP.

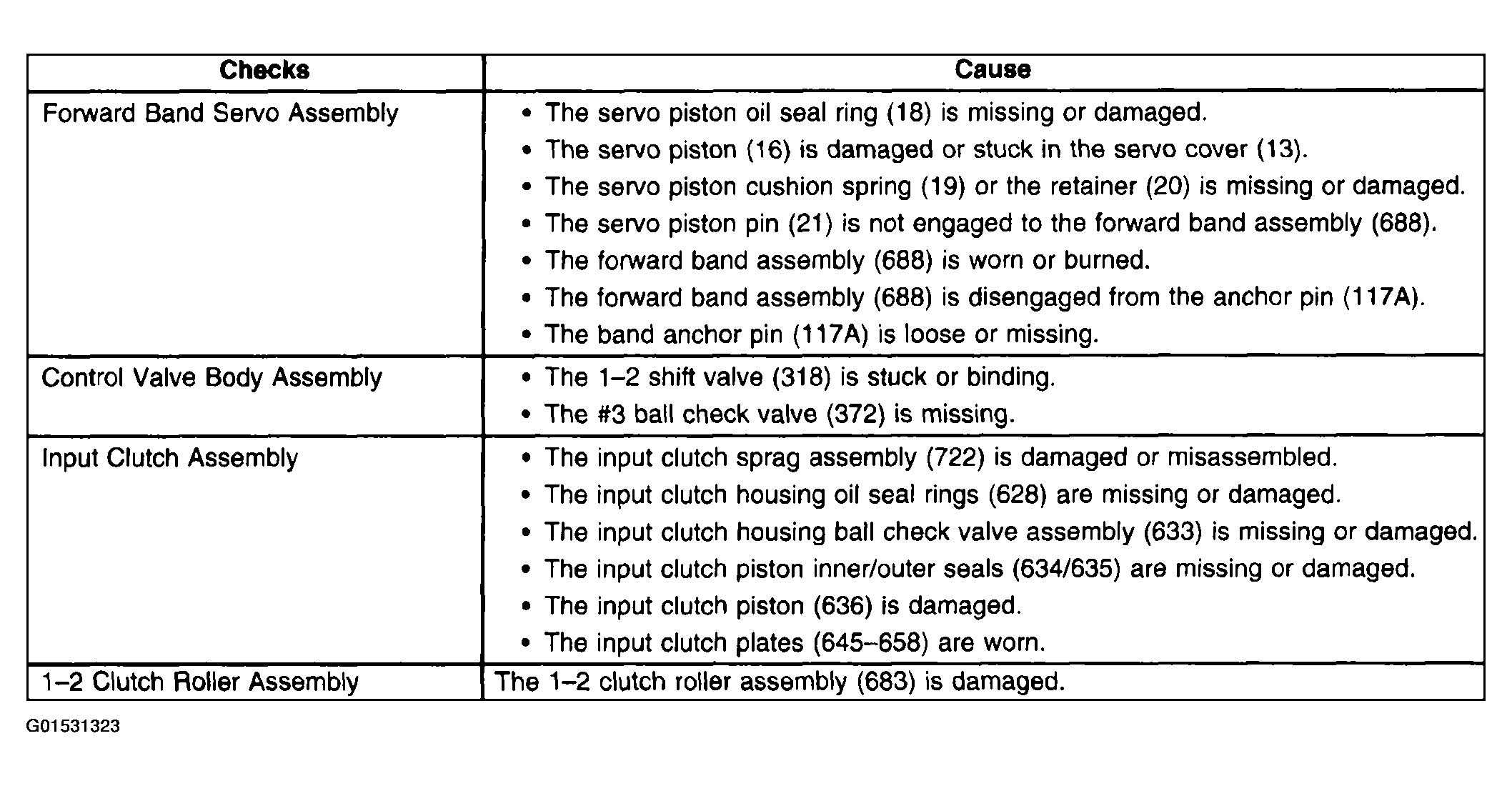

Fig 25: Slipping or No First Gear (2 of 2)
Courtesy of GENERAL MOTORS CORP.

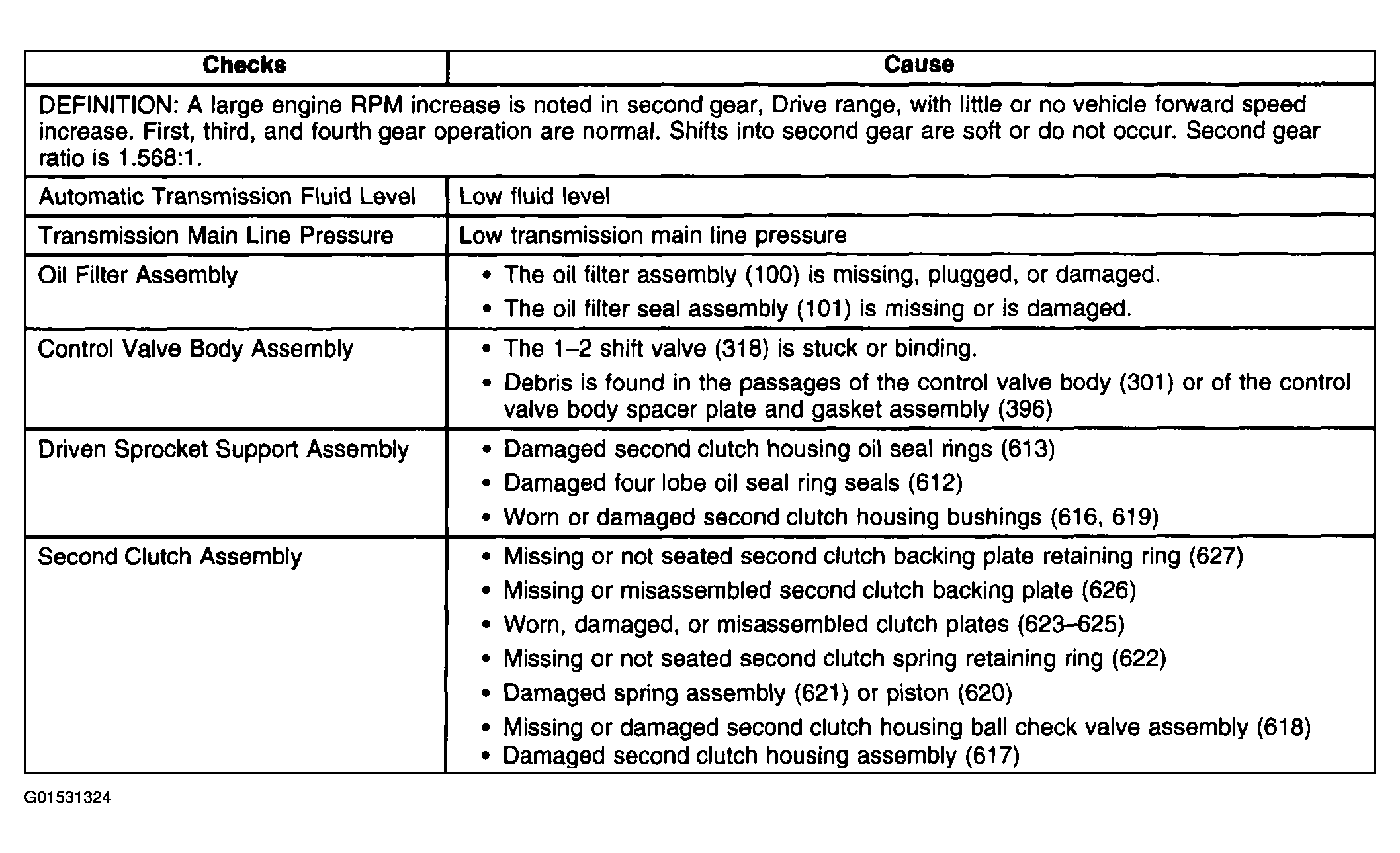

Fig 26: Slipping or No Second Gear
Courtesy of GENERAL MOTORS CORP.

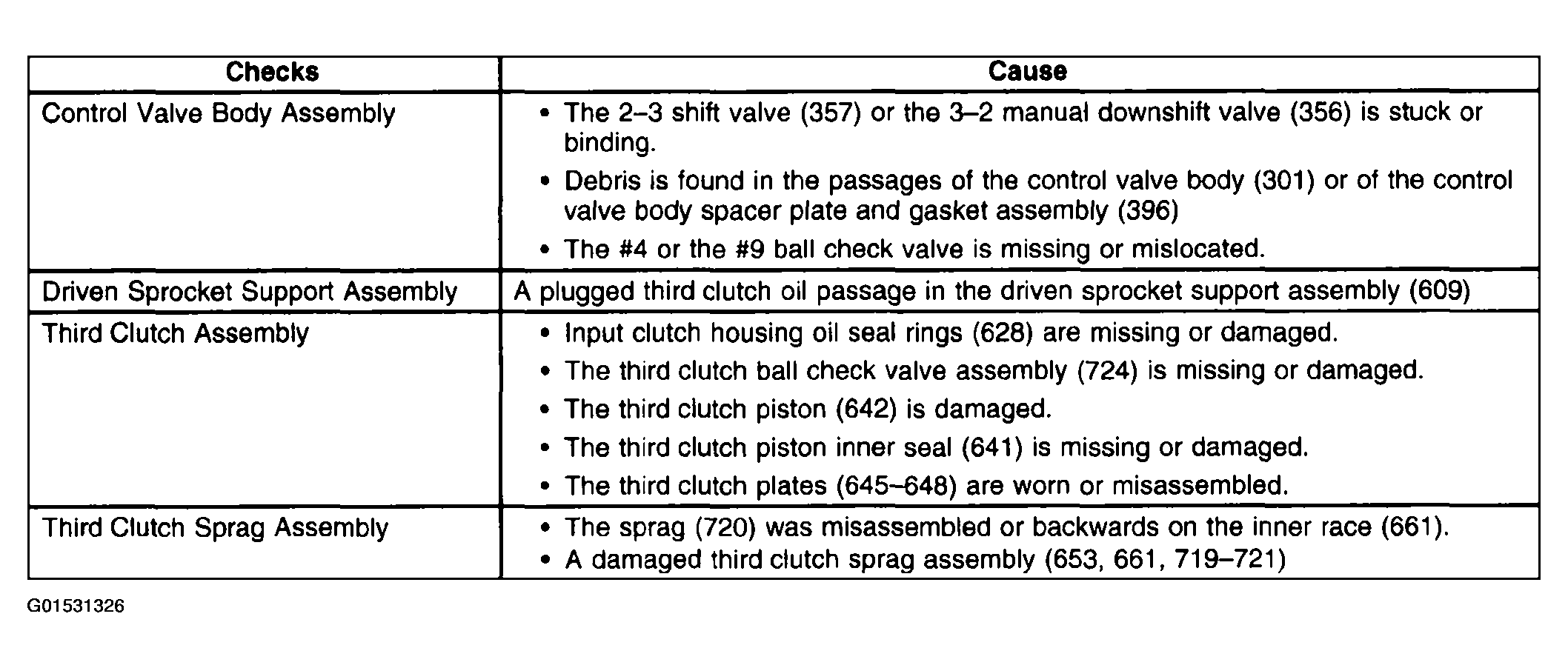

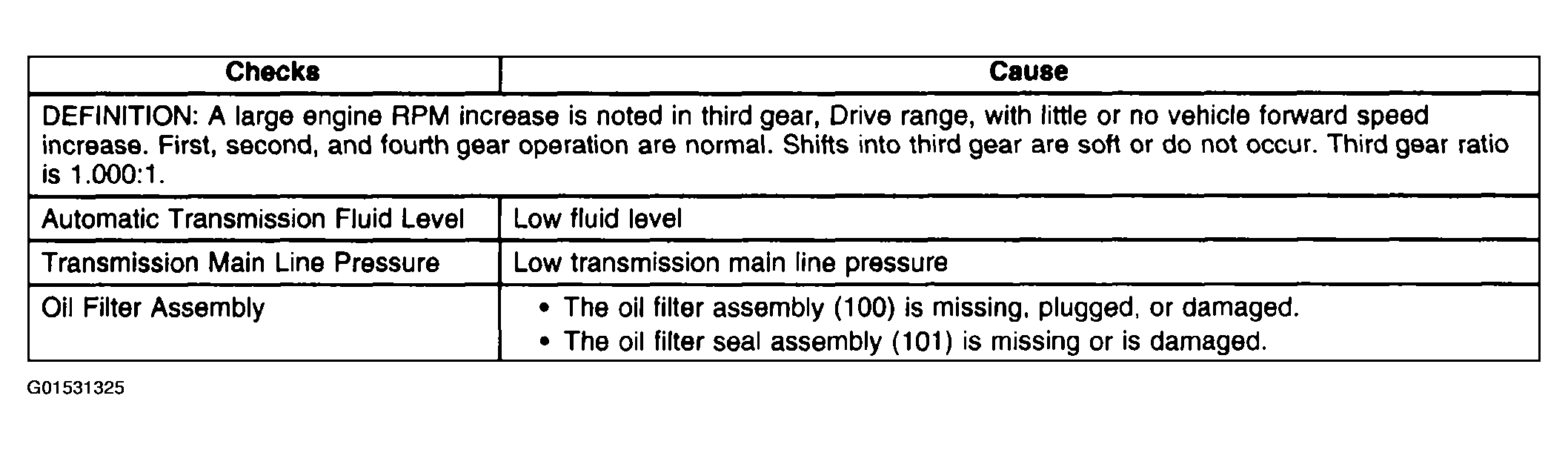

Fig 27: Slipping or No Third Gear (1 of 2)
Courtesy of GENERAL MOTORS CORP.

Fig 28: Slipping or No Third Gear (2 of 2)
Courtesy of GENERAL MOTORS CORP.

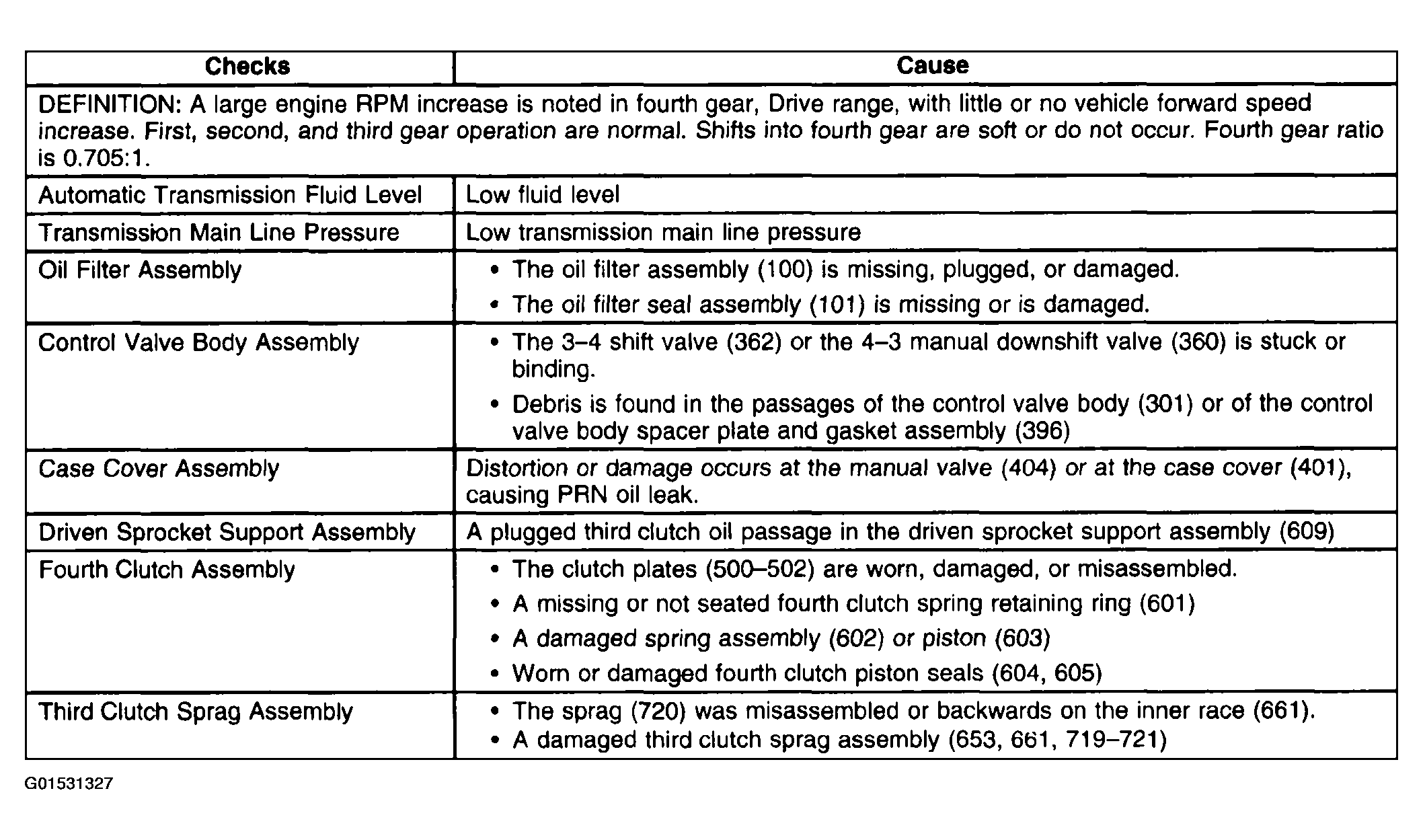

Fig 29: Slipping or No Fourth Gear
Courtesy of GENERAL MOTORS CORP.

Fig 30: No Engine Braking in Manual Second or Low Range
Courtesy of GENERAL MOTORS CORP.

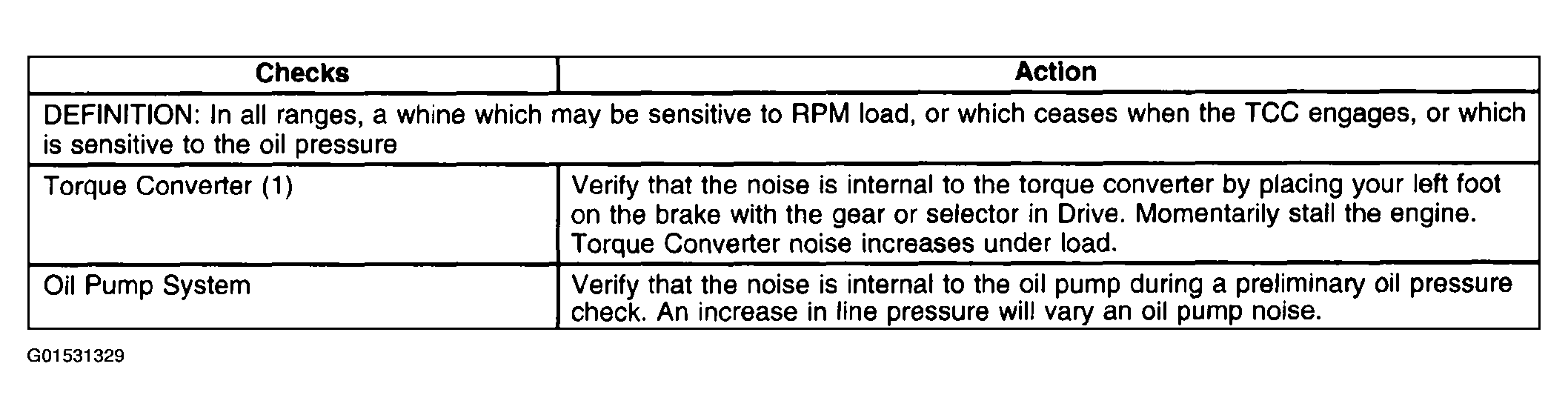

Fig 31: Whine Noise Varying with RPM or Fluid Pressure
Courtesy of GENERAL MOTORS CORP.

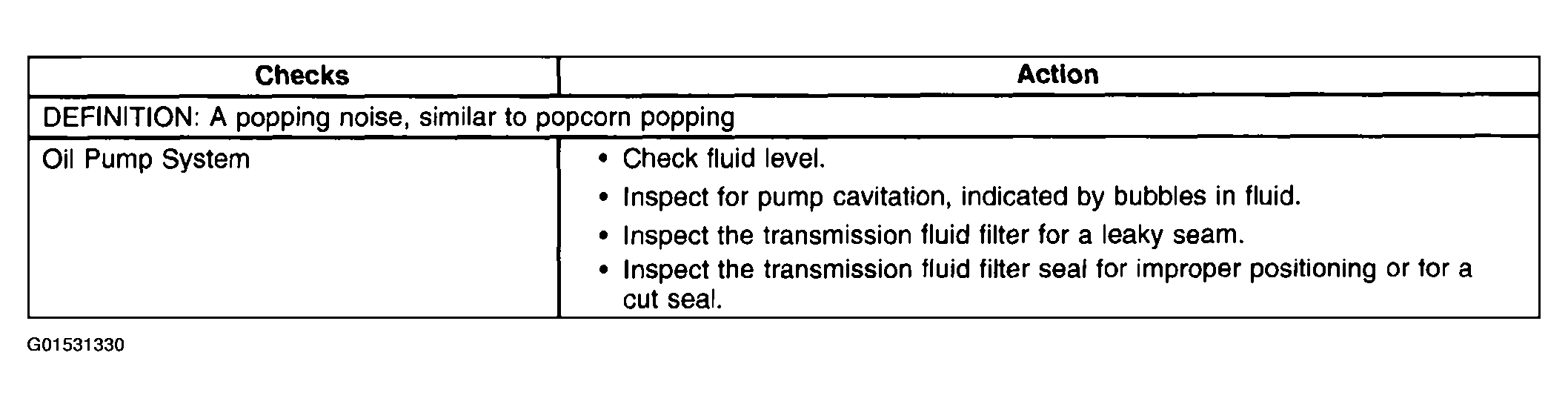

Fig 32: Popping Noise
Courtesy of GENERAL MOTORS CORP.

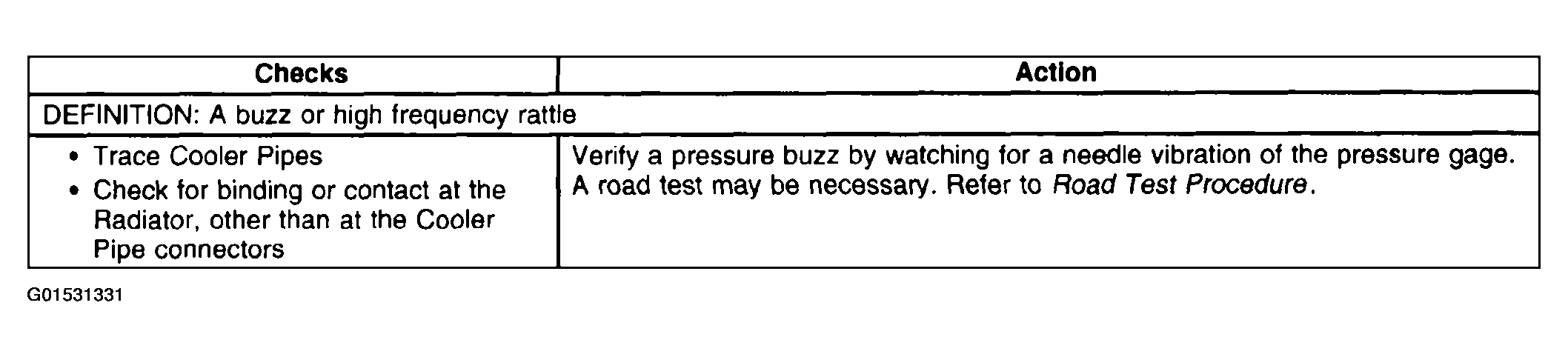

Fig 33: Buzz Noise or High Frequency Rattle Sound
Courtesy of GENERAL MOTORS CORP.

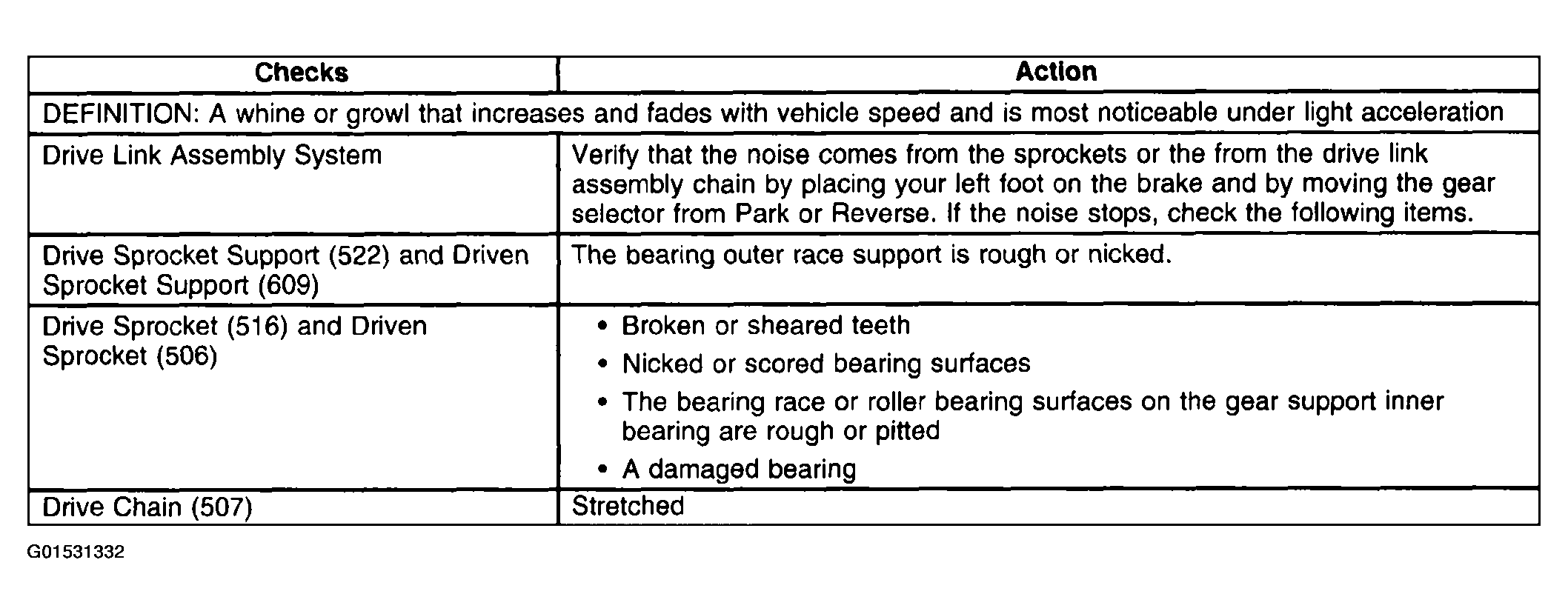

Fig 34: Whine/Growl Noise That Changes with Vehicle Speed
Courtesy of GENERAL MOTORS CORP.

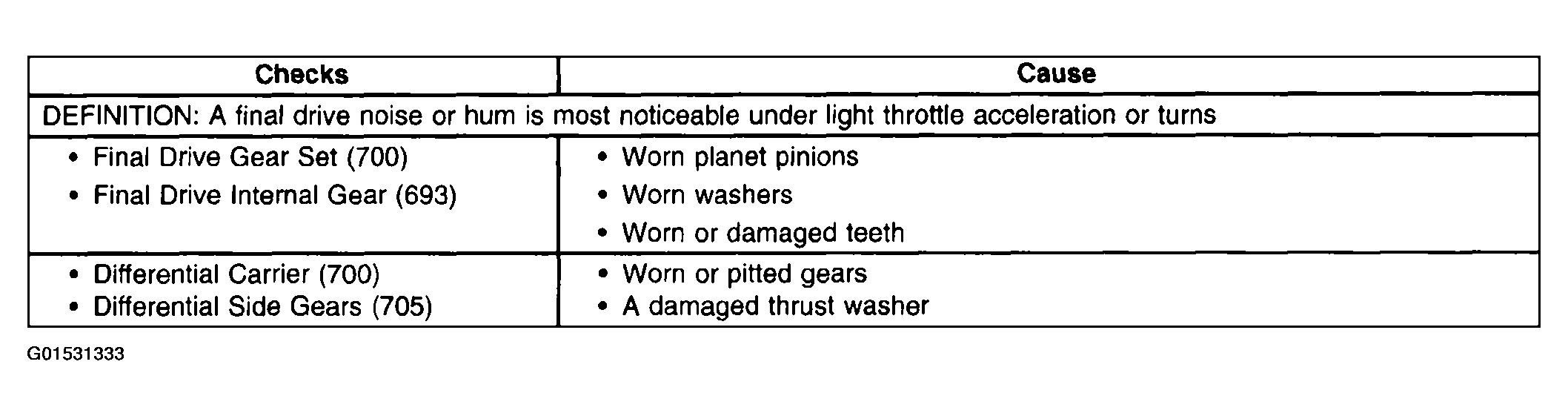

Fig 35: Final Drive Noise or Hum Noise
Courtesy of GENERAL MOTORS CORP.

Fig 36: Noise in First, Second, Third, or Fourth
Courtesy of GENERAL MOTORS CORP.

Fig 37: Noise in Random Ranges
Courtesy of GENERAL MOTORS CORP.

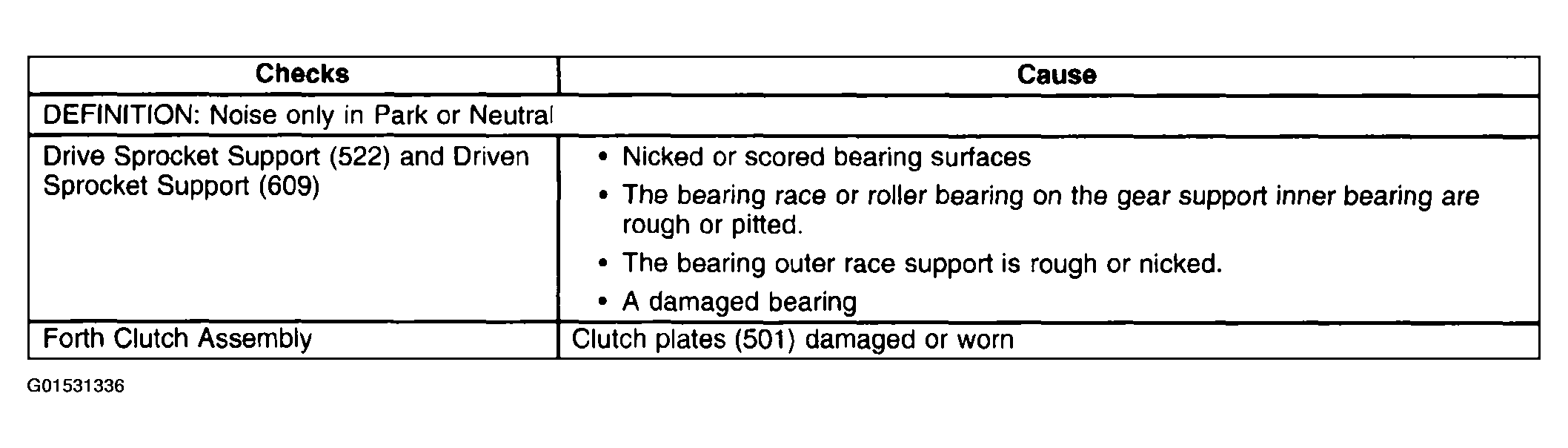

Fig 38: Abnormal Noise in Park or Neutral Range
Courtesy of GENERAL MOTORS CORP.

Fig 39: Converter Clutch Stuck On in All Gears
Courtesy of GENERAL MOTORS CORP.

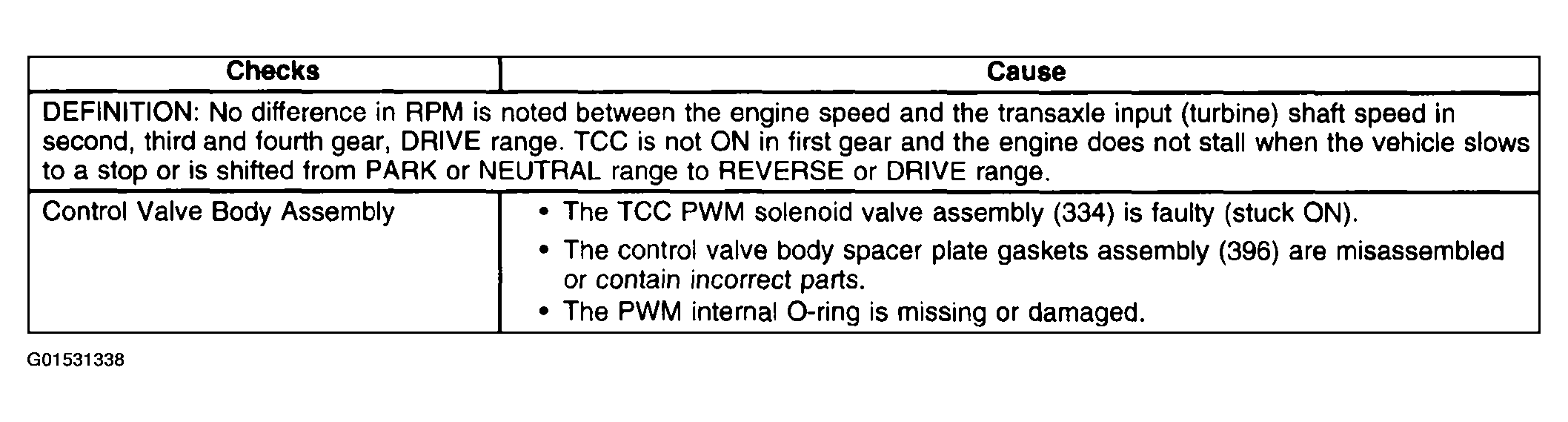

Fig 40: Converter Clutch Stuck On in Second, Third and Fourth Gear
Courtesy of GENERAL MOTORS CORP.

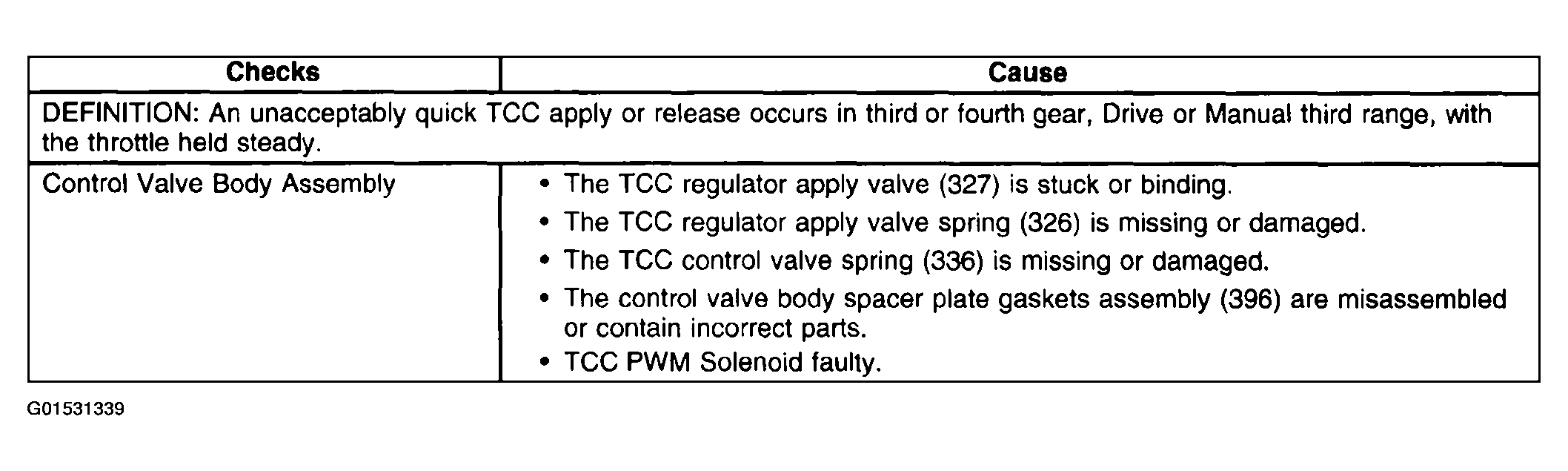

Fig 41: Harsh Torque Converter Clutch (TCC) Apply or Release
Courtesy of GENERAL MOTORS CORP.

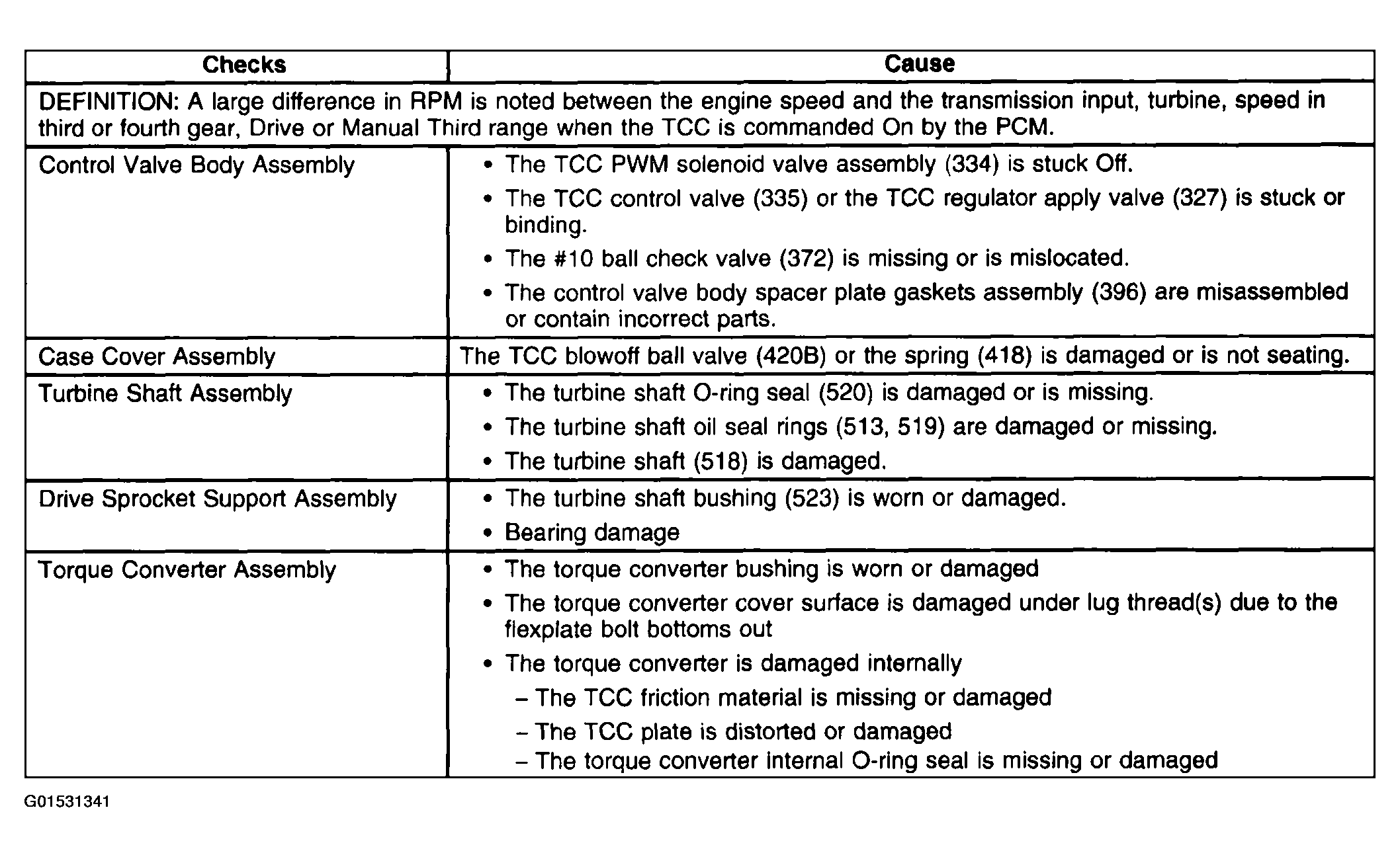

Fig 42: Converter Clutch Apply Rough, Slips, or Shudders
Courtesy of GENERAL MOTORS CORP.

Fig 43: No Torque Converter Clutch (TCC) Apply
Courtesy of GENERAL MOTORS CORP.
