Test Description

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

The number below refers to the step number on the diagnostic table.

5. This step isolates the fault between the TCC brake switch and the harness.

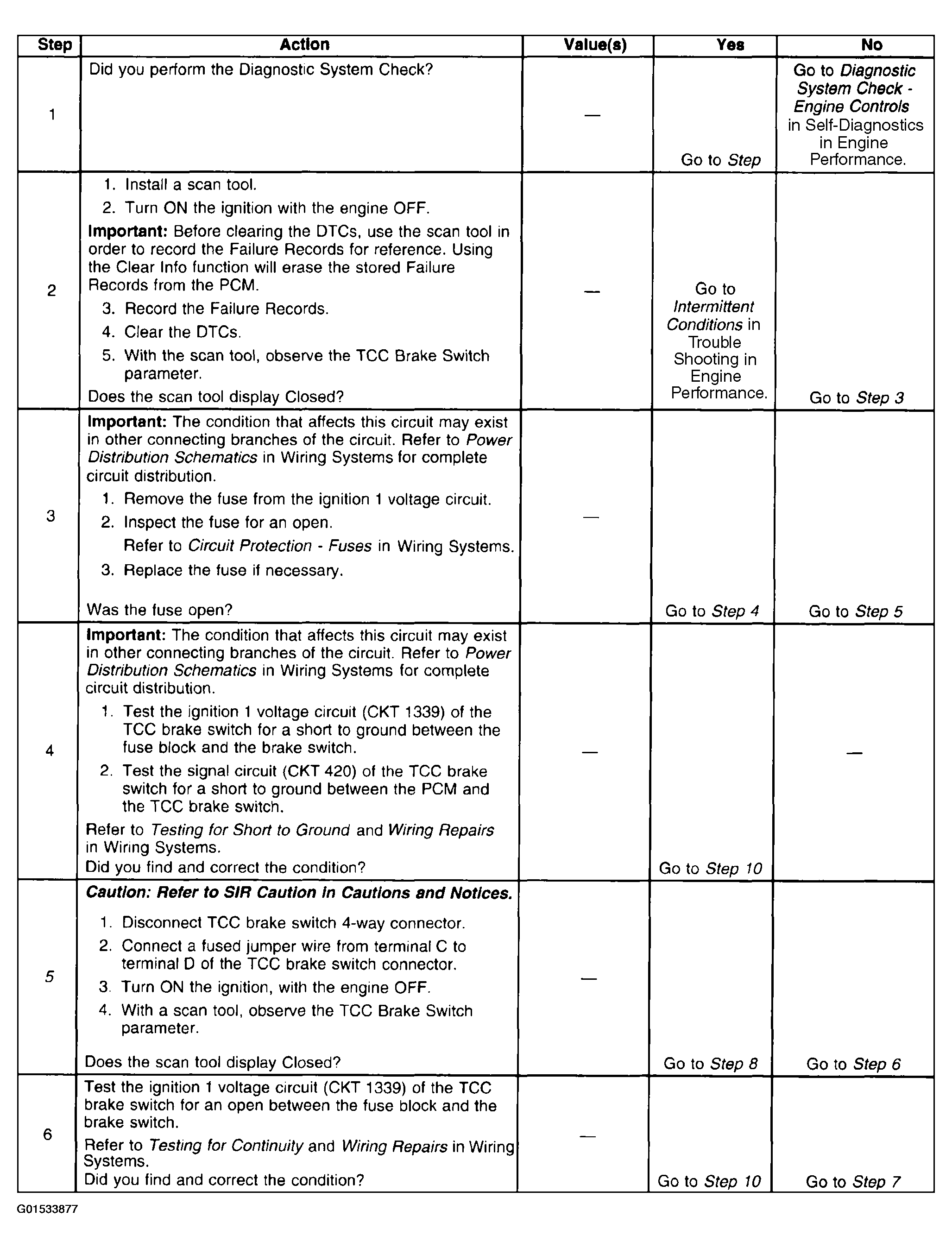

Fig 1: DTC P0719 (1 of 2)
G01533877Courtesy of GENERAL MOTORS CORP.

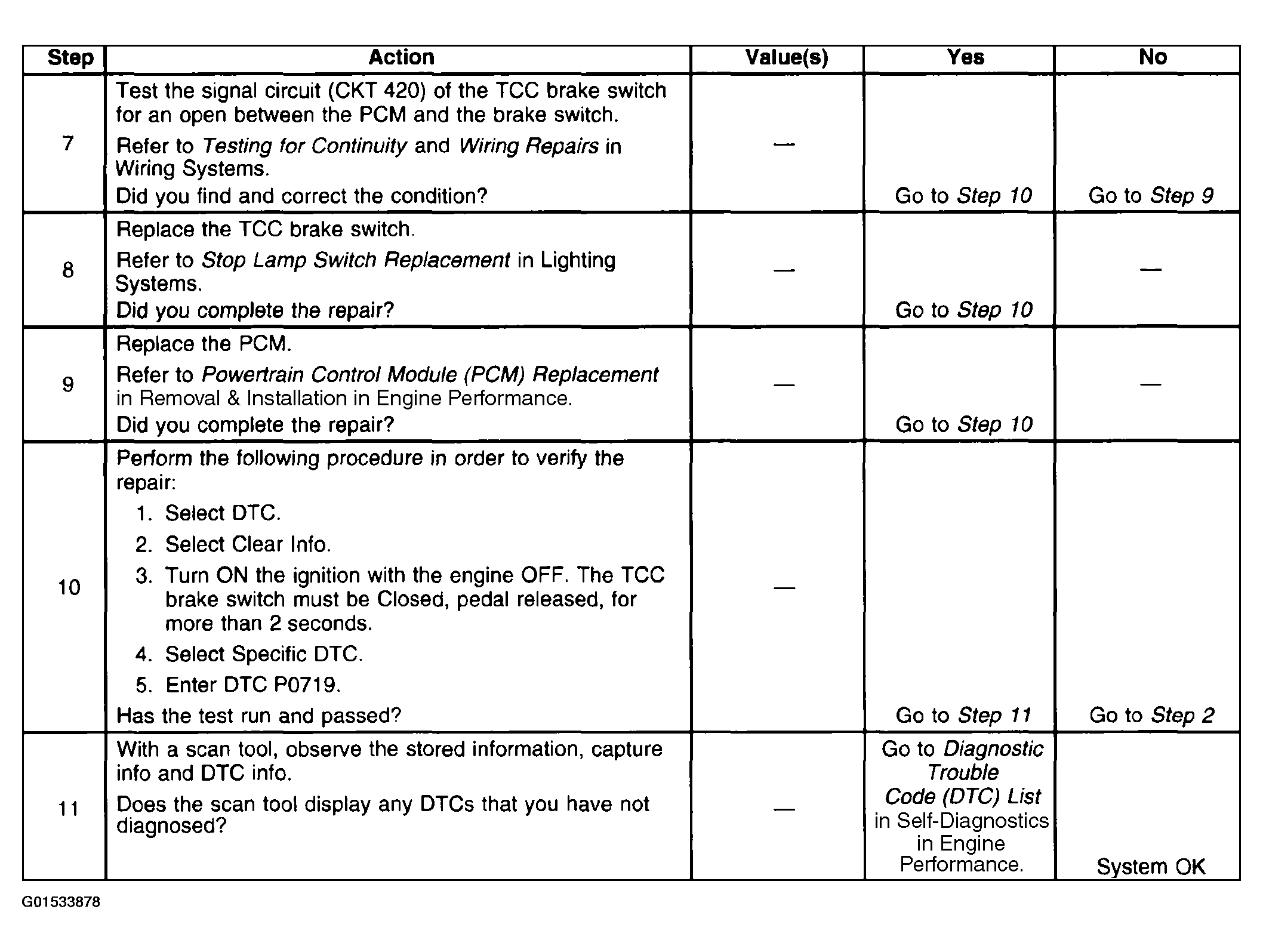

Fig 2: DTC P0719 (2 of 2)
G01533878Courtesy of GENERAL MOTORS CORP.
