Test Description
WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

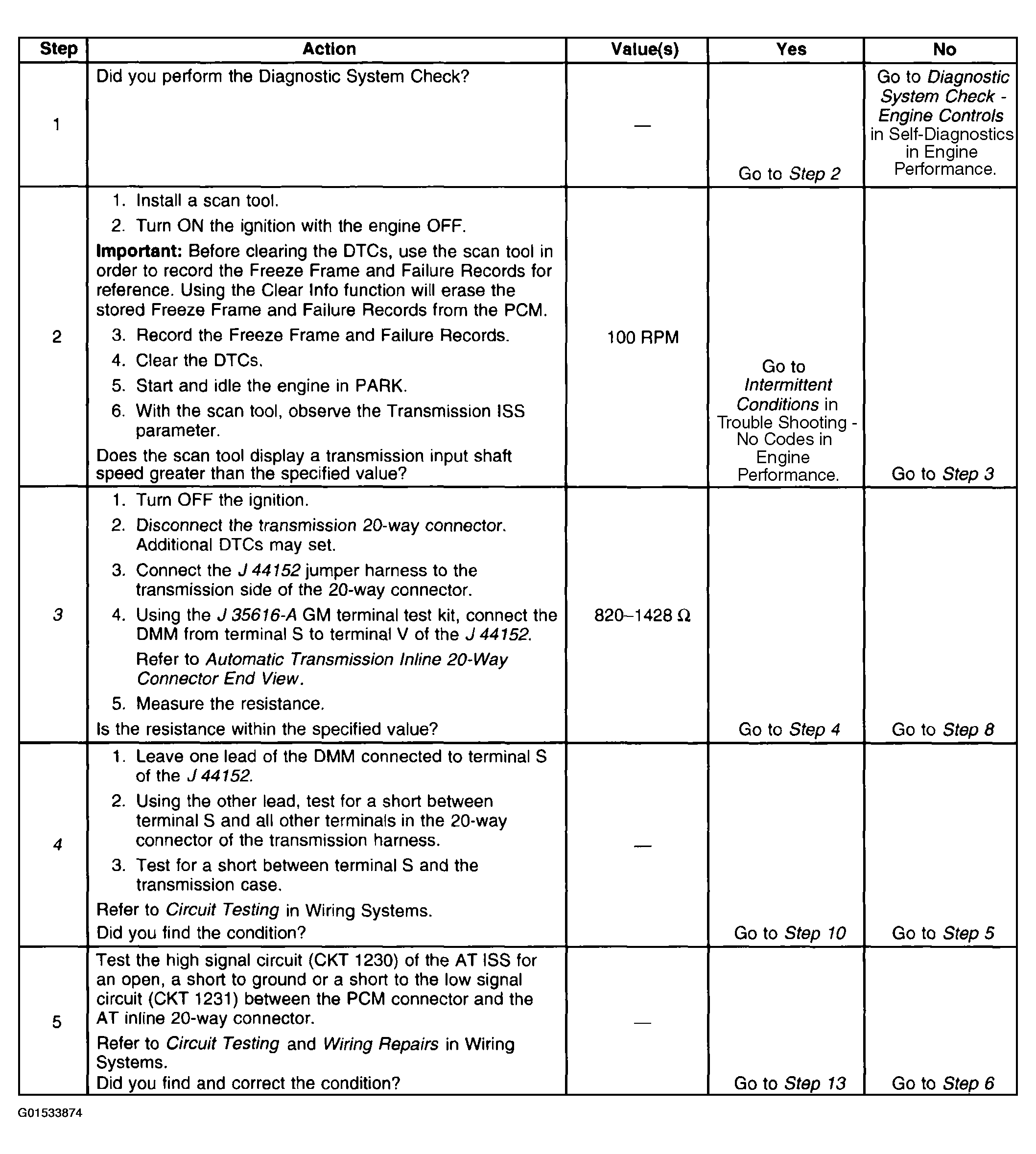

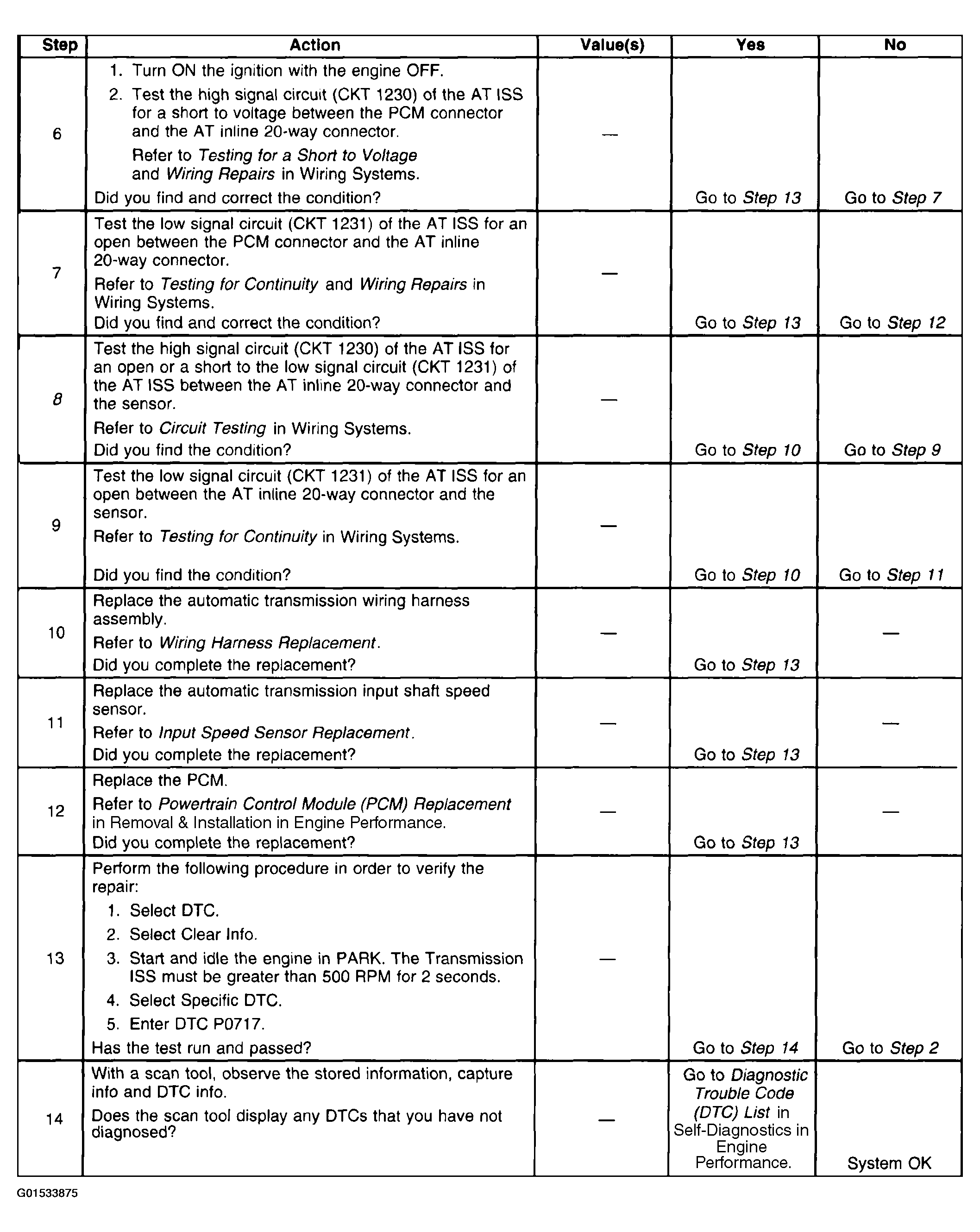

The numbers below refer to the step numbers on the diagnostic table.
A Yes answer indicates that the transmission side of the circuit is functioning properly.
Although the resistance is within specification in Step 3, thee may be a short to ground or a short a voltage condition.
This step begins the transmission harness diagnosis.
