Test Description

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the sep numbers on the diagnostic table.

3. A value of 4.9-5.0 volts indicates the PCM and engine side of the wiring are good.

6. A short to voltage greater than 5 volts would cause the TFT sensor to open.

9. A short to the TFT sensor signal circuit and any other circuits in the transmission harness could cause the TFT sensor to open.

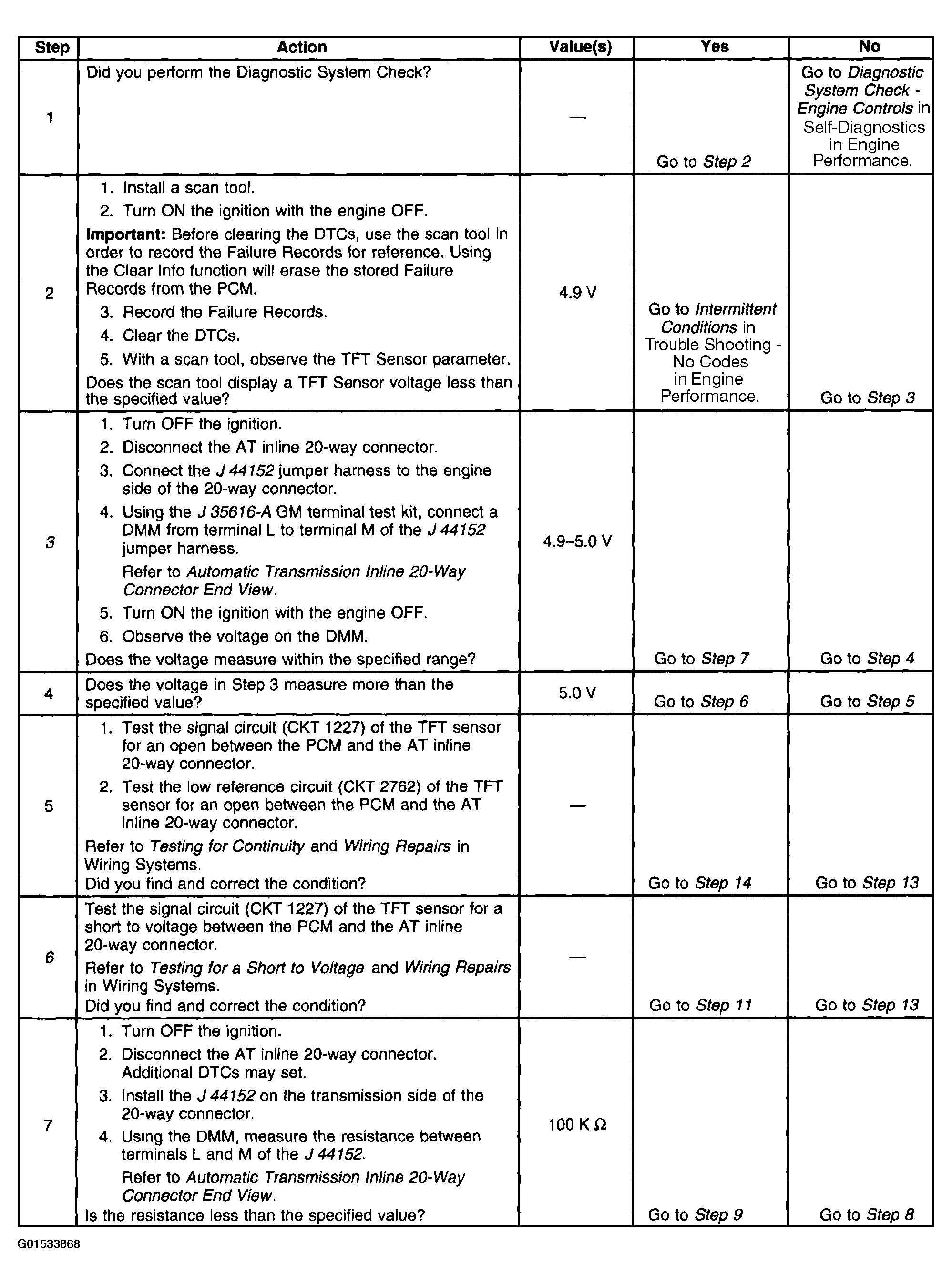

Fig 1: DTC P0713 (1 of 2)
G01533868Courtesy of GENERAL MOTORS CORP.

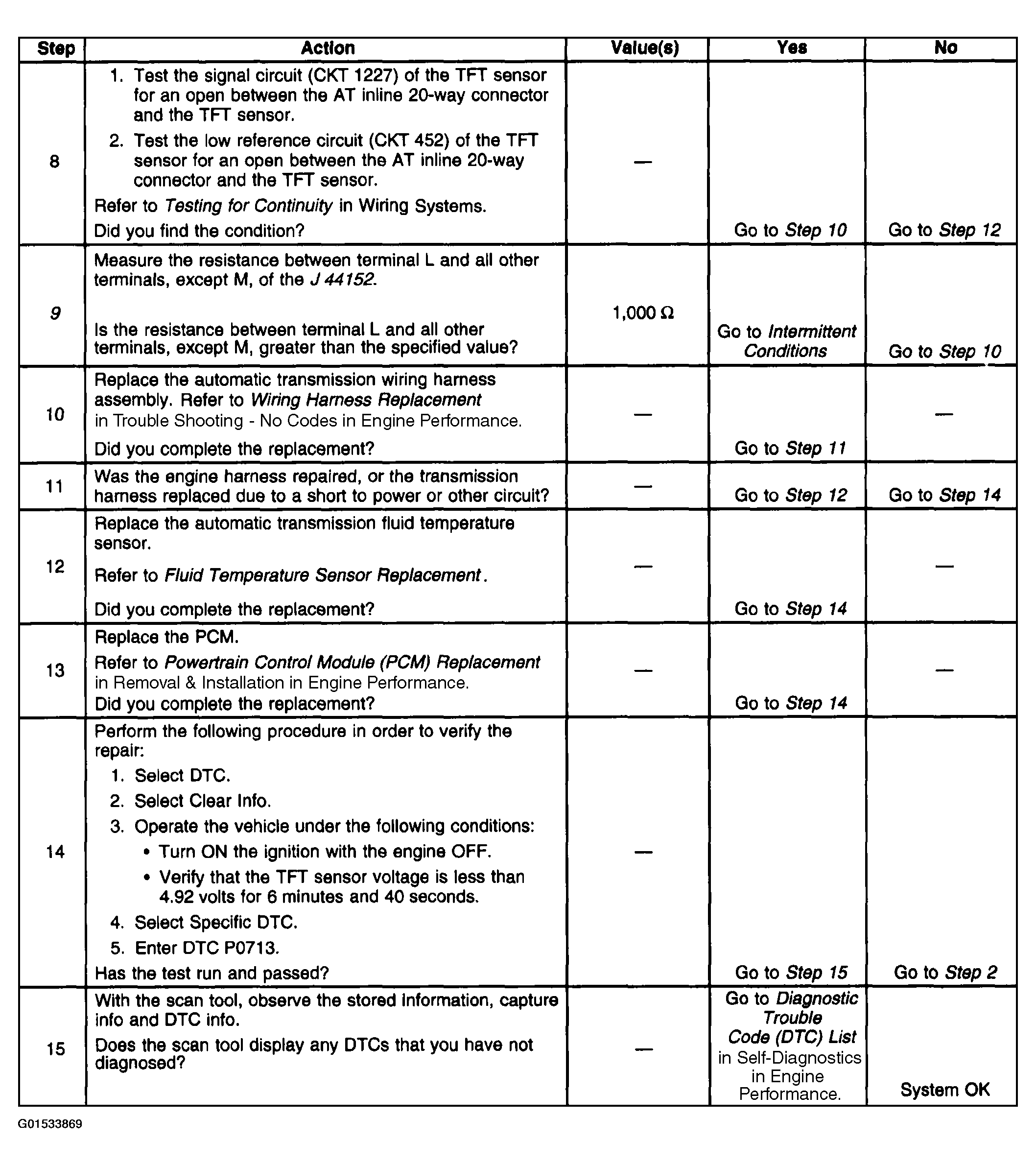

Fig 2: DTC P0713 (2 of 2)
G01533869Courtesy of GENERAL MOTORS CORP.
